FANUC: SERIAL 7TH/8TH AXIS PCB FOR ZERO C CONTROL

Home > Spare Parts Stock > Used >

Alternate View

Refurbished
Core Exchange: Option

Repair: Not offering at this time
All our refurbished and repaired FANUC CNC products are thoroughly inspected and tested by certified repair technicians
Validity: 1 Year (Service Warranty).

Price: (Members Only)

Availability: Usually Ships in 2 to 3 Weeks
Order #: A16B-2200-0790

Qty:

Description

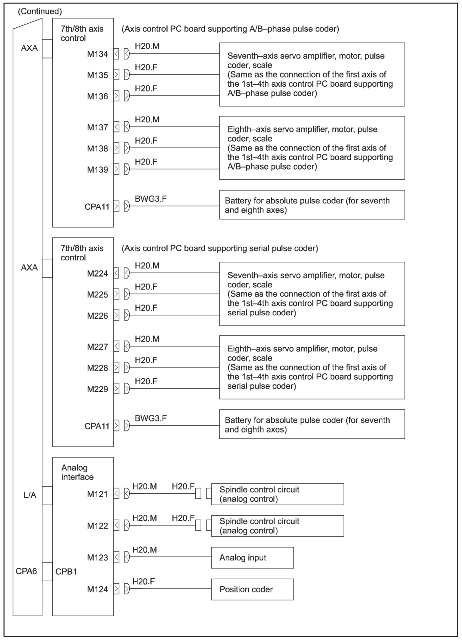

Specifications and Drawings

FANUC: SERIAL 7TH/8TH AXIS PCB FOR ZERO C CONTROL

· DISCONTINUED BY MANUFACTURER

· PC BOARD

· AXIS BOARD

· PCB - AXES 7/8 CONTROL W/SERIAL P CODER (#0C/F)

· 7TH/8TH AXES BOARD 0 CONTROL HIGH SPEED MACHINING..
FEATURES:
Fanuc FS0C Axis Control PCB of FANUC CNC Controls. Normally this 32 Bit Axis Control PCB is use to Control 7 / 8 Servo Axis Configuration.

Fanuc A16B-2200-7900 Axis board. Its a additional 7th or 8th axis 0-C Digital pcb for the 0-C controller. The A16B-2200-7900 comes standard as a 2 axis control board, that is mounted on the full size 0-C master with the 2200-7900 Digital Axis card to allow for a 7th and/or 8th axis for multi axis machining and turning centers. this board is non-surface mount pcb, and was fitted on the later more powerful 32 bit Fanuc 0-C control systems usually interfacing and controlling the Fanuc digital S & C series drive units. This board was fitted on 0-MC, 0-MD, 0-MF, 0-TTC, 0-TTD, 0-TTF post 1993 when Fanuc / GE Fanuc production of the 16 bit 0-C system halted..
