Refurbished Core Exchange: Option
Repair: Not offering at this time All our refurbished and repaired FANUC CNC products are thoroughly inspected and tested by certified repair technicians Validity: 1 Year (Service Warranty).

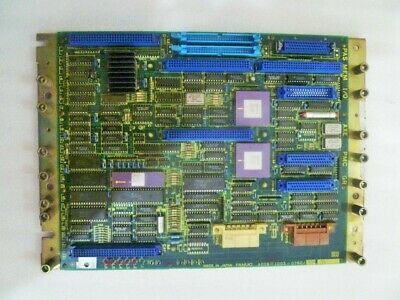

FANUC: ZERO MATE MASTER PCB FANUC FS0 Mate-C 16 BIT Main Board. Part Number: A20B-1003-0760 Product Series: A20B-1003FEATURES:A20B-1003-0760 Fanuc FS0 Mate-C Half Size of FANUC 0 Series C Controls. Normally this 16 Bit Master board PCB acts as a Back plane, with Graphics, I/O and Axis Control by Independent Boards.
The system designation is Fanuc 0MC, 0TC and the master board unlike the other 0 series main boards does not support memory, axes, i/o and acts like a bus plane though it does all the main system processing unlike the 15 controls. The A20B-1003-0760 has peripheral boards plug into it, the most basic configuration carries 5 boards, such as the memory, axis and i/o, graphics, additional axis boards, PMC boards, and more additional boards. DNC offer a variety of services for this master. The A20B-1003-0760 can Run as 2/3/4 Axis Machine Tool Configuration as standard.
A20B-1003-0760 was Designed to Run with analog Interfaced Fanuc S-Series AC Spindle Drives. .
FANUC FS0 Mate-C 16 BIT Main Boar.
The A20B-1003-0760 has peripheral boards plug into it, the most basic configuration carries 5 boards, such as the memory, axis and i/o, graphics, additional axis boards, PMC boards, and more additional boards. DNC offer a variety of services for this master. The A20B-1003-0760 can Run as 2/3/4 Axis Machine Tool Configuration as standard.
A20B-1003-0760 was Designed to Run with analog Interfaced Fanuc S-Series AC Spindle Drives..
