FAULHABER Brushed DC-Micromotors: 3242...CR Series
3242...CR Series

Alternate View


Faulhaber
833-9MOTION [email protected].

Price: (Members Only)


Availability: Lead Time is 3-20 business Days
Order #: 3242...CR


Model No.:


Qty:


Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

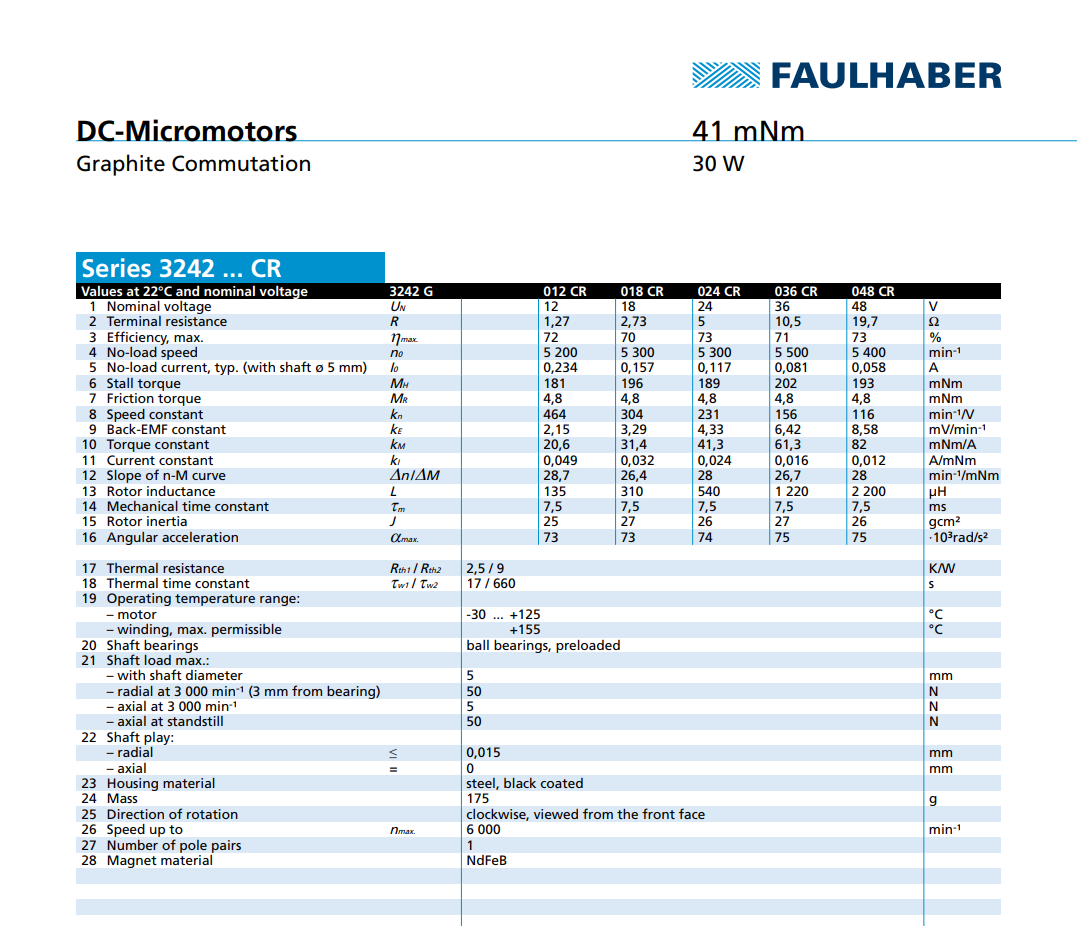

DC-Micromotors:
Series 3242...CR

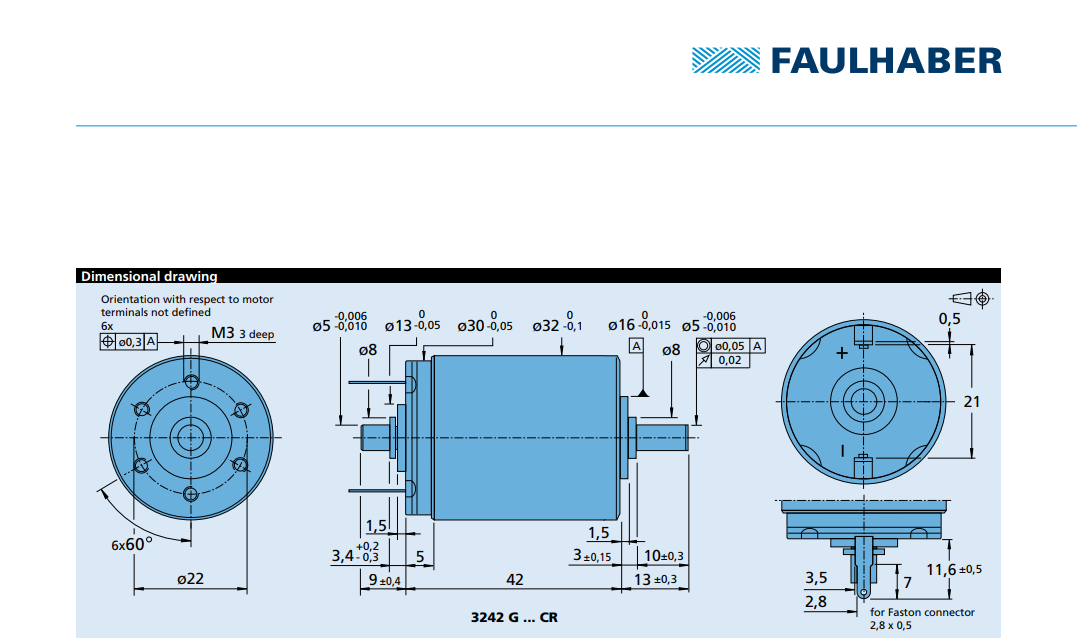

Graphite Commutation (Diameter: 32 mm, Length: 42 mm)

DC-Motors

FAULHABER DC-Micromotors differ from conventional iron core DC motors in that the rotor consists of a self-supporting, skew wound copper coil.

Among the inherent properties of this pioneering design are an extremely low rotor inertia and zero cogging or preferred rotor position. These factors help to define the uniquely high, power to volume ratio of the motors as well as their extremely dynamic performance characteristics.

DC-Micromotors

Originally invented by Dr. Fritz Faulhaber Sr. and patented in 1958, the FAULHABER coreless (or ironless) progressive, self-supporting, skew-wound rotor winding is at the heart of every FAULHABER DC-Micromotor.

This revolutionary technology created new possibilities for customer application of DC-Motors where the highest power, best dynamic performance, in the smallest possible size and weight are required.

Features and benefits:

  • No cogging torque

  • Smooth position and speed control

  • High efficiency

  • Low Noise

  • High torque

  • Low Weight

  • Very low rotor inertia

  • Dynamic start-stop operation

  • Low torque ripple and EMI

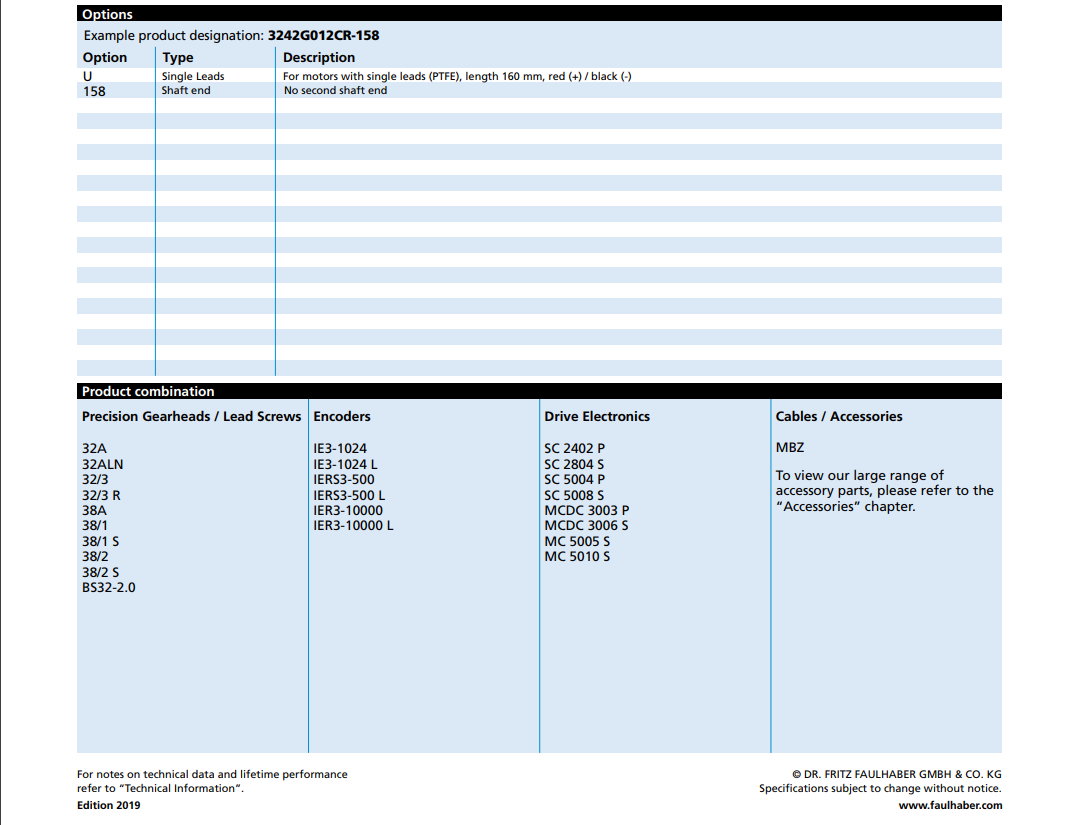

Model No.: 3242G012CR, 3242G024CR, 3242G048CR
