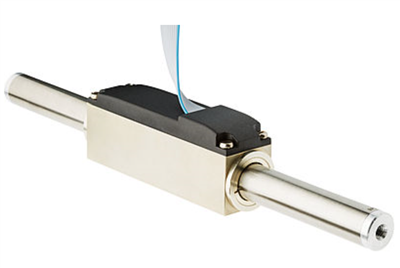

FAULHABER: Linear DC-Servomotors LM2070-160-12
FAULHABER: Linear DC-Servomotors LM2070-160-12

Faulhaber
833-9MOTION[email protected].

Price: (Members Only)


Availability: Lead Time is 20 Business Days
Order #: LM2070-160-12
Qty:


Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

FAULHABER: Quickshaft® Linear DC-Servomotors LM2070-160-12

QUICKSHAFT® Linear DC-Servomotors bring linear motion to new dimensions. These high performance, miniature, linear motors consist of a solid stator housing and coil assembly and a multi-pole magnetic force rod.

High power magnets help the motor achieve its excellent force and dynamic speed performance.

Specifications:

  • Continuous Force (N): 9.2

  • Peak Force (N): 27.6

  • Stroke Length (mm): 40 ... 220

  • Repeatability (µm): 100 - 120

  • Maximum Precision (µm): 500 - 900

  • Maximum Speed (m/s): 2.8

Model No.: LM 2070-040-12, LM 2070-080-12, LM 2070-120-12, LM 2070-160-12, LM 2070-220-12
