At two times the standard industry speed for digital current loop update rates, the new MaxPlus FLX Series amplifiers are the industry’s fastest. Featuring a 25 micro-second loop update rate and low current noise capabilities, this multi-patented, flexible family of digital drives offers increased machine throughput and productivity.

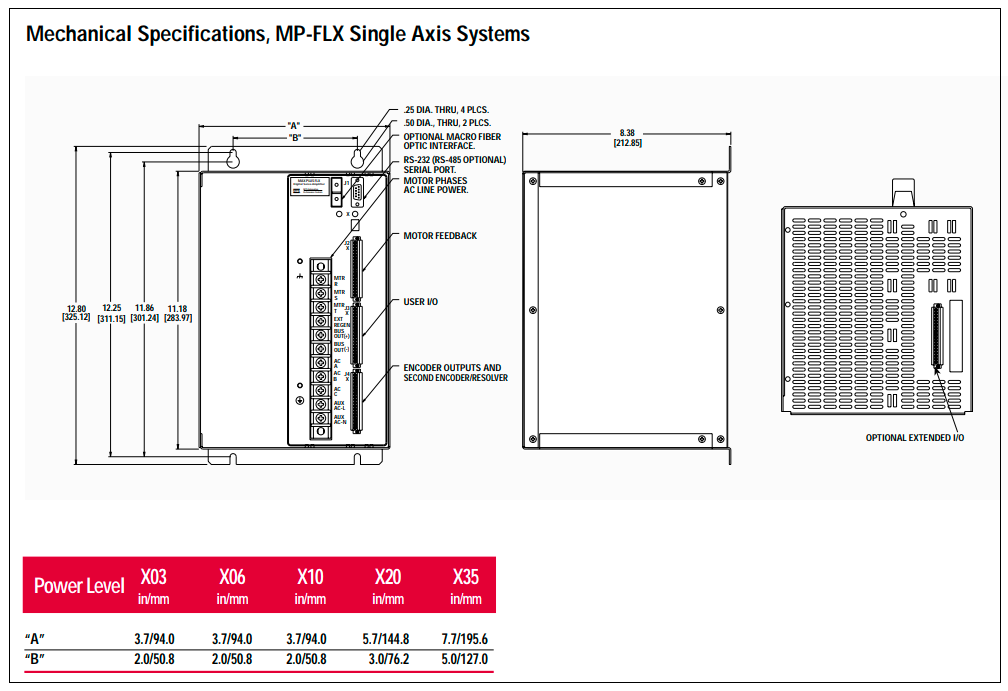

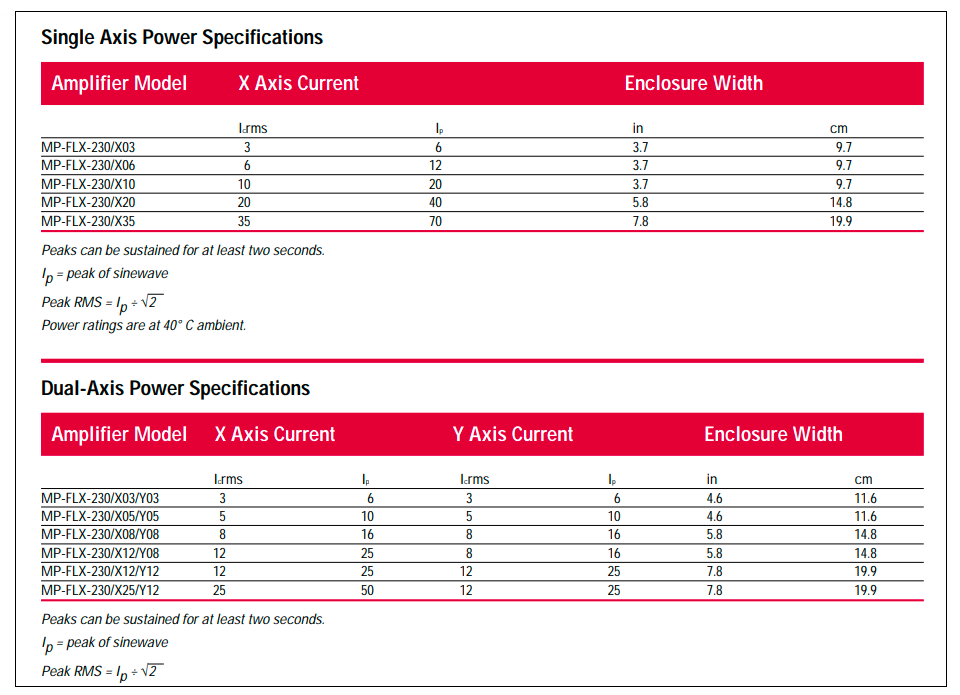

The Single-Axis digital drives are capable of simple torque or velocity loop modes or point to-point position loop mode including pulse and direction control. They offer continuous output current from 3 to 35 Amps RMS.

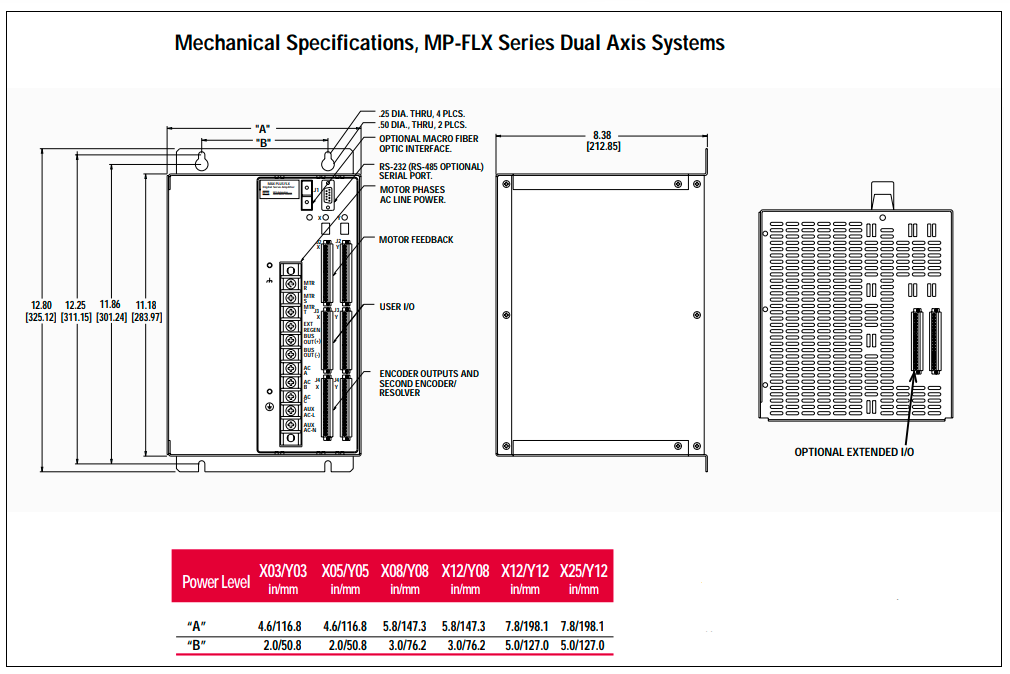

The Dual-Axis amplifiers are packaged in one enclosure and share common circuitry such as the DSP, DSP support circuits, power supply and other power stage circuits. This extremely cost-efficient use of space and technology translates to a substantial cost savings of approximately 35% or more in multi-axis applications. Available in a variety of power levels with up to 230 VAC line input voltages, the dual-axis models range from 3/3 to 25/12 Amps RMS of continuous output current.

Based on third generation digital technology, the stand-alone, fully digital amplifiers also feature an intelligent drive option (MP-FLXi) for Single- and Dual-Axis coordinated motion control that’s built directly into the drives.

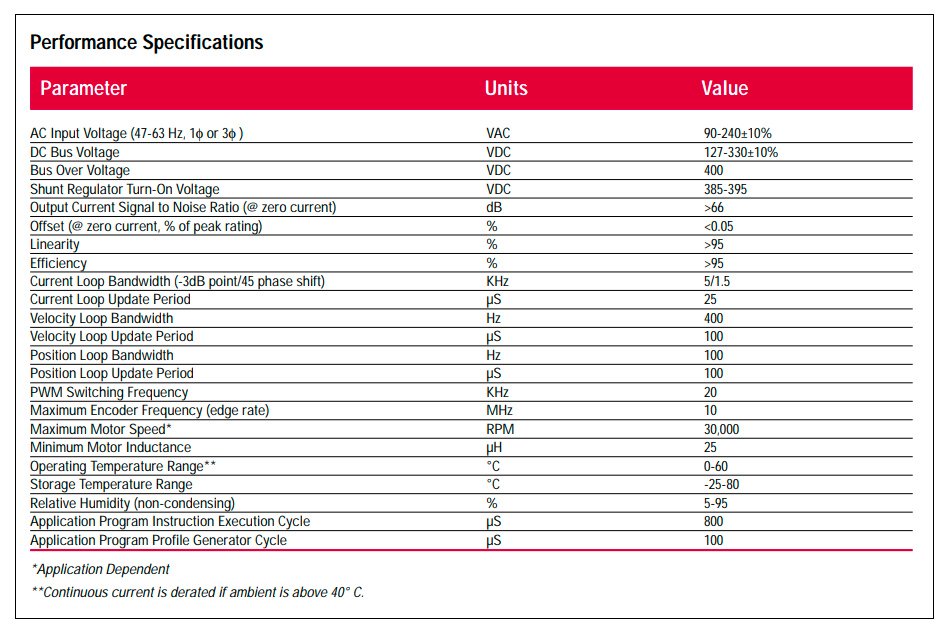

Standard Features

• High Speed (25µS) Current Loop Update Rate

• Patent Pending 1/T Velocity Estimation for Smooth Low-Speed Performance

• Cost Saving Dual-Axis Package

• CE, CUL and UL508C Certifications

• Internal and/or External Shunt Regulation

• ± 10 VDC Analog Command Input (14 bit A/D)

• RS-232 or RS-485 Serial Port Communications

• Windows®-based HMI (Human Machine Interface)

• Up to 240 VAC Nominal (264 VAC max) Line Input

• Up to 35 Amps RMS of Continuous Output Current for Single-Axis Units

• 3/3 to 12/25 Amps RMS of Continuous Output Current Per Axis for Dual-Axis Units

• Drive Enable Input

• ± Limit Switch, Home Inputs

• Fault Relay, Warning/Brake Relay

• Status Indicators (7 Segment Display and Bi-Colored LEDs)

• Resolver or Encoder/Hall Feedback • Simulated Encoder Output

• Sinusoidal Commutation

• Pulse and Direction Input (Stepper Emulation)

• Extensive Fault Protection

• Simple Screw-Type Terminal Interface

• User Supplied AC/DC Inputs for Maintaining Control Circuits During Main Power Loss

• EEPROM to Store Tuning and Setup Parameters

• Programmable Current Limit (0 to 100%)

• Programmable Current Scaling (0 to 100%)

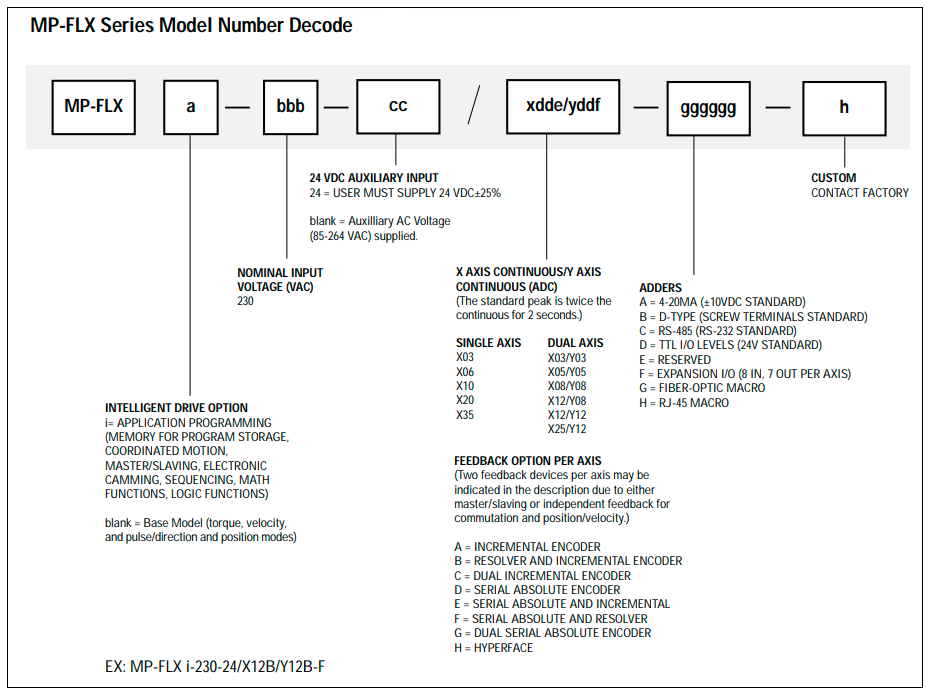

Optional Features

• Intelligent Drive Option with Full Motion Control Programmability (Coordinated Motion, Master/Slaving, Electronic Gearing, Camming, Math Functions, Logic Functions)

• Expanded I/O, 15 User I/O Per Axis (Opto-Isolated, 24VDC)

• Dual Encoder Inputs Per Axis for Master/Slaving or Commutating Encoder with Additional Positioning Feedback Encoder

• MACRO® Digital Network Interface (Type I Compatible, Fiber-Optic or RJ45 Twisted Pair) • D-Type Connectors for High Volume Applications

• 4-20mA Command Input

Fault Protection

• Phase-to-Phase Shorts

• Phase to Vbus

• Phase to Vbus Return

• Phase to Chassis (Earth) Ground

• Over Temperature • Over Voltage

• Locked Rotor Over Current

• Shunt Over Power

• Logic Supply Under Voltage

• Processor Fault

• Application Program Fault

User Programmable Faults and Warnings

• Motor Temperature

• User RMS Current Limit

• Bus Under Voltage

• Amplifier Temperature Warning

• Position Following Error

• Resolver Fault

• Hall Sensor Fault
