Faulhaber: Brushless Flat DC-Micromotors 1509...B Series

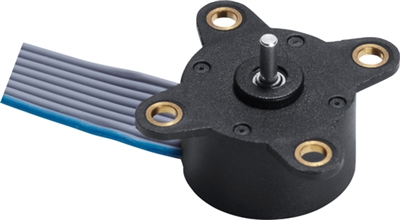

Faulhaber Brushless (Flat) DC-Micromotors: 1509...B Series

Alternate View


Faulhaber
833-9MOTION [email protected].

Price: (Members Only)


Availability: Lead Time is 3-20 Business Days
Order #: 1509...B


Model No.:


Qty:

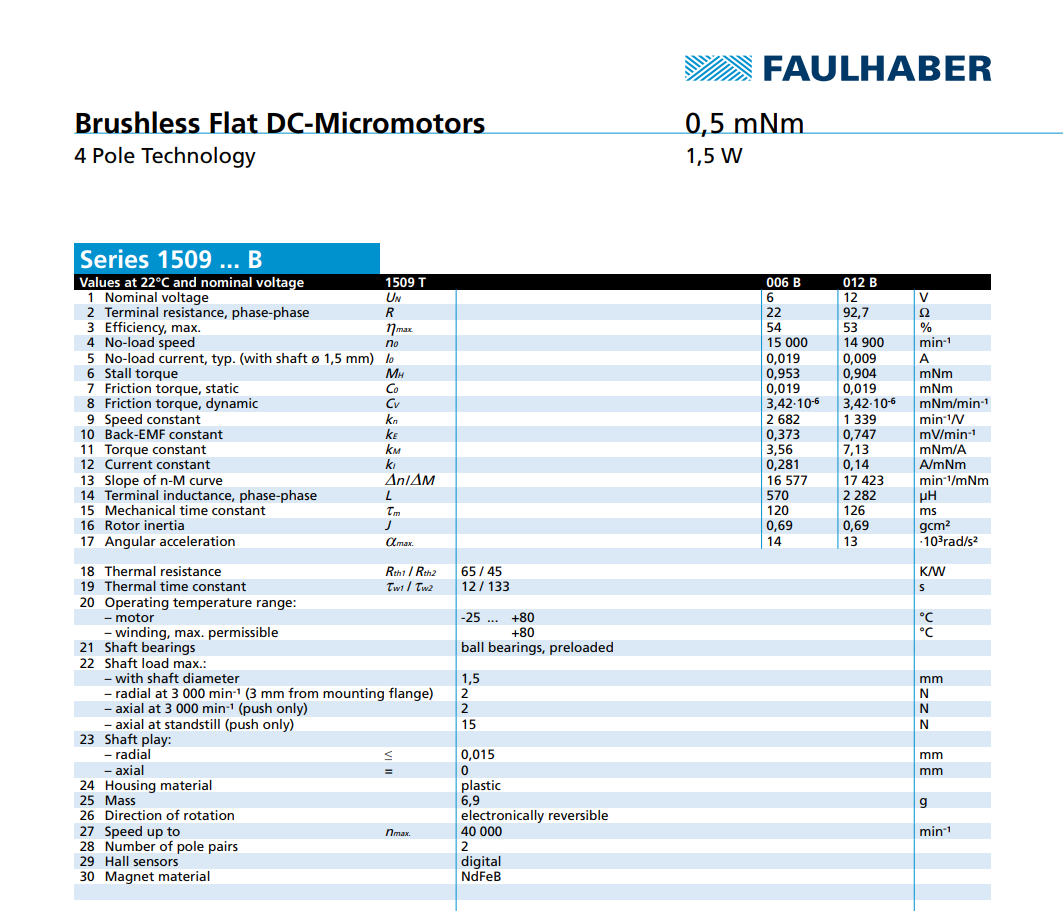

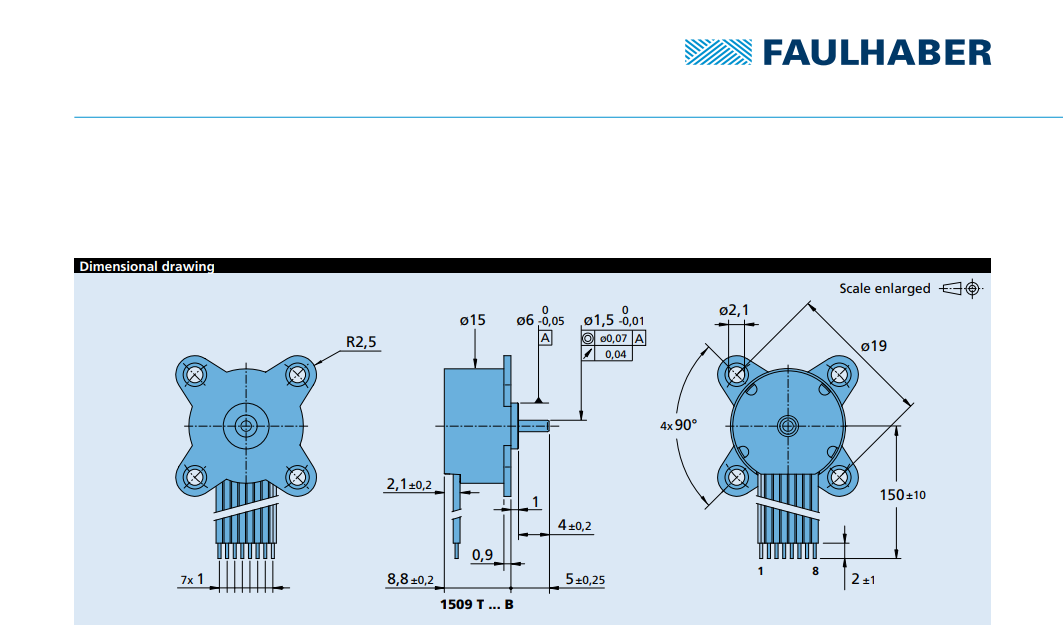

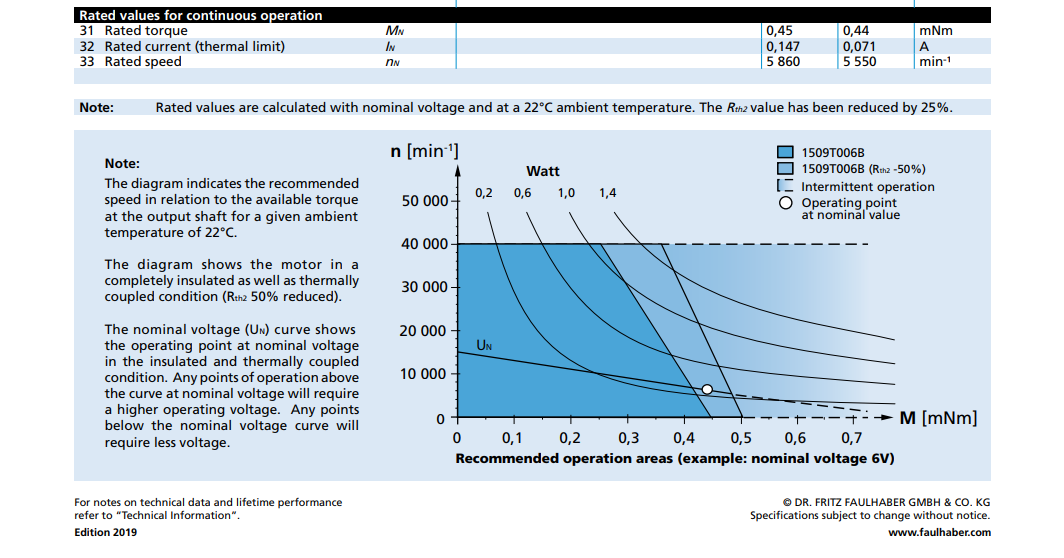

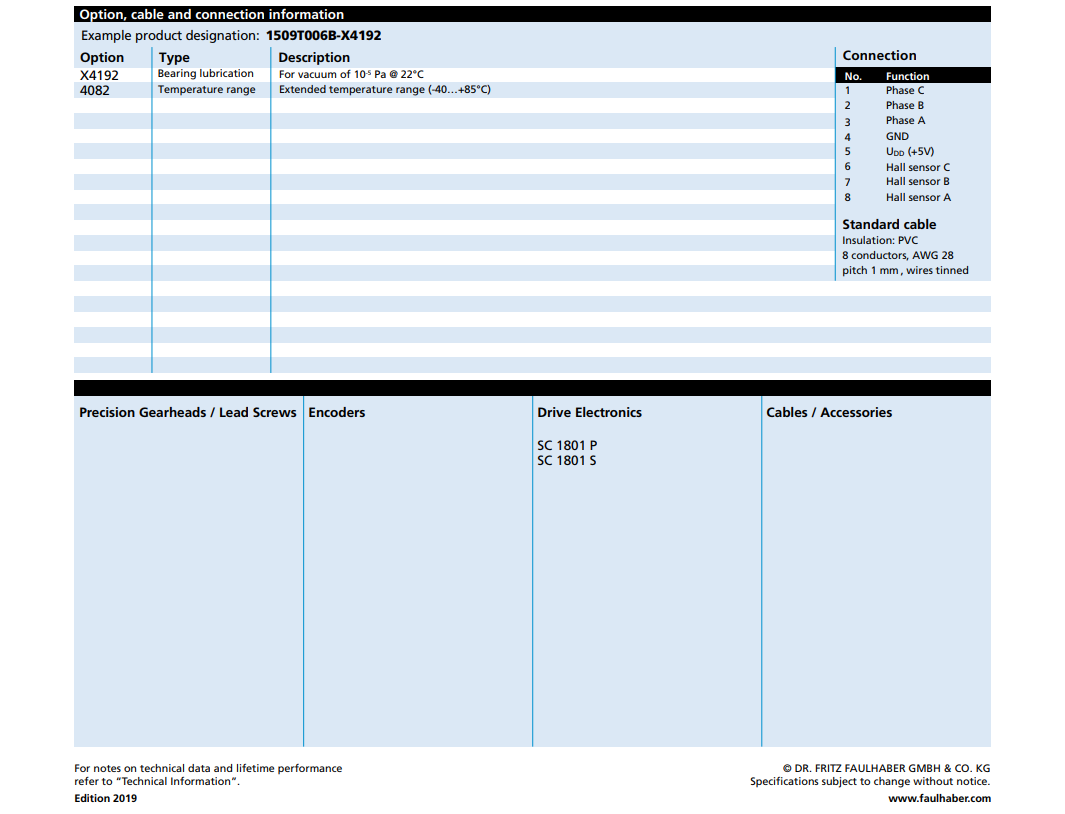

Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

Brushless Flat DC-Micromotors
: Series 1509...B

(Diameter: 15 mm, Length: 8.8 mm)

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Brushless DC-Flat Micromotors

FAULHABER Flat Brushless Micromotors are based on innovative ironless coil designs that not only make them the flattest motors available in the industry but provide for smooth performance in a compact high efficiency package.

These motors are characterized by their excellent speed control, whisper quiet performance, and extremely low weight.

Features and Benefits:

  • Ironless design

  • Higher efficiency than many other motor types

  • Precise speed control

  • Flat, light and extremely compact

Model No.: 1509T006B, 1509T012B
