Faulhaber: Brushless DC-Gearmotors 2622...B Series

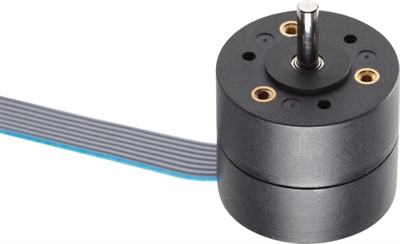

Faulhaber Brushless DC-Gearmotors: 2622...B Series

Alternate View


Faulhaber
833-9MOTION [email protected].

Price: (Members Only)


Availability: Lead time is 140+ working days.
Order #: 2622...B


Model No.:


Qty:

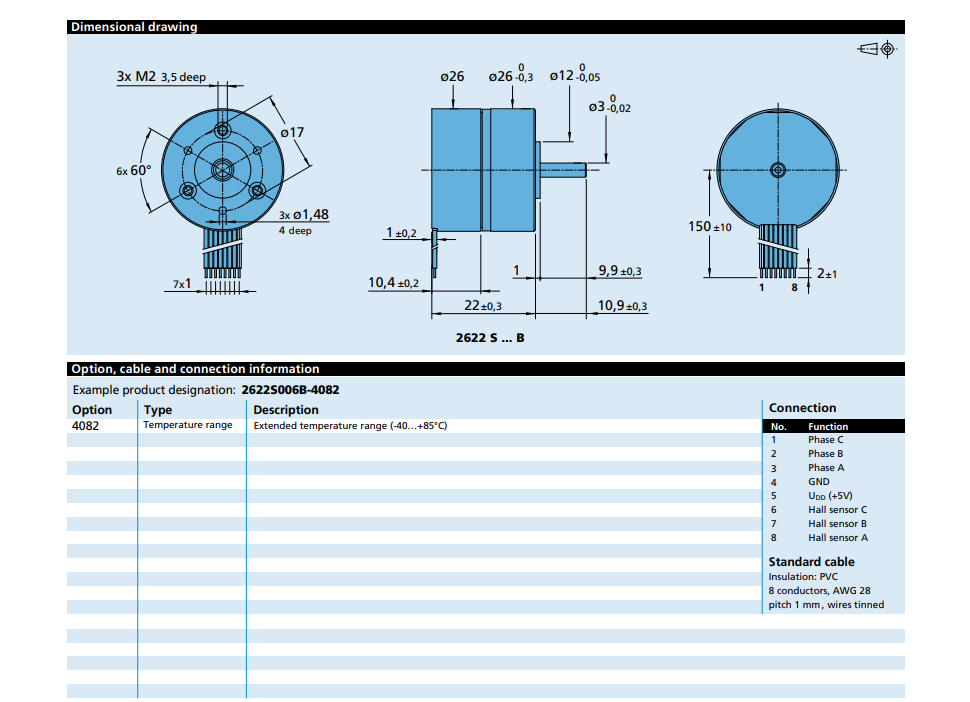

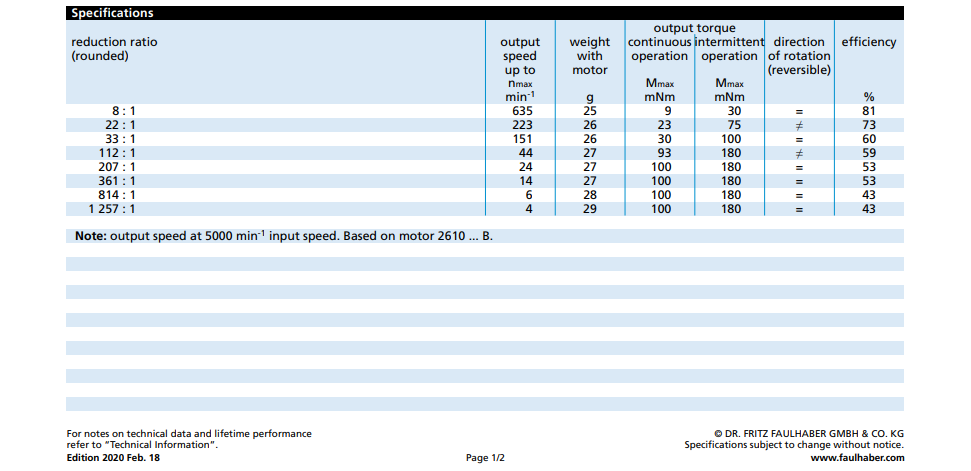

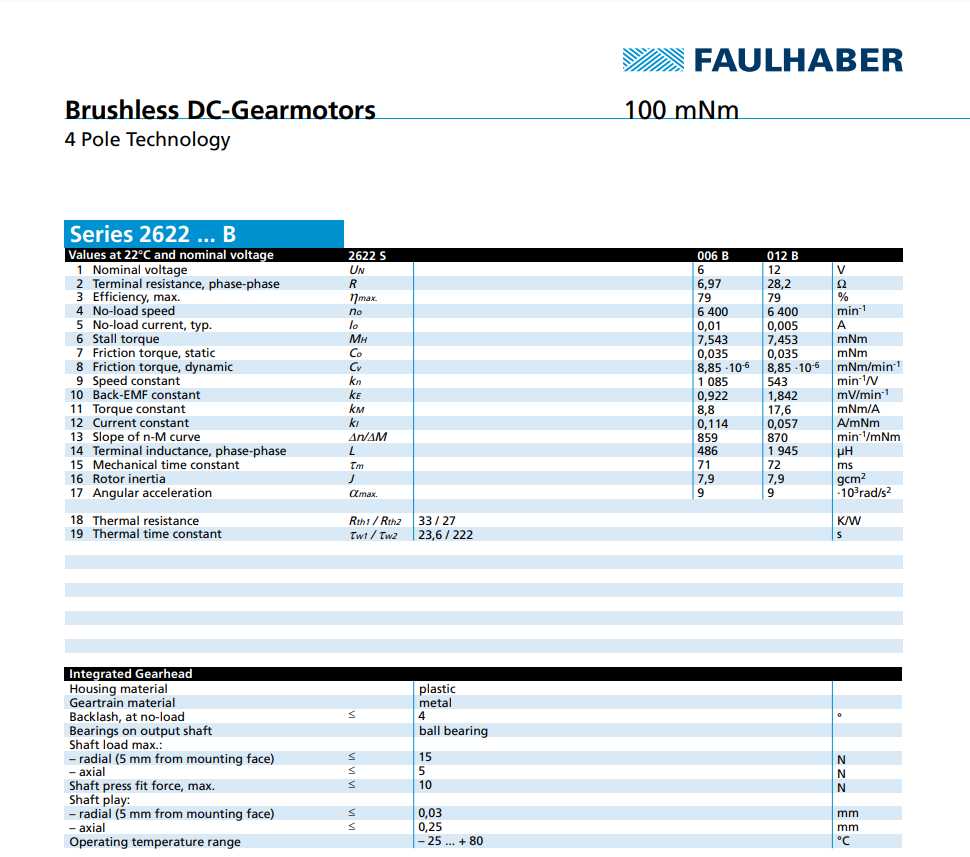

Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

Faulhaber: Brushless DC-Gearmotors
: 2622...B Series (4 Pole Technology)

(Diameter: 26 mm, Length: 22 mm)

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Brushless DC-Gearmotors

The innovative FAULHABER BLDC Gearmotors are also available with an extremely compact integrated spur gearhead for speed reduction and a significant increase in the available output torque.

There are a wide variety of reduction ratios available in the same compact housing design.

Features and Benefits:

  • Extremely compact

  • Smooth and quiet

  • Variety of reduction ratios in the same motor size

Model No.: 2622S006B 112:1, 2622S006B 1257:1, 2622S006B 207:1, 2622S006B 22:1, 2622S006B 33:1, 2622S006B 361:1, 2622S006B 8:1, 2622S006B 814:1, 2622S012B 112:1, 2622S012B 1257:1, 2622S012B 207:1, 2622S012B 22:1, 2622S012B 33:1, 2622S012B 361:1, 2622S012B 8:1, 2622S012B 814:1
