Faulhaber: Brushless DC-Servomotors (1218...B Series)
1218...B Series

Alternate View


Faulhaber
833-9MOTION [email protected].


Price: (Members Only)


Availability: Lead Time Is 20 Business Days
Order #: 1218...B


Model No.:


Qty:

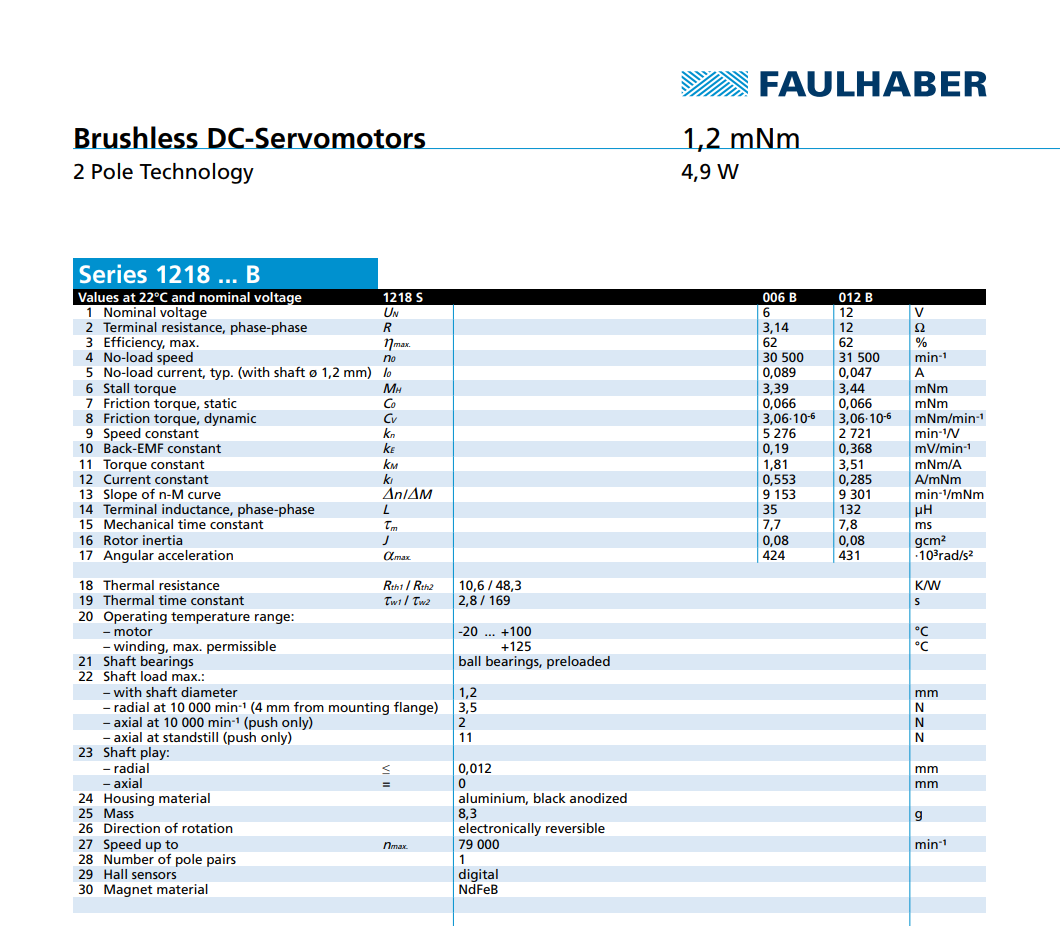

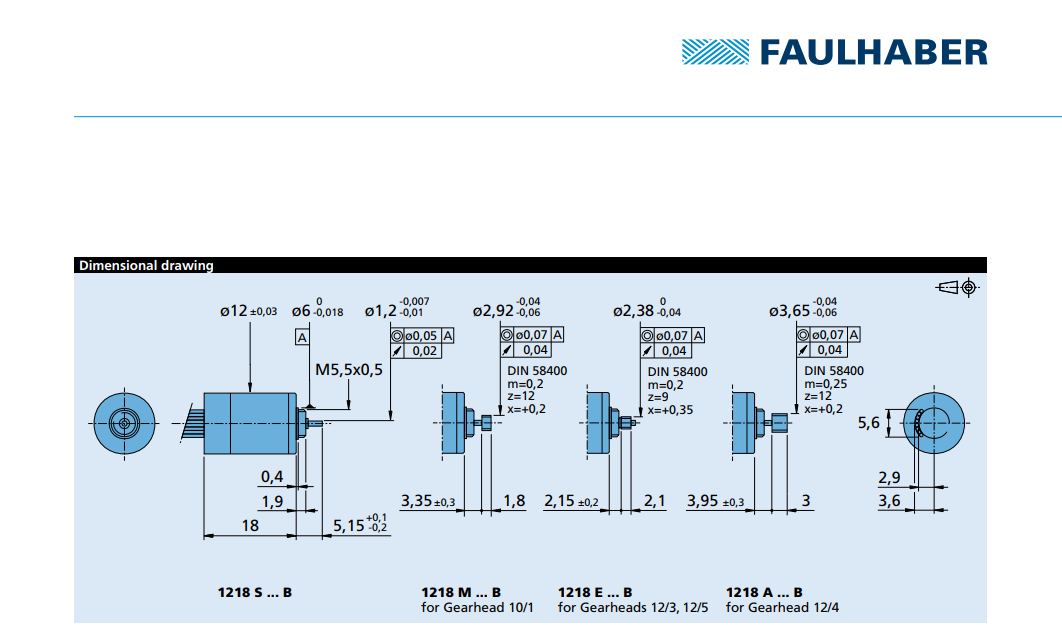

Description Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

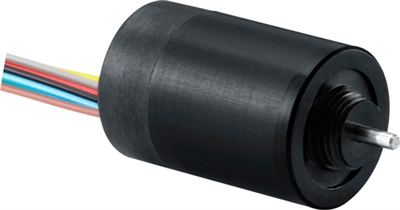

Brushless DC-Servomotors
: Series 1218...B

(Diameter: 12 mm, Length: 18 mm)

Brushless DC-Motors

Whether it's high torque 4 pole servomotors, highly efficient flat motors,or compact slotless motors, FAULHABER specializes in getting the most performance out of the smallest package.

Due to their design FAULHABER brushless motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.

Brushless DC-Servomotors

FAULHABER Brushless DC-Servomotors are designed for demanding applications where compact size and high performance are key. They are available in high torque 4-Pole or high power 2-Pole versions

FAULHABER specializes in compact functional integration and many motors are available with integrated drive electronics, encoders, and analog hall sensors, which can in many cases replace the need for an encoder.

Features and Benefits:

  • High efficiency slotless design

  • High-torque or high-speed with small size and low weight

  • Highly dynamic acceleration and deceleration

  • Low noise

  • Available with a wide range of sensor options or sensorless

Model No.: 1218S006B, 1218S012B
