Faulhaber: DC-Micromotors 3557...CS Series
Faulhaber: DC-Micromotors (3557...CS Series)


Price: (Members Only)


Order #: 3557...CS


Model No.:

Qty:


Description Specifications and Drawings


Faulhaber: DC-Micromotors (3557...CS Series)

Coreless DC Motors are constructed with a rotor attached to a commutator plate. Brushes providing commutation, these lightweight motors have a low starting inertia for maximum acceleration & minimal power consumption.

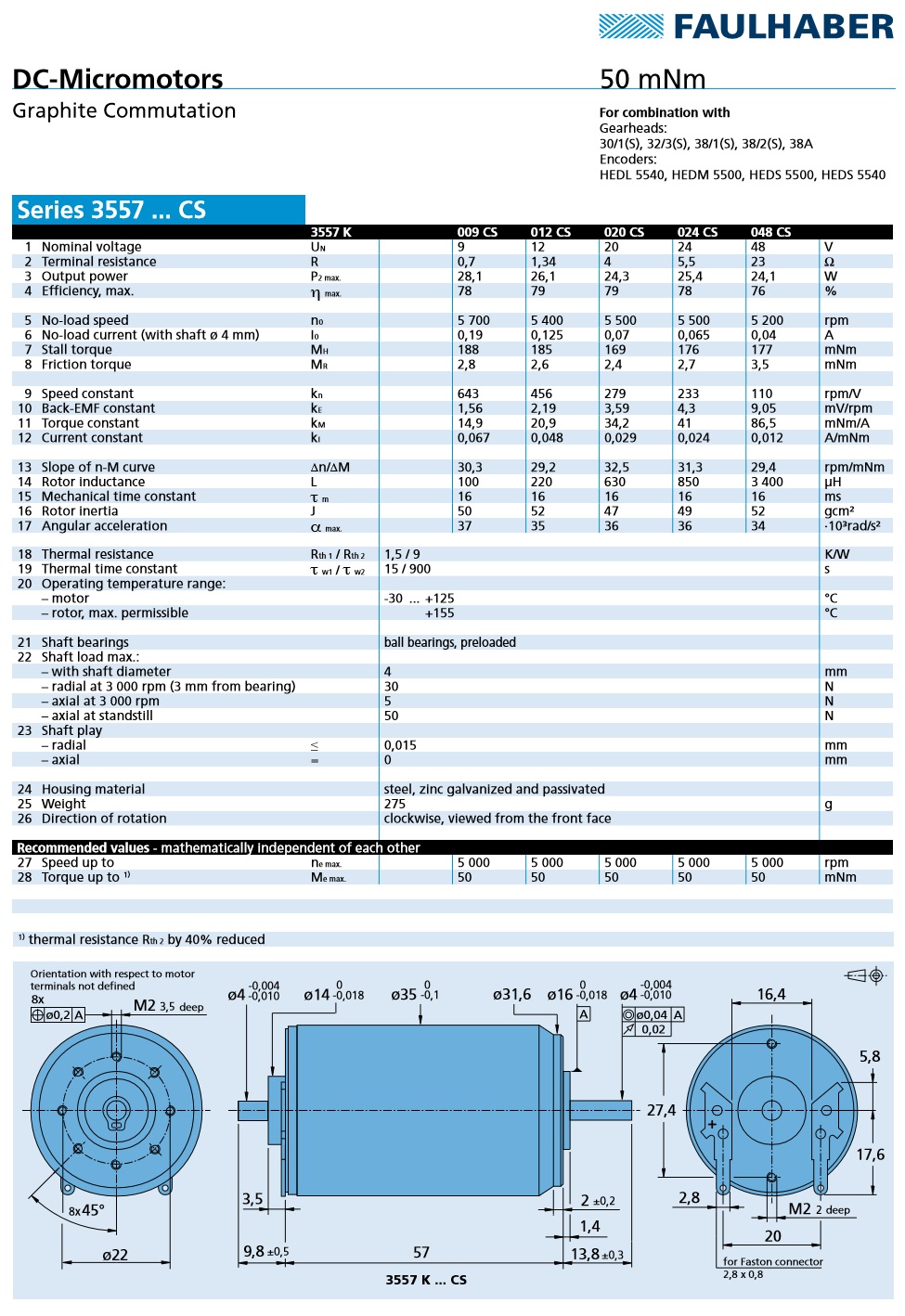

Specifications:

  • Diameter (mm): 35

  • Length (mm): 57

  • Commutation: Graphite

  • No-Load Speed up to (rpm): 5,700

  • Stall torque up to (mNm): 188

Model No.: 3557K009CS, 3557K012CS, 3557K020CS, 3557K024CS, 3557K048CS
