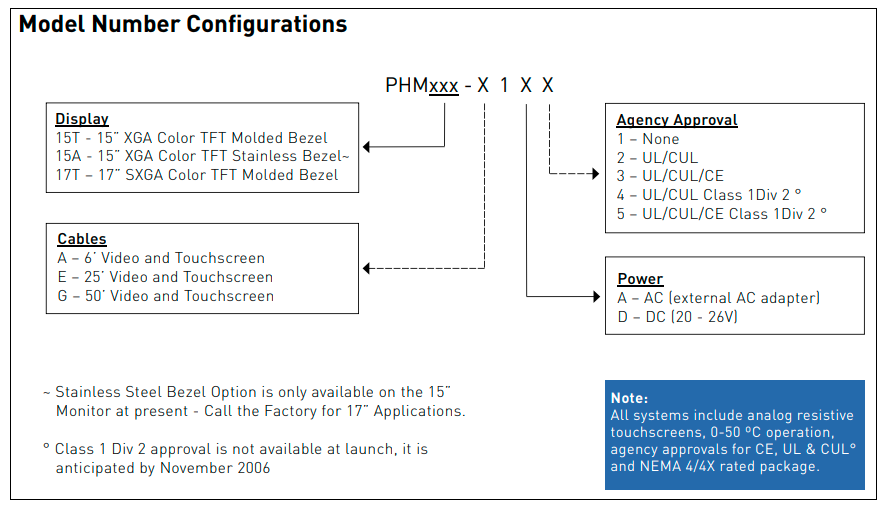

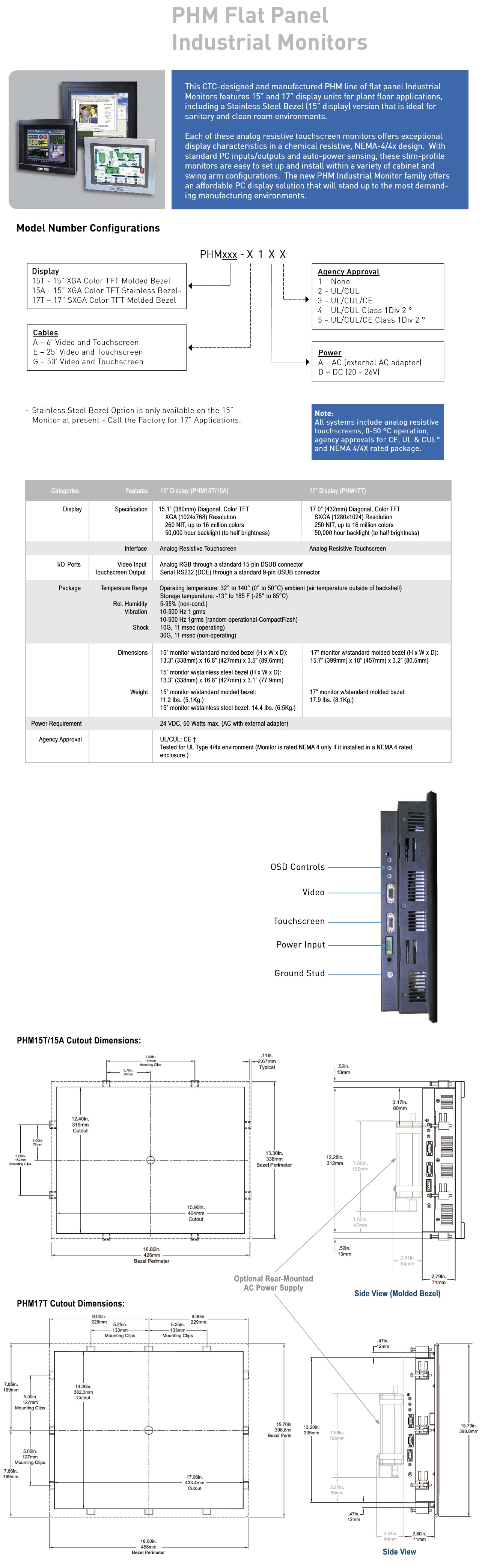

Description Ordering Information Specifications and Drawings

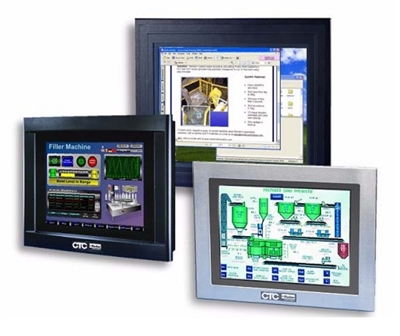

Parker: Flat Panel Industrial Monitors (PHM Series)

The PHM flat panel industrial monitors offer a slim profile 15" or 17" touchscreen interface with standard PC I/O, exceptional display characteristics and a chemical resistant NEMA-4/4x design which is perfect for a range of plant floor applications.

The Parker-designed and manufactured PHM line of flat panel Industrial Monitors features 15” and 17” display units for plant floor applications, including a Stainless Steel Bezel (15” display) version that is ideal for sanitary and clean room environments. Each of these analog resistive touchscreen monitors offers exceptional display characteristics in a chemical resistant, NEMA-4/4x design. With standard PC inputs/outputs and auto-power sensing, these slim-profile monitors are easy to set up and install within a variety of cabinet and swing arm configurations. The PHM Industrial Monitor family offers an affordable PC display solution that will stand up to the most demanding manufacturing environments.


PHM Industrial Monitor - Features:

  • 15" and 17" industrial monitors, designed for manufacturing plant floor applications

  • Analog resistive touchscreen interface

  • Stainless Steel Bezel offered on 15" displays, ideal for sanitary/cleanroom applications

  • Video input through DVI-D/DVI-I connector

  • Analog RGB input through a standard 15-pin DSUB connector

  • USB touchscreen interface through a standard USB connector

  • Serial touchscreen interface through a standard 9-pin DSUB connector

  • Auto Setup function with autosizing for lower resolutions

  • Video frequency detect with Auto-Power Sensing

  • 24 VDC power (optional AC brick)

  • Rear button control for on-screen display

  • Tested for UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment

  • UL/CUL/CE


Technical Specifications:

  • Product Type: Industrial Monitor

  • Display Size: 15" | 17"

  • Display Type: Color TFT

  • Interface Type: Analog Resistive Touchscreen

  • Maximum Screen Resolution (Pixels): 15": 1024x768 | 17": 1280x1024

  • Backlight Life (Hours): 50000

  • Operating System: N/A

  • HMI Software: N/A

  • I/O Ports: 1x Video Input (DVI-D/DVI-I) | 1x Video Input (Analog RGB 15-pin DSUB) | 1x Serial Touchscreen Output (9-pin DSUB) | 1x USB Touchscreen Output

  • CPU: N/A

  • System Memory (DRAM): N/A

  • Client Data Storage: N/A

  • Input Supply Voltage: 24VDC

  • Operating Temperature (C): 0 ... 50

  • Operating Temperature (F): 32 ... 122

  • Operating Humidity: 5-95% (non-condensing)

  • Protection/Ingress Rating: UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment | Stainless Steel bezel optional on 15"

  • Certificates: CE | UL/cUL | Class 1 Division 2 (optional)
