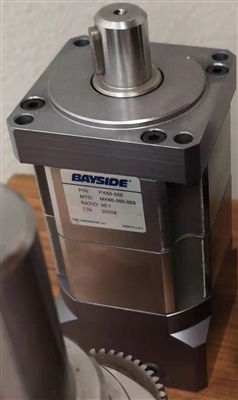

Parker Bayside: Generation II Stealth® Helical Planetary Gearhead (PX60-050 Series)
Our new Generation II Stealth® series provides higher radial load, increased service life and ease of mounting
The Generation II Stealth® Helical Planetary Gearheads incorporate design enhancements to provide superior performance for the most demanding high performance applications.
Stealth Generation II incorporates dual angular contact bearings providing higher radial load capacities while maintaining high input speeds. Design enhancements also include full complement needle bearings allowing for increased service life and extended warranties. Internal design changes and optimized gearing geometries allow for one oil fill level for any orientation, resulting in shortened part number designation and simplified order placement.
Universal mounting kits provide common mounting kits across multiple product lines to promote quicker deliveries and ease of mounting to any servo motor. Applications that require either high precision (PS/ RS Series Gearheads) or mid-range precision (PX/RX Series Gearheads) utilize the same mounting kit part numbers within the same frame size.
Mounting to any servo motor is as easy as A-B-C (adapter, bushing, collet).
Features & Benefits:
Higher radial load capacity: widely spaced angular contact output bearings
Increased service life: full complement of planet needle bearings
Universal mounting kits: quicker deliveries and easier mounting
High torque and low backlash: helical planetary gearing
High stiffness: Integral ring gear and rigid sun gear
Higher gear wear resistance: plasma nitriding heat treating
PX models are optionally available with flange mounting for easy installation. (Contact factory for flange mount availability for RX models.)
Specifications:
Configuration: In-line
Backlash: <8Arc/Minute
Frame Size: 60 mm
Gear Teeth: Helical Planetary
IP65
Noise: <68 db
Ratio: 50:1
Installation: MX60-050-005 MTG
Weight: 4.45 lbs
Model No.: PX60-050+MX60-50-005
