Harmonic Drive Gearheads: CSG-GH Series These gearheads can be easily adapted to any OEM servo motor. Harmonic Drive® gear products offer zero-backlash with gear ratios from 30:1 to 160:1. Precision planetary gearing products are available with gear ratios from 3:1 to 45:1 with backlash maintained below 1 arc-min. High capacity output bearings are utilized for robust and accurate support of loads. Other benefits include flange and shaft output configurations, hollow shaft designs, and sizes ranging from 0.625 inches to over 10 inches in diameter. Harmonic Drive® gearing utilizes a unique operating principle which is based upon the elastic mechanics of metals. The greatest benefits are the zero-backlash characteristics and the weight and space savings compared to other gears because our gear mechanism consists of only three basic parts. They are the: Wave Generator, Flexspline and Circular Spline. This simple three element construction combined with the unique operating principle allows extremely high reduction ratio in a very compact and lightweight package. Neither the size nor weight of the gear vary with the reduction ratio. The high performance attributes of this gearing technology including zero backlash, high torque, compact size, excellent positional accuracy and repeatability are all a direct result of the unique operating principle. CSG-GH Series Quick Connect Gearheads Zero-Backlash CSG-GH Harmonic Drive® gearheads deliver 30% higher torque than our standard (CSF-GH) gearhead with 42% longer life while maintaining the same and high accuracy and repeatability. The CSG-GH Series utilizes our proprietary S tooth profile for unrivaled performance. The Quick Connect™ coupling design allows easy mounting of any servo motor. Zero Backlash Available in 5 Frame Sizes Peak Torque: 23Nm to 3,419Nm Ratios: 50:1 to 160:1 Accuracy: <1 arc-min Repeatability: ±4 to ±10 arc-sec Cross Roller output bearing Available with flange output, output shaft without key or shaft with key and center tapped hole

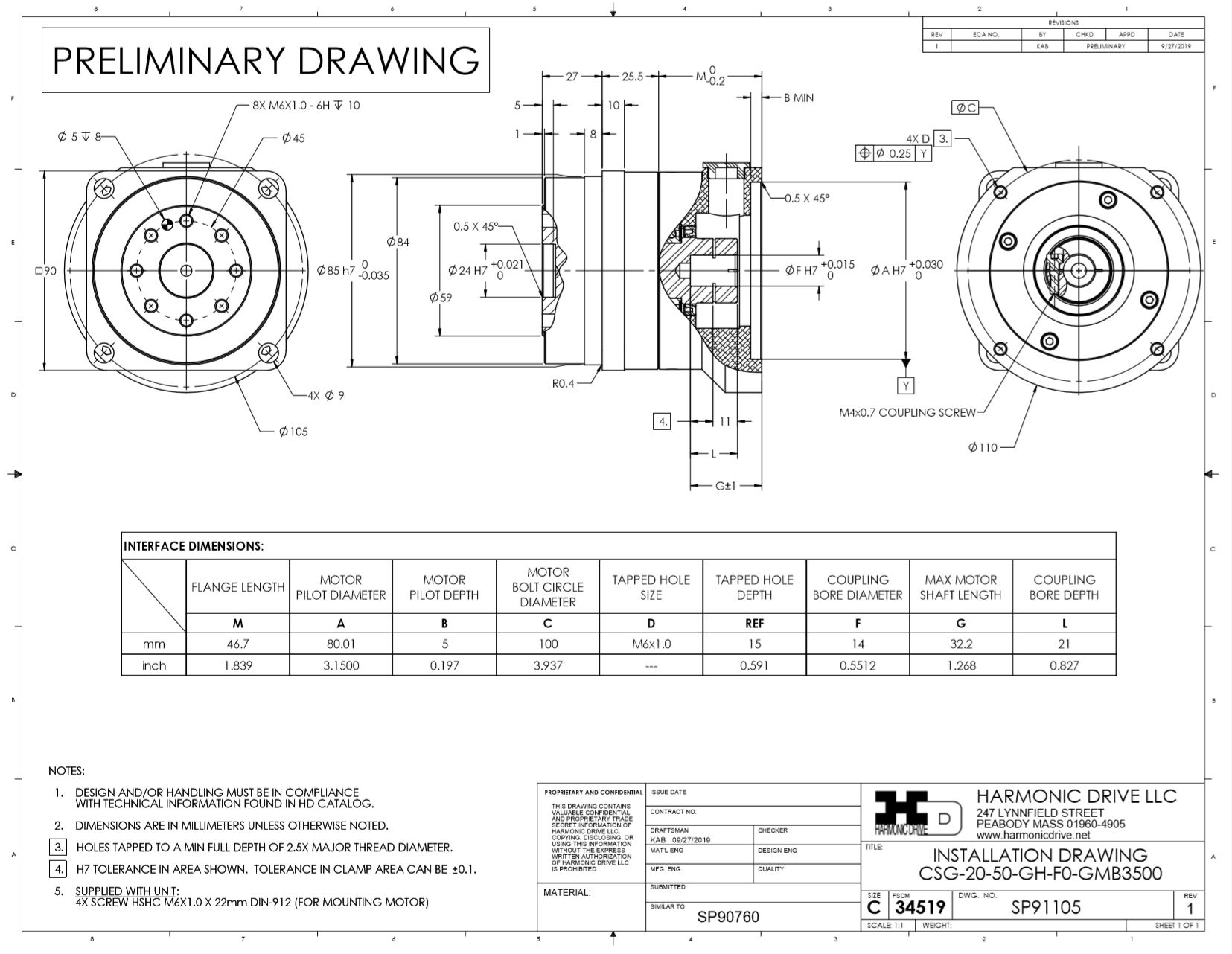

Model No.: CSG-14-100-GH, CSG-14-50-GH, CSG-14-80-GH, CSG-20-100-GH, CSG-20-120-GH, CSG-20-160-GH, CSG-20-50-GH, CSG-20-80-GH, CSG-32-100-GH, CSG-32-120-GH, CSG-32-160-GH, CSG-32-50-GH, CSG-32-80-GH, CSG-45-100-GH, CSG-45-120-GH, CSG-45-160-GH, CSG-45-50-GH, CSG-45-80-GH, CSG-65-100-GH, CSG-65-120-GH, CSG-65-160-GH, CSG-65-80-GH
|
|
