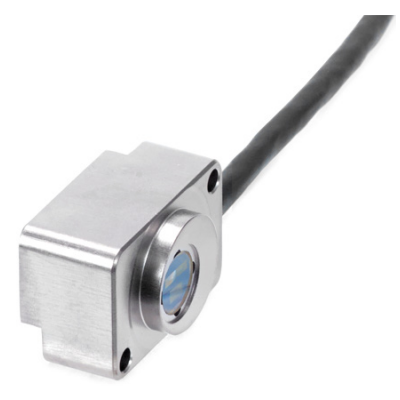

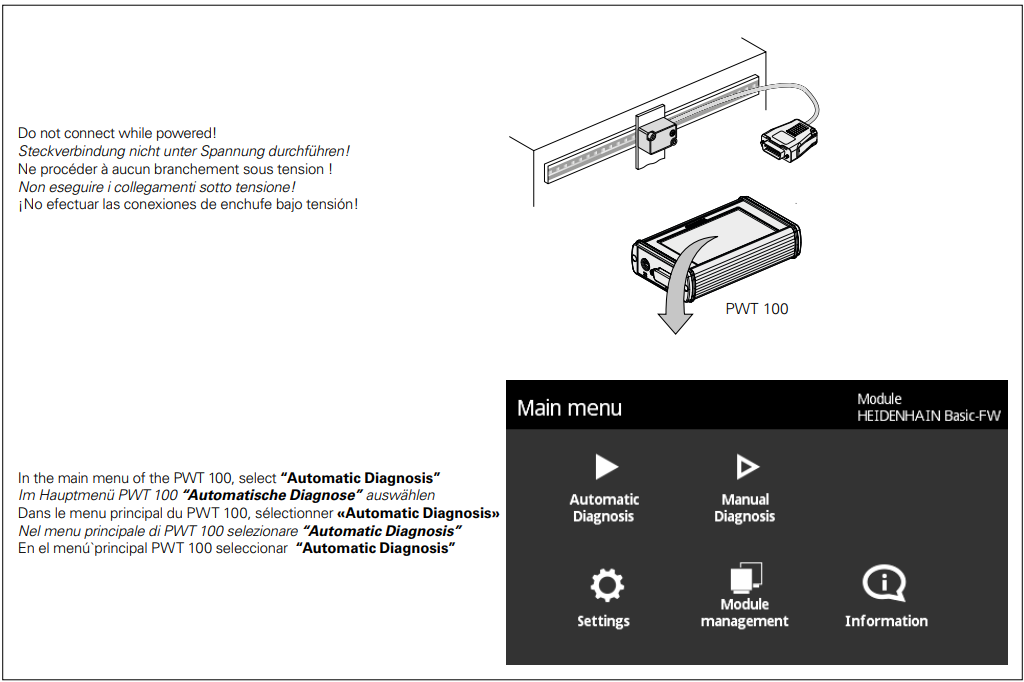

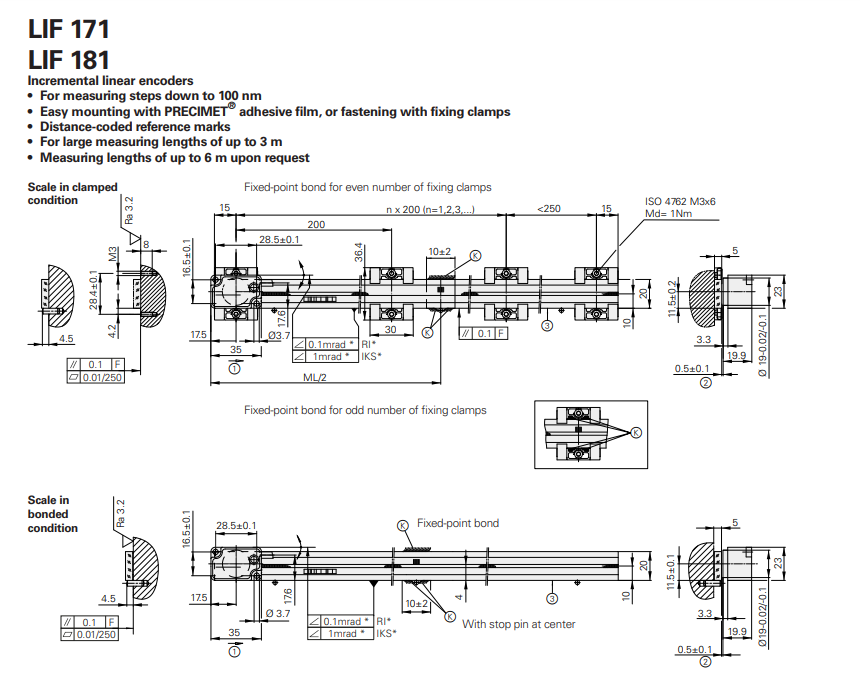

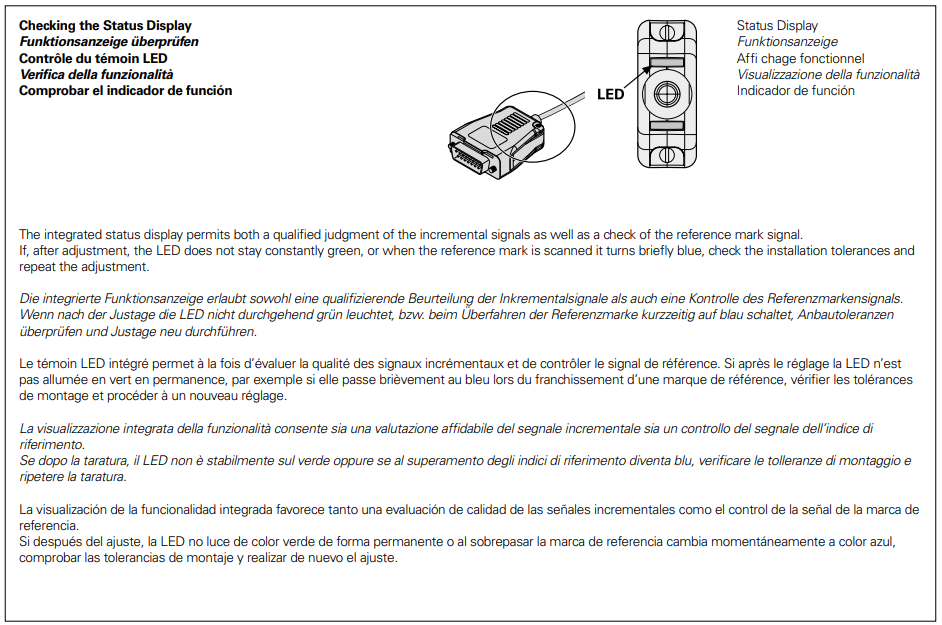

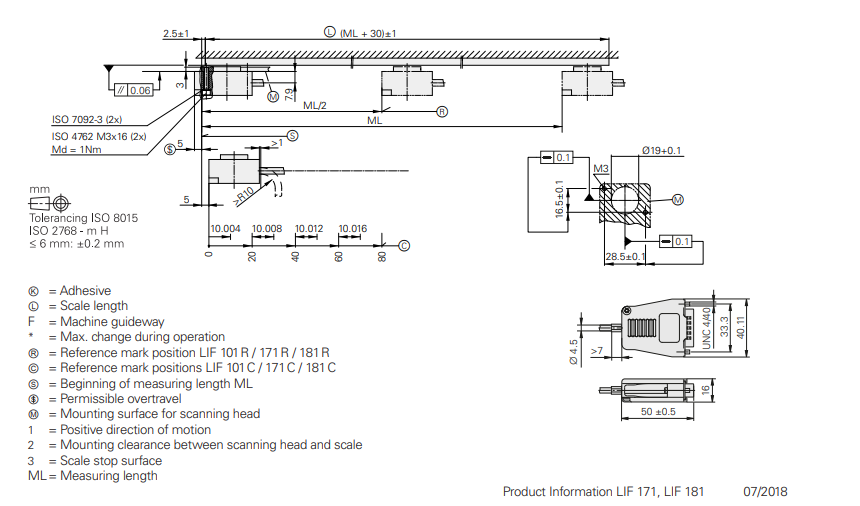

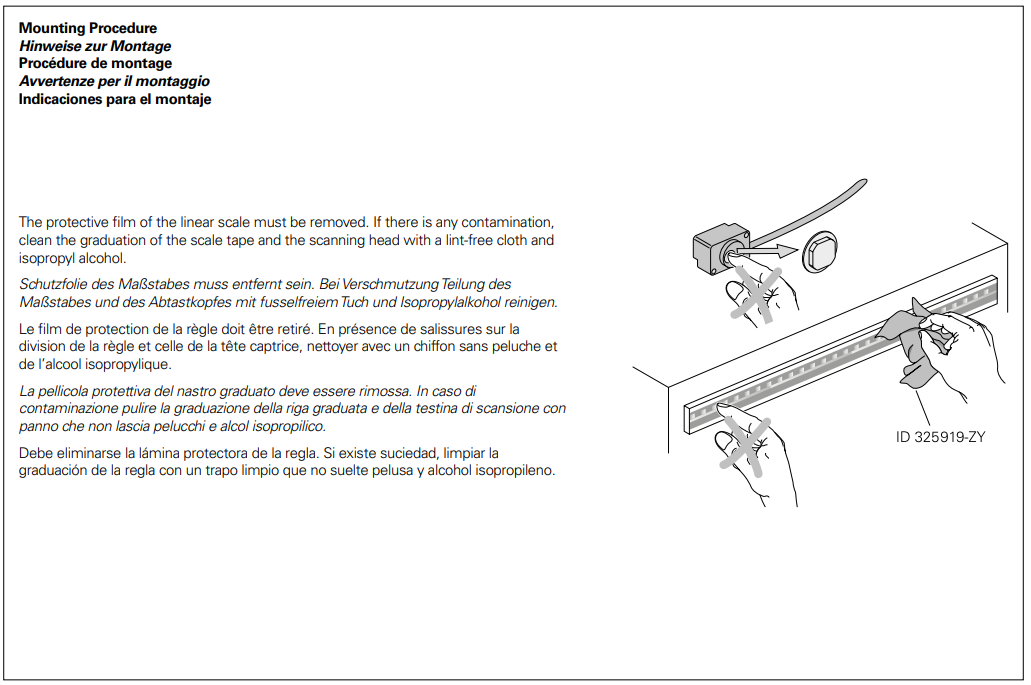

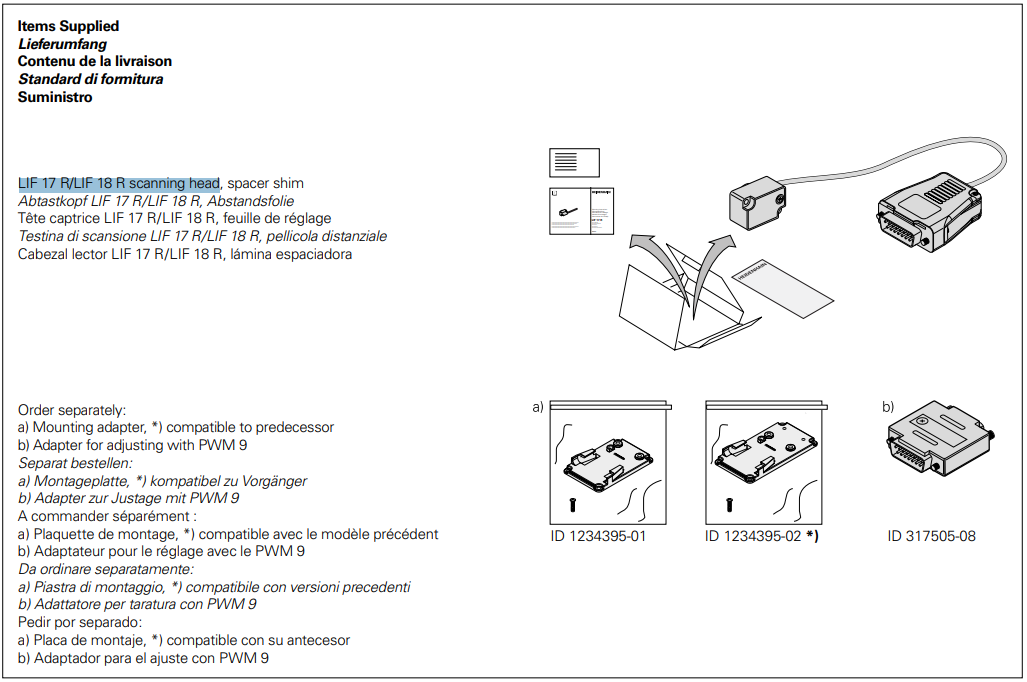

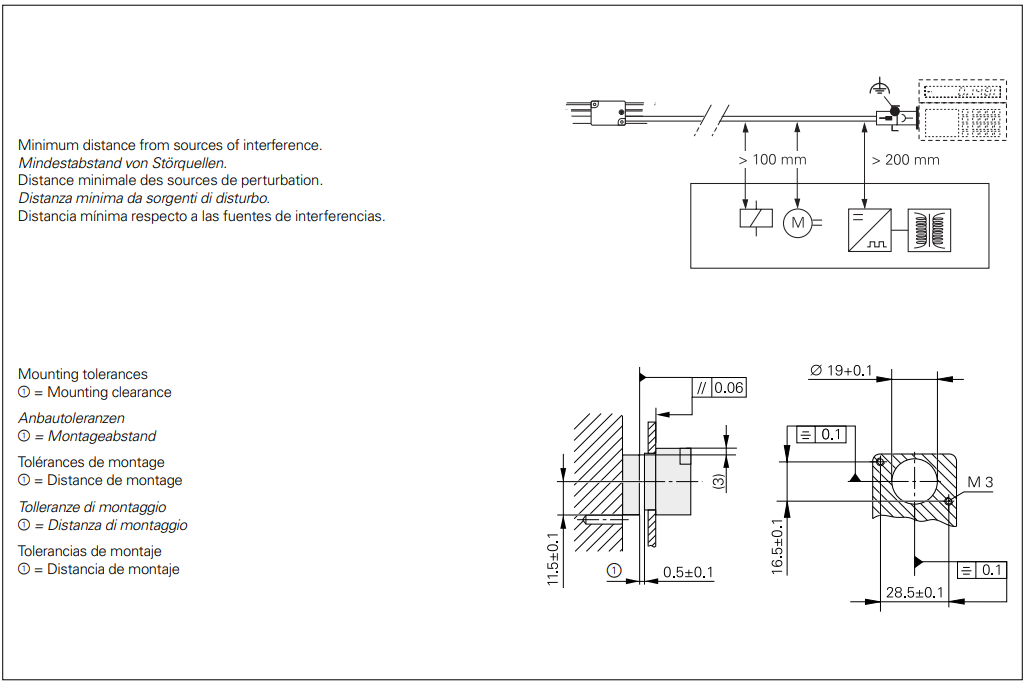

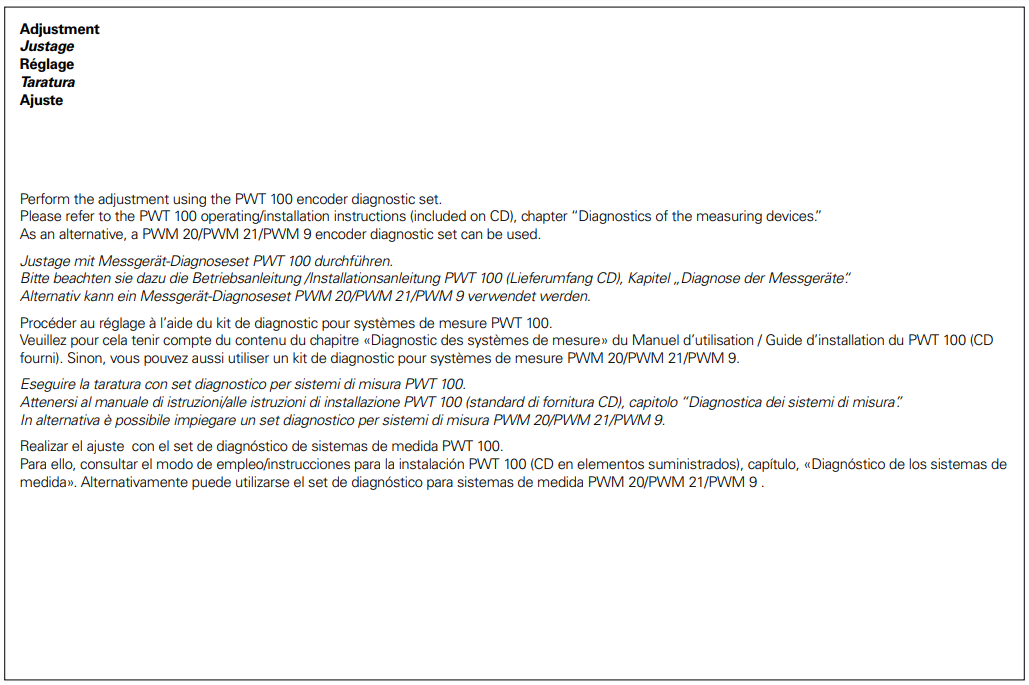

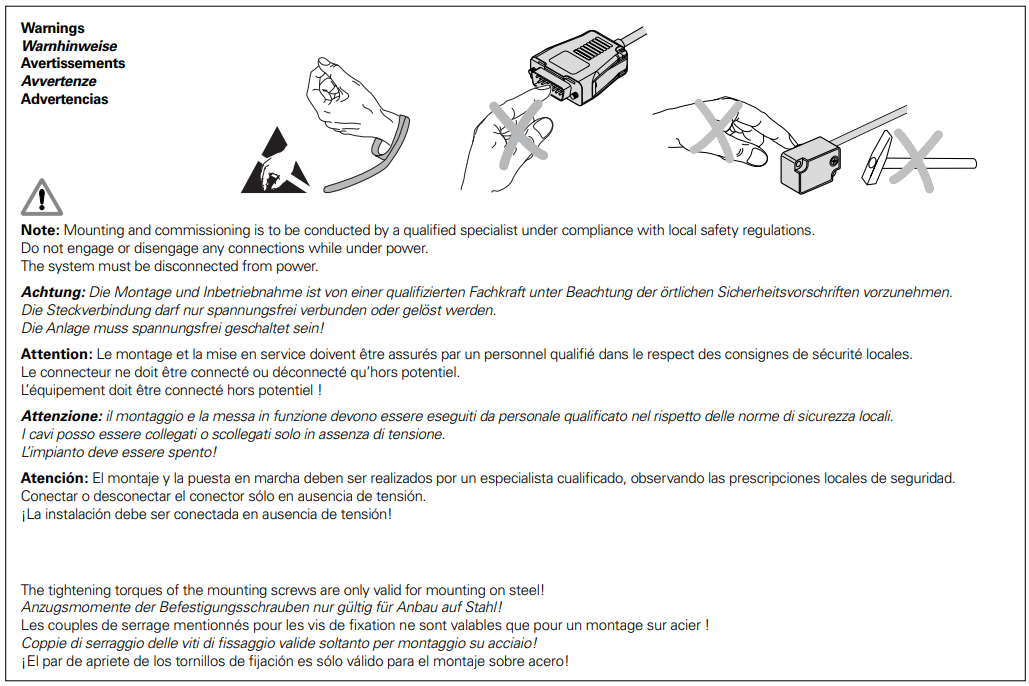

AK LIF 18R
(ID: 1180870-01)
Scanning head for LIF incremental exposed linear
encoder

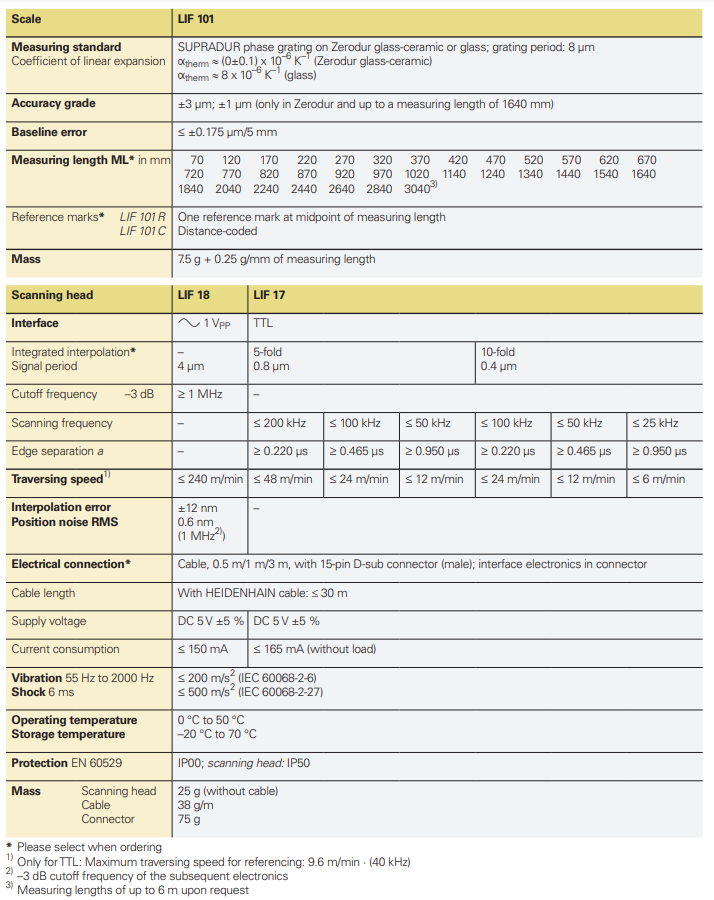

Signal period:
4.000 µm
Thermal coefficient of
linear expansion:
~ 8·10-6K-1

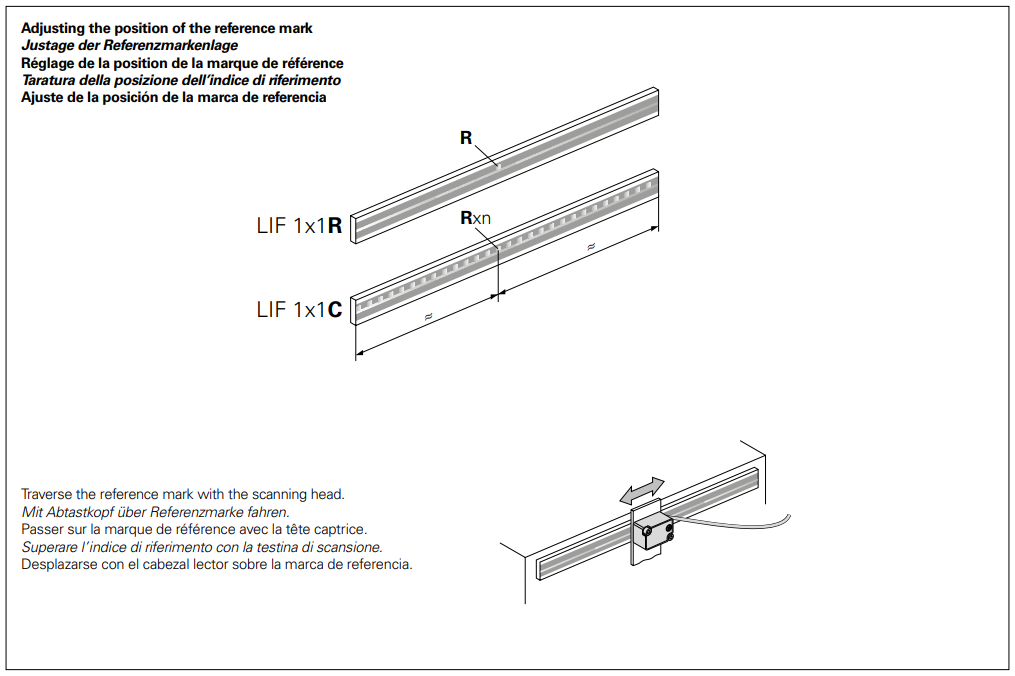

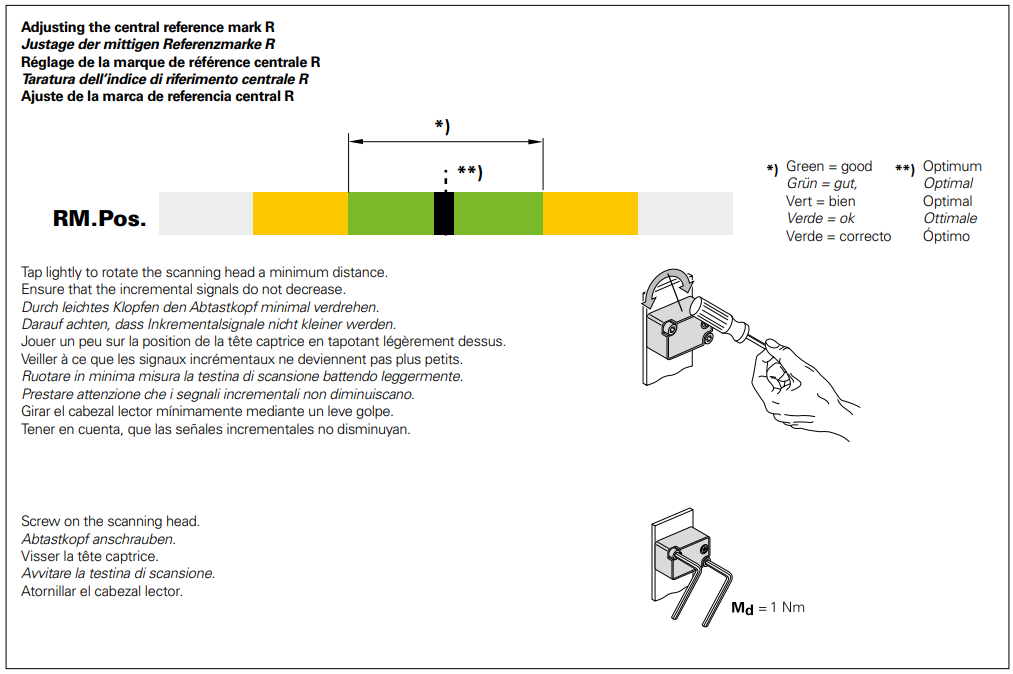

Reference mark:
active

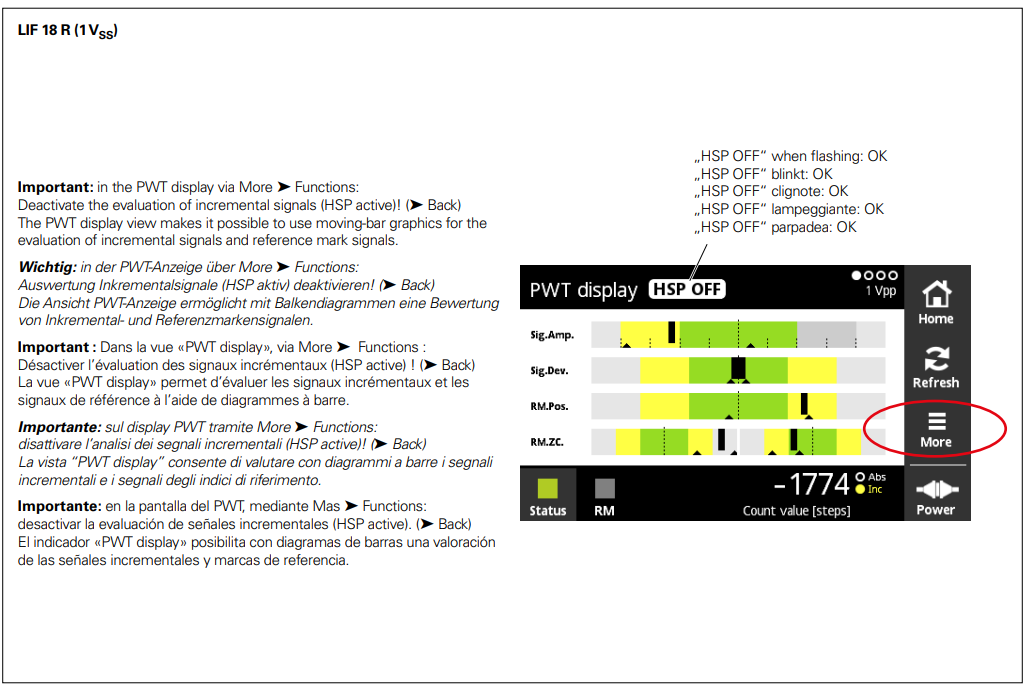

Output signal:
sinusoidal voltage
signals (1 Vpp)
Cutoff frequency (-3 dB):1000.00 kHz
Power supply:
5 V (+-5 %)

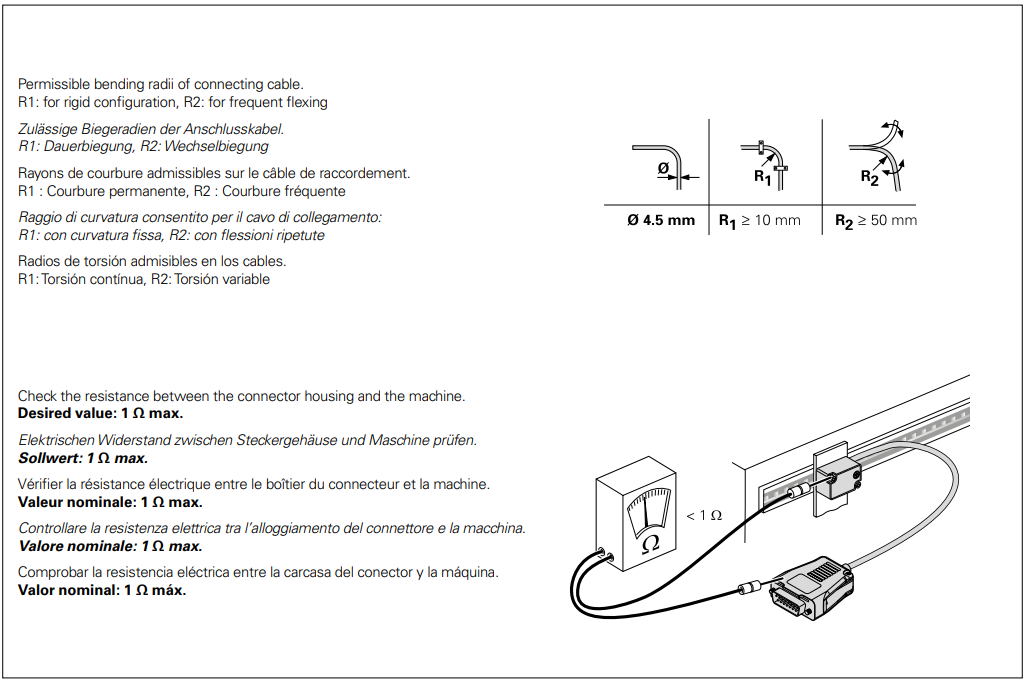

Cable type:
PUR Ø 4.5 mm flexible
Cable length:
0.50 m
Electrical connection:
D-sub connector, 2-row,
metal housing, design A,
with locking screws,
male, 15-pin

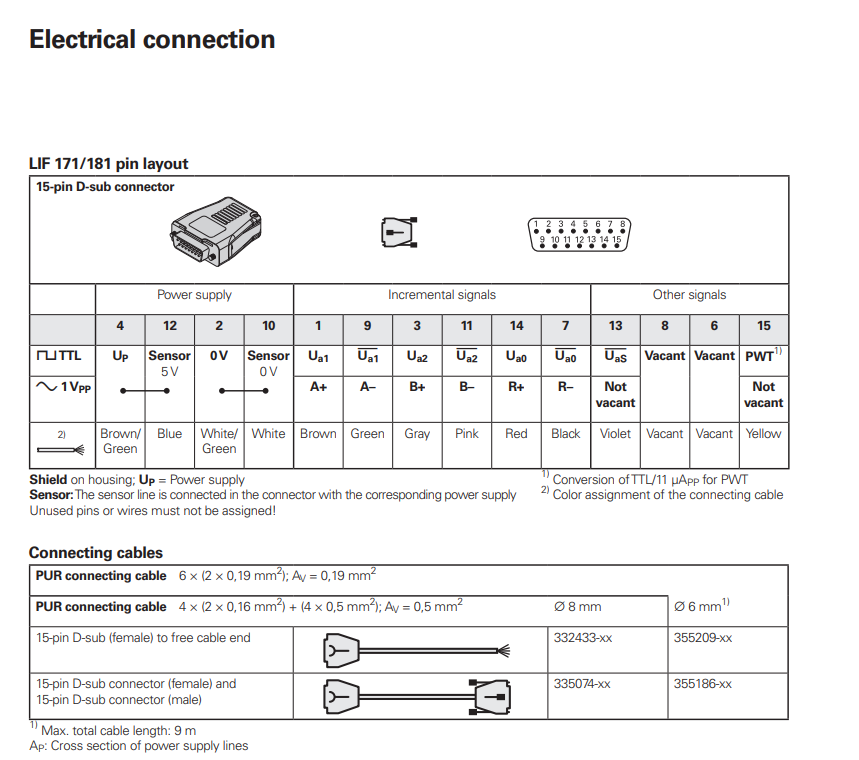

Pin configuration:
D749491
(ID: 1180870-02)
Scanning head for LIF incremental exposed linear
encoder
Signal period:
4.000 µm
Thermal coefficient of
linear expansion:
~ 8·10-6K-1
Reference mark:
active
Output signal:
sinusoidal voltage
signals (1 Vpp)
Cutoff frequency (-3 dB):1000.00 kHz
Power supply:
5 V (+-5 %)
Cable type:
PUR Ø 4.5 mm flexible
Cable length:
1.00 m
Electrical connection:
D-sub connector, 2-row,
metal housing, design A,
with locking screws,
male, 15-pin
Pin configuration:
D749491
