Heidenhain: Absolute Rotary Encoders ROQ 425
Heidenhain: Absolute Rotary Encoders ROQ 425 Absolute rotary encoder (multiturn) with integral bearing for separate shaft coupling

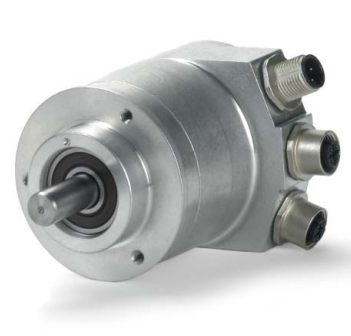

Alternate View
Heidenhain

Price: (Members Only)


Availability: 5 of each in stock
Order #: ROQ425


ID#:

Qty:

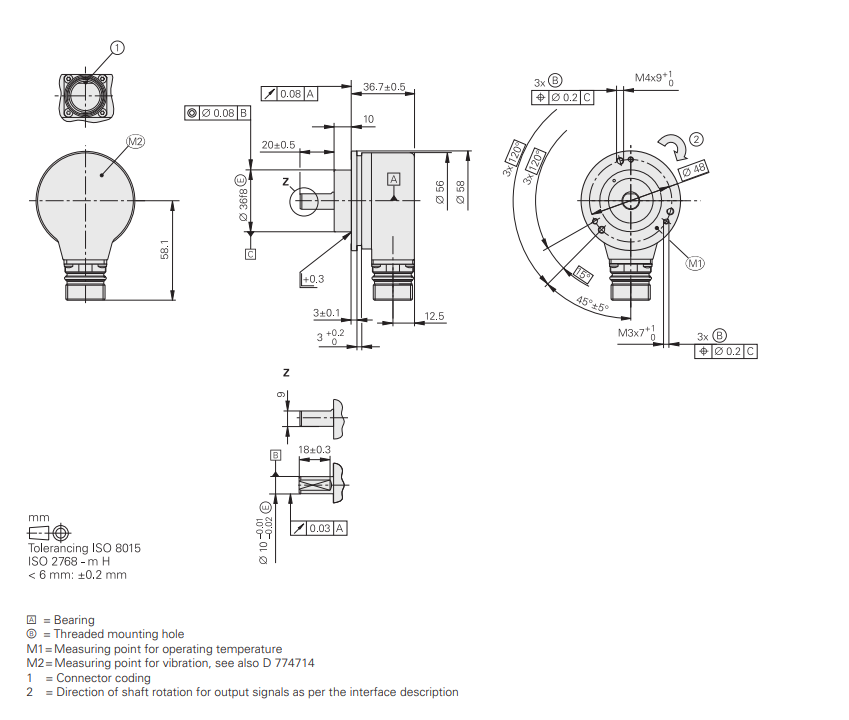

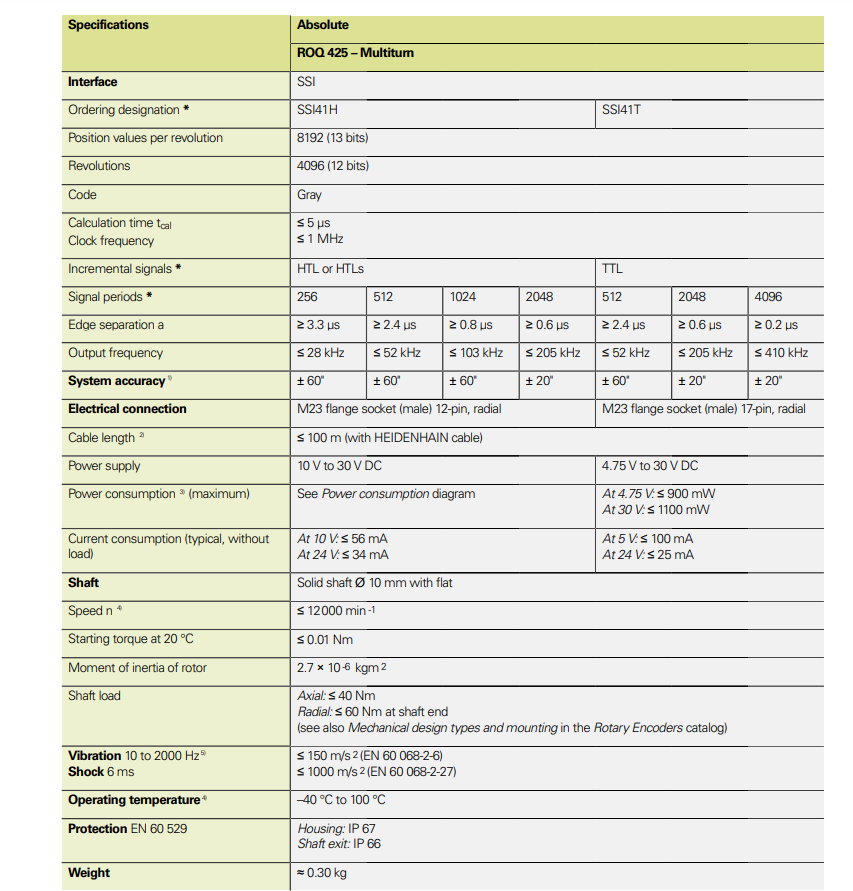

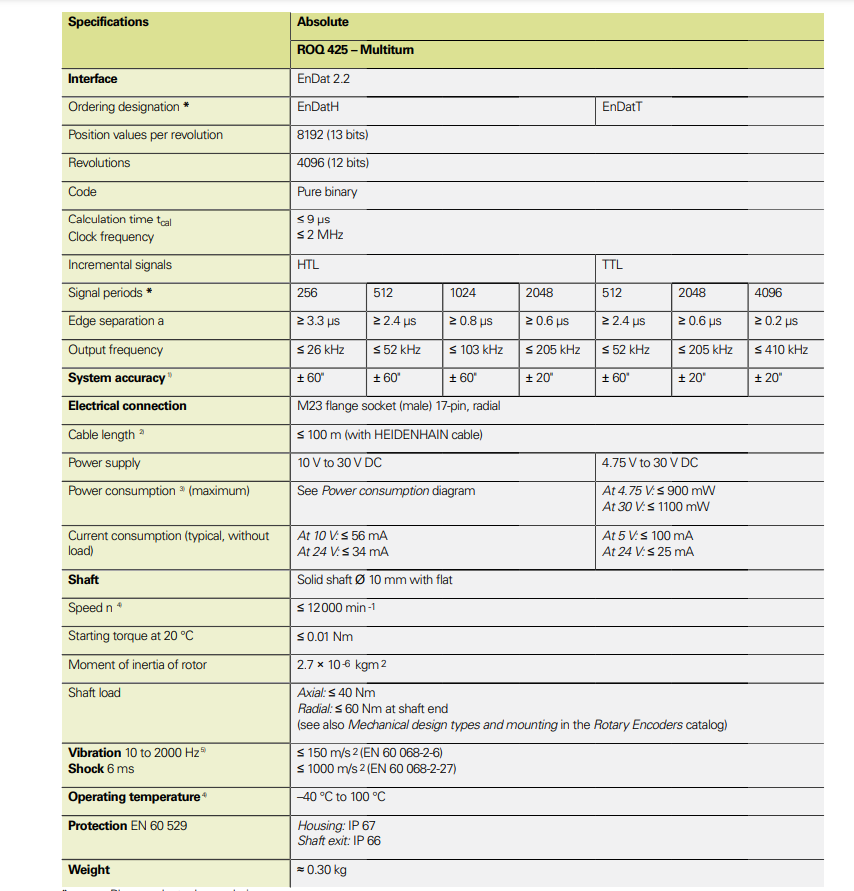

Description Ordering Information Specifications and Drawings


Heidenhain: Absolute Rotary Encoders ROQ 425

Absolute rotary encoder (multiturn) with integral bearing for separate shaft coupling

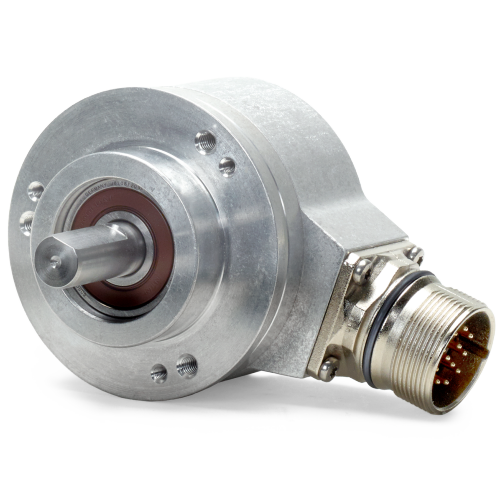

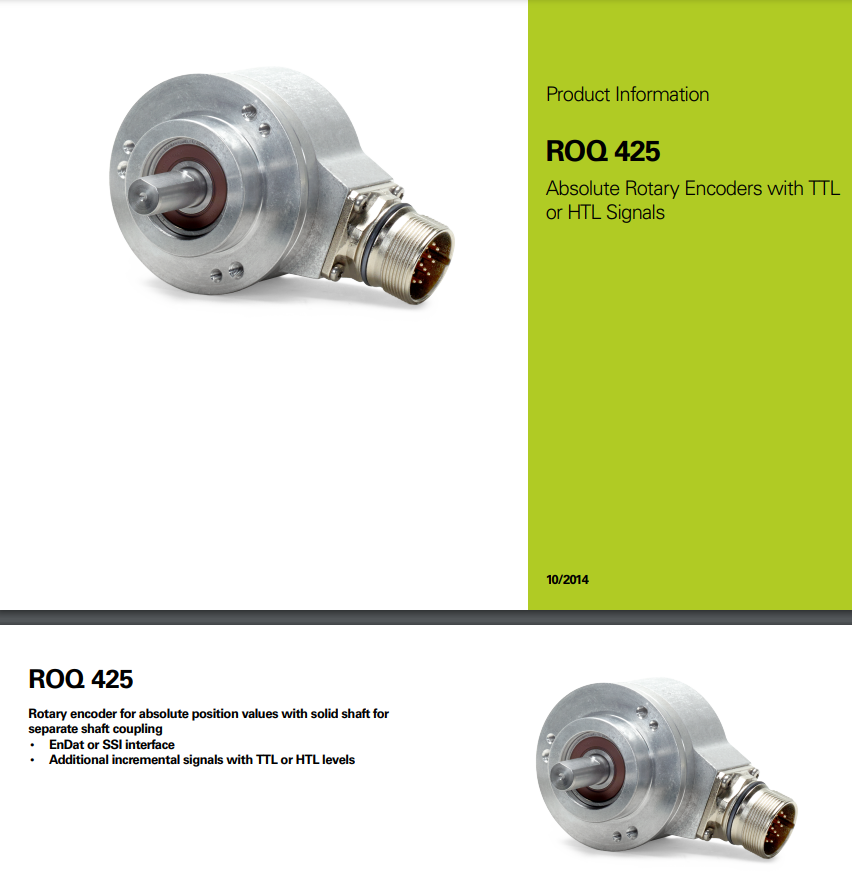

ROQ 425 Rotary encoder for absolute position values with solid shaft for separate shaft coupling

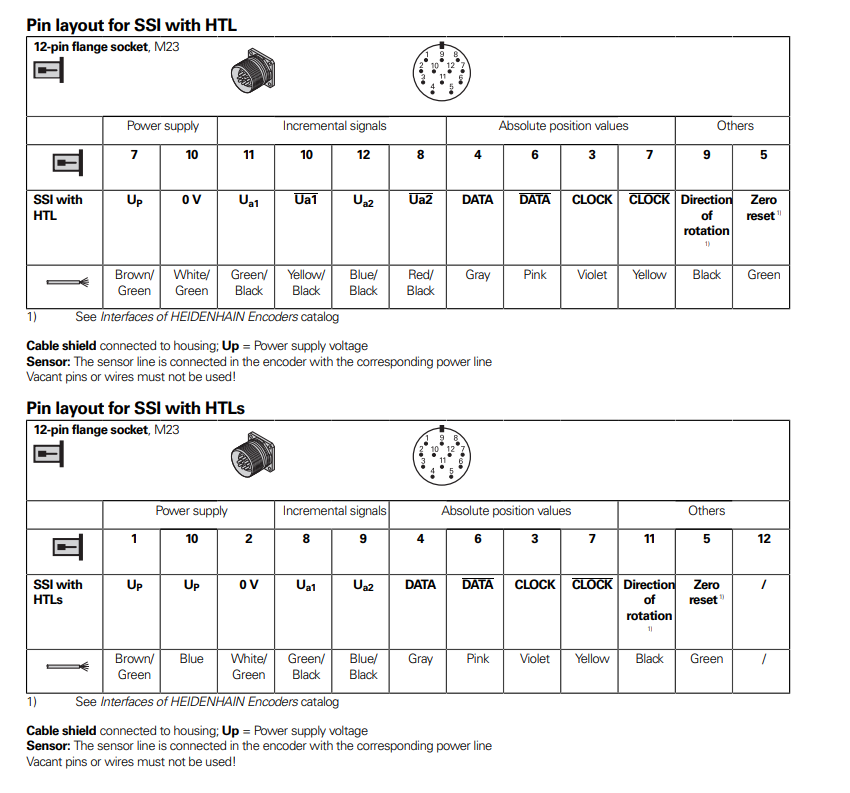

  • EnDat or SSI interface

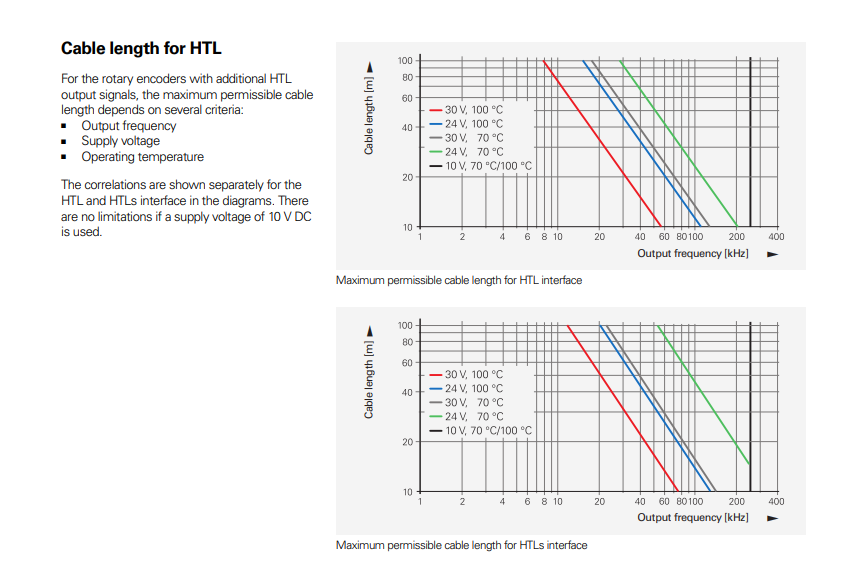

  • Additional incremental signals with TTL or HTL levels


Model No. : ROQ 425

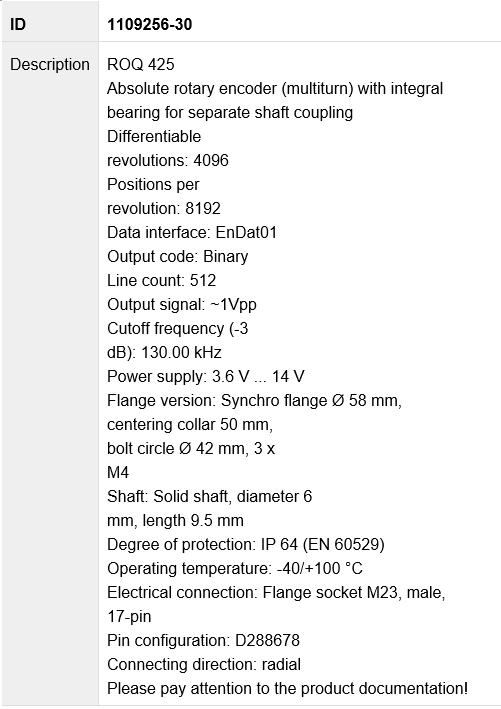

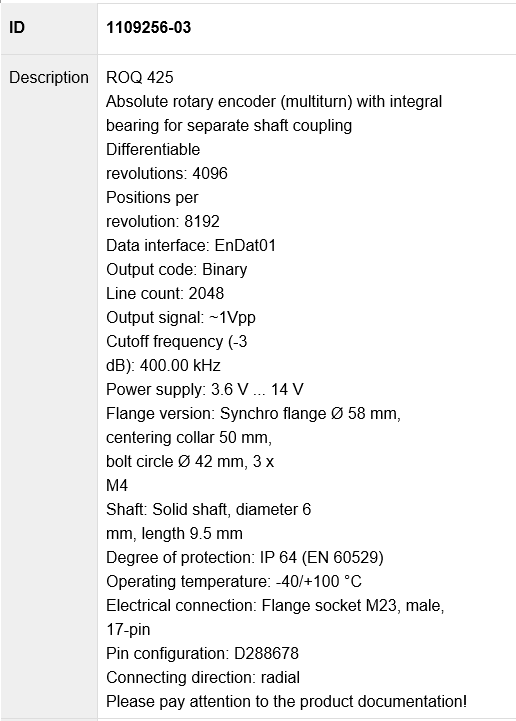

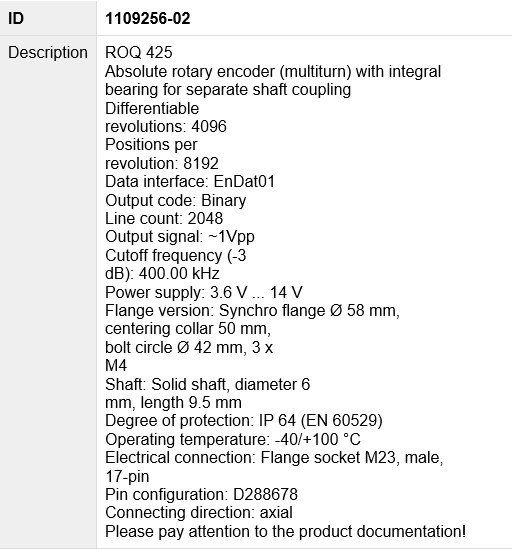

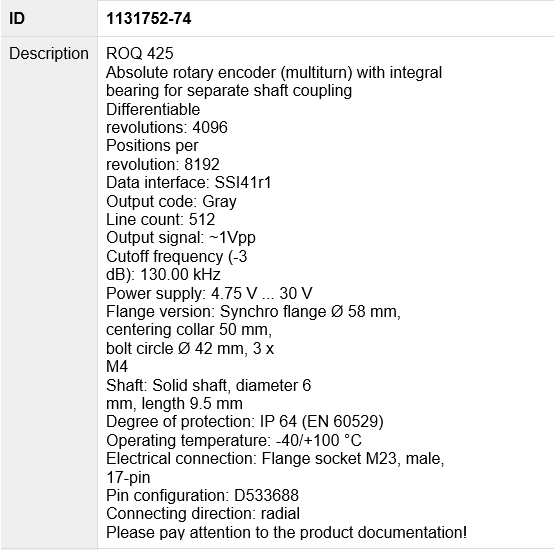

ID#: 1109256-02, 1109256-03, 1109256-30, 1131752-74
