Heidenhain: Adapter Cable for Different Connector Connection (ID: 517776-N2)
Heidenhain: Adapter Cable for Different Connector Connection (ID: 517776-N2)


Price: (Members Only)

Quantity in Stock:8

Order #: 517776-N2
Qty:

Description Specifications and Drawings


Heidenhain: Adapter Cable for Different Connector Connection (ID: 517776-N2)

ID517776-N2
Part NameAPK 02 05 0.25 0TB014 6RS012-39 BK .. 01 1 .. 0.00
Delivery Time10 weeks
Description

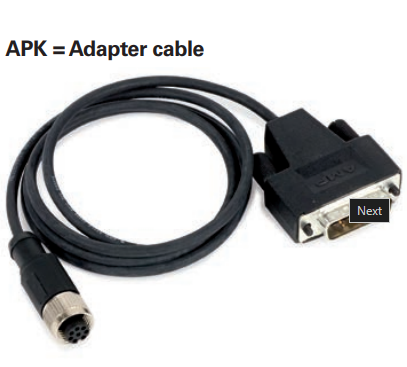

Adapter cable for different connector connection
Cable type:             PUR Ø 6.0 mm
Cable design:           6x2x0.19 mm²
Cable length:           0.25 m
Encoder side:           Coupling M12, 14-pin
Side of subsequent      Mating connector to LC or
electronic:             LS connector, diagonal,
                        male, 12-pin
Additional information

This product contains an SVHC as defined by the REACH Regulation.
