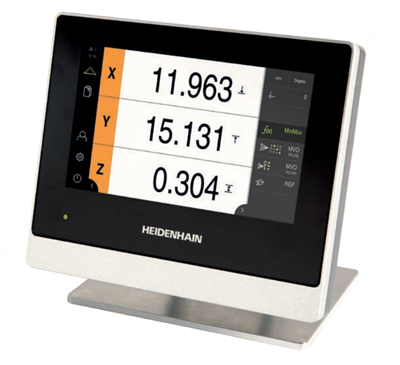

GAGE-CHEK 2000 Evaluation unit for reliable 1-D
measured-value acquisition
The GAGE-CHEK 2000 evaluation unit is particularly well suited
for positioning tasks on measuring devices and positioning equipment, and for
the retrofitting of measuring machines for the capture and transfer of data to
a PC.
Design
Thanks to its rugged industrial design, the GAGE-CHEK 2000 is
superbly suited for applications in measuring rooms as well as in harsh
production environments. Its slim aluminum housing with integrated power
adapter and fanless passive cooling system is exceptionally sturdy and
resilient. The unit’s straightforward touchscreen, made of specially hardened
glass, supports multitouch gesture control and permits operation with gloves.
Functions
The logical arrangement of menus and function elements
provides intuitive user guidance that supports you in the use of the various
functions. Along with the typical functions of an evaluation unit, such as
zeroing and preset setting, the GAGE-CHEK 2000 also offers the following useful
features:
• Configurability of each axis for length or angle display
• Measurement series with recording of minimum and maximum
values
• Simple switching of the counting direction
• Measured-value output—either manually, continuously, or when
triggered by a touch probe
You can transfer the captured measured values to a PC via the
data interface.
Software options
Software options allow you to adapt the range of functions of
the GAGE-CHEK 2000 to your given requirements. You can enable these software
options by entering a license key. Please contact HEIDENHAIN for more
information.
Intuitive display
All of the information you need is displayed in a clean and
easy-to-read layout on the unit’s high-resolution, 7-inch screen. Only those
functions that are actually available within a given context and situation are
shown. The self-explanatory operating controls provide intuitive user guidance.
