Heidenhain: Incremental Rotary Encoders ROD 486

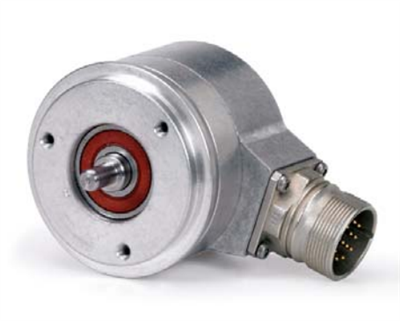

Heidenhain: Incremental Rotary Encoders ROD 486 (ID: 376886-31)

Heidenhain

Price: (Members Only)


Availability: Usually Ships in 2 to 3 Business Days
Order #: ROD486


ID#:

Qty:
Description Ordering Information Specifications and Drawings


Heidenhain: Incremental Rotary Encoders ROD 486

Incremental rotary encoders with integral bearing for separate shaft coupling

Angle encoders with integral bearing, for separate shaft coupling

ROD angle encoders with solid shaft are particularly suited to applications where higher shaft speeds and larger mounting tolerances are required. The shaft couplings allow axial tolerances of ± 1 mm.


Angle Encoders with Integral Bearing

HEIDENHAIN angle encoders with integral bearing are characterized in particular by very high system accuracy. The integral bearing in the encoders eliminates any effect on measuring accuracy from the bearing of the machine components.

The integrated stator coupling in the RCN/RON/ECN series encoders guarantees lowest possible error from the effect of tolerances in the shaft coupling. All angle encoders with integral bearings feature shaft seals that ensure resistance to contamination (IP64 protection). These encoders enjoy an entire spectrum of possible applications in machine tools, measuring machines, telescopes, printing machines and many other areas.


ROD Features:

  • Incremental measuring method

  • Solid shaft

  • Separate shaft coupling for large mounting tolerances

  • System accuracy does not include the deviation caused by the shaft connection

  • Typical field of application: Rotational axes


Model No.: ROD 486

ID#: 376886-07, 376886-22, 376886-31
