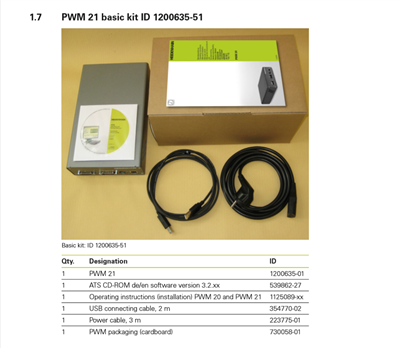

Heidenhain: Measuring and Test Equipment Kit ( PWM21 ) (Kit ID: 1200635-51)
Analysis for HEIDENHAIN Encoders
HEIDENHAIN encoders provide all information necessary for commissioning, monitoring and diagnostics. PWM inspection devices and PWT testing devices are available specifically for analyzing the encoders. Testing devices are used for checking the function of encoders. The PWTs have fewer functions than the PWMs, much higher measuring tolerances and cannot be calibrated. There are two types of diagnostics, depending on how the devices are integrated:
Encoder diagnostics: The encoder is connected directly to the test or inspection device. This makes a comprehensive analysis of encoder functions possible.
Diagnostics in the control loop: The PWM phase meter is looped into the closed control loop (e.g. through a suitable testing adapter). This makes a real-time diagnosis of the machine or system possible during operation. The functions depend on the interface.

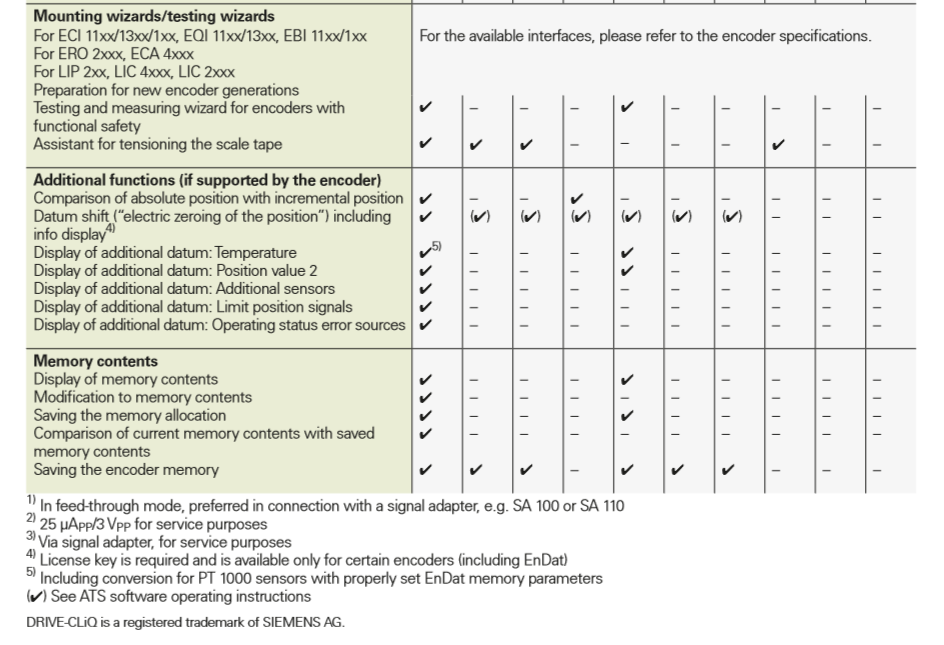

PWM21 ATS Software

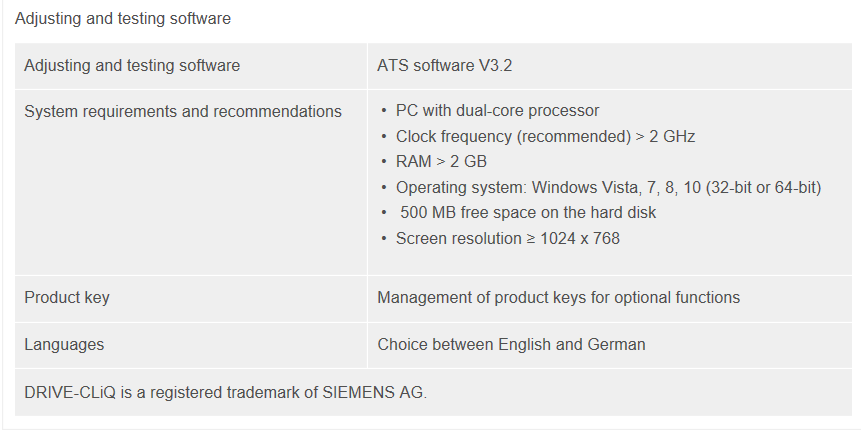

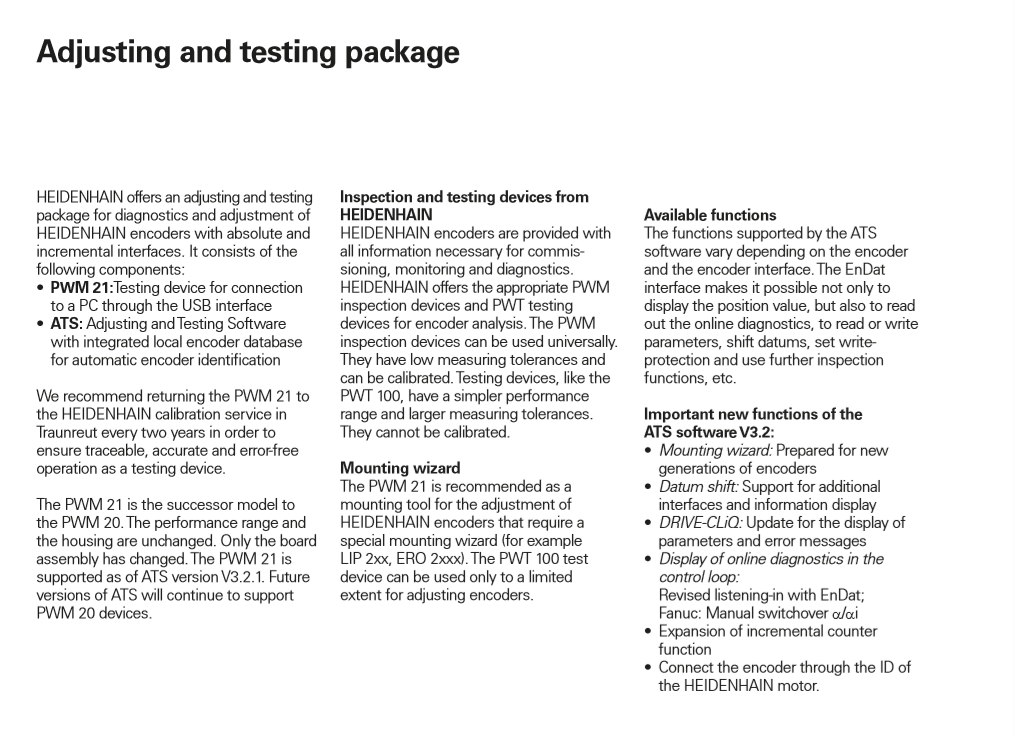

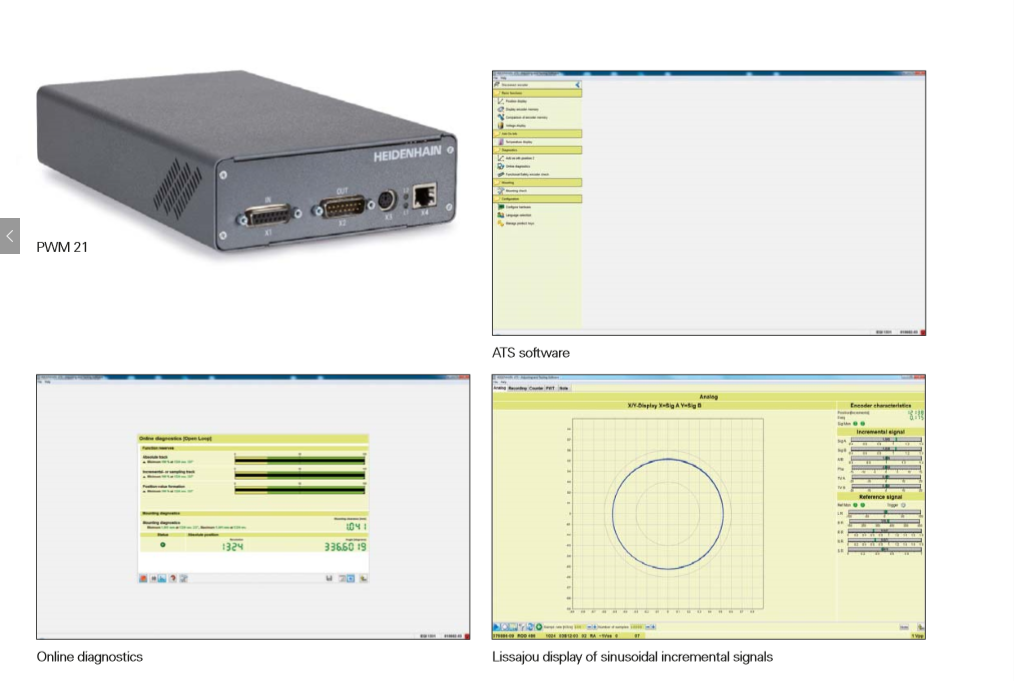

HEIDENHAIN offers an adjusting and testing package for diagnostics and adjustment of HEIDENHAIN encoders with absolute and incremental interfaces. It consists of the following components:• PWM21:Testing device for connection to a PC through the USB interface.• ATS: Adjusting and Testing Software with integrated local encoder database for automatic encoder identification.
