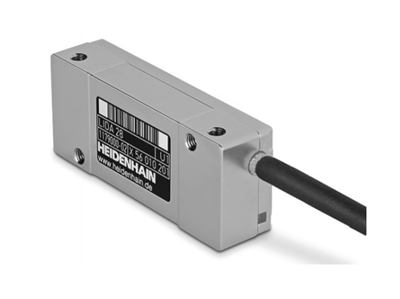

Heidenhain: Scanning Head for LIDA incremental exposed Linear Encoder (AK LIDA 27)
Heidenhain: Scanning Head for LIDA Incremental Exposed Linear Encoder (AK LIDA 27)


Price: (Members Only)


Availability: Usually Ships in 1 to 2 Business Days
Order #: AK-LIDA-27


ID#:


Qty:
Description Specifications and Drawings


Heidenhain: Scanning Head for LIDA Incremental Exposed Linear Encoder (AK LIDA 27)


ID# 1178994-03

Signal period: 200.000 µm

Reference mark: active

Output signal: Square-wave signals, TTL levels with 10-fold interpolation

Max. scanning frequency: 50.00 kHz

Reference pulse width: 90 °

Fault detection signal: for disturbance LOW

Power supply: 5 V (+-10 %)

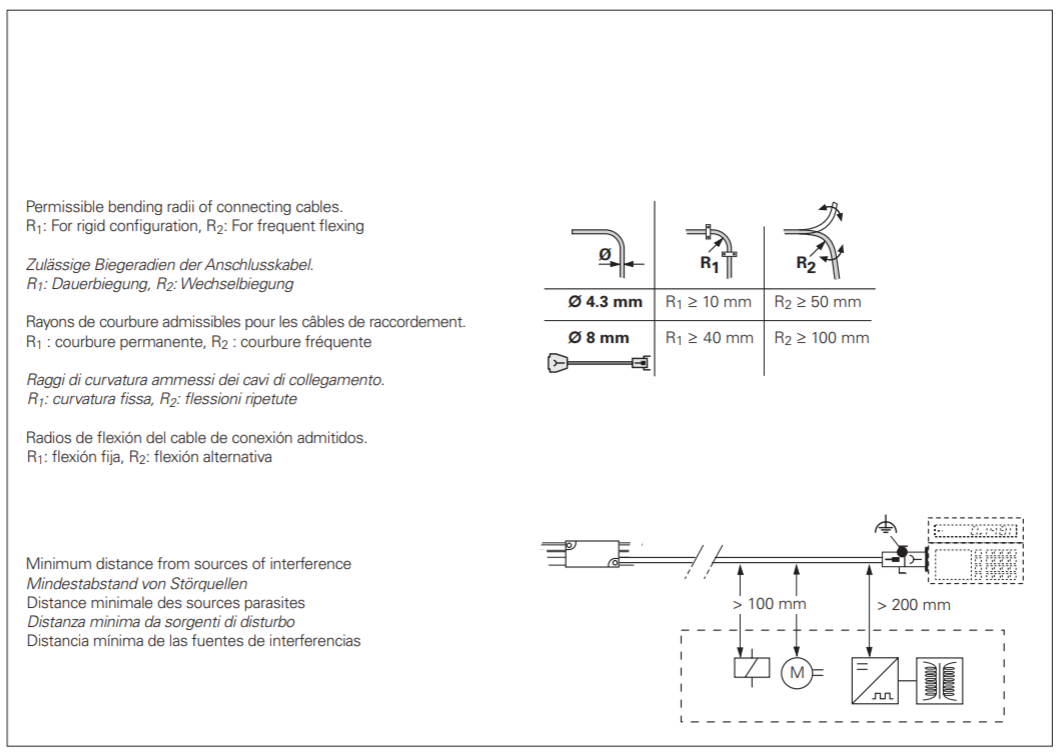

Cable type: PUR Ø 4.3 mm

Cable length: 3.00 m

Electrical connection: D-sub connector, 2-row, with locking screws, male, 15-pin

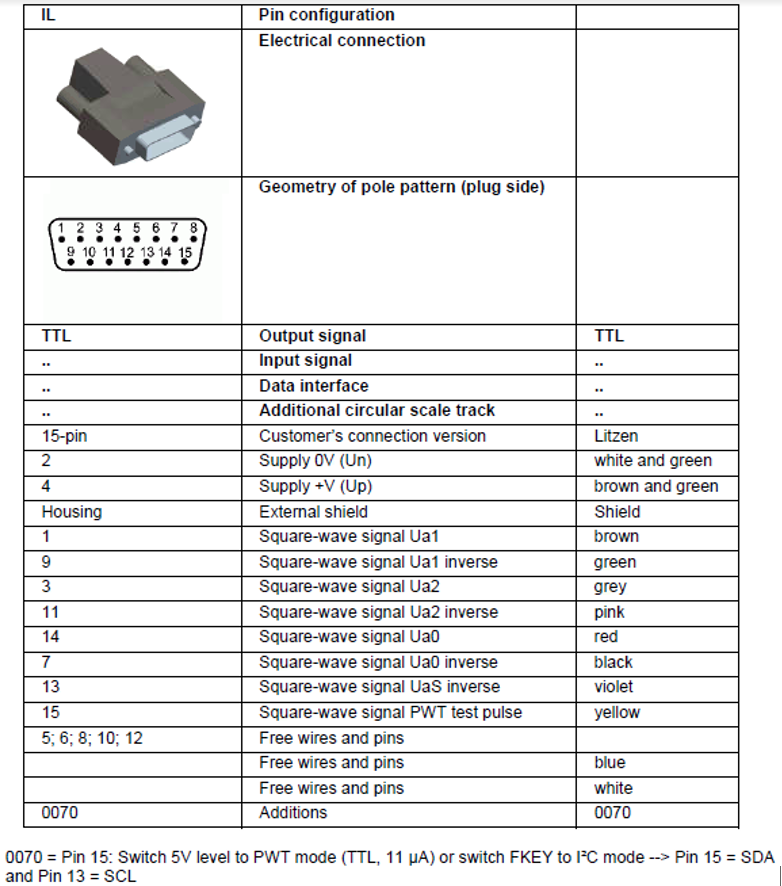

Pin configuration: D1181770

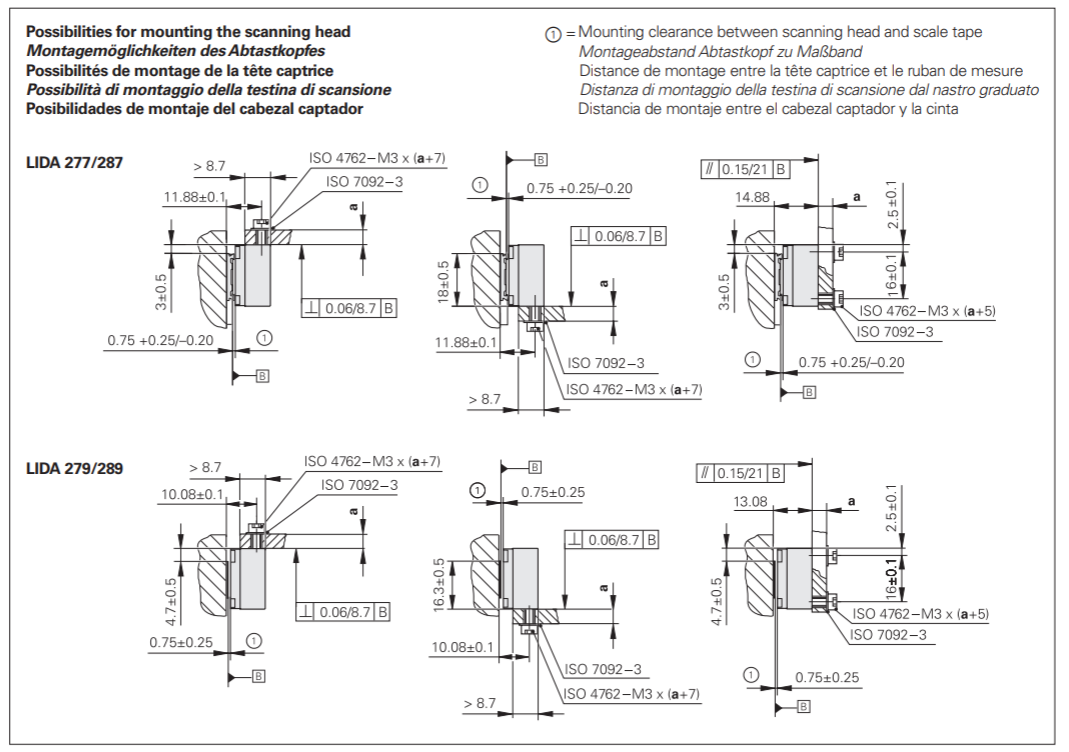

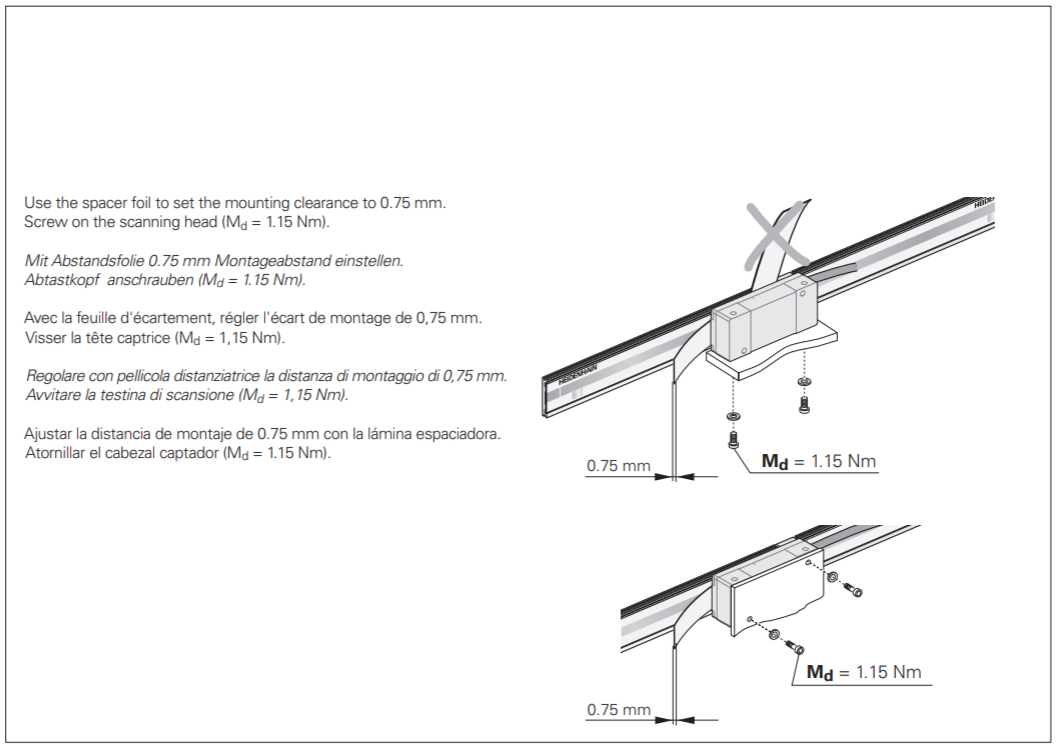

Fastening type: Screw-on type
