ESI Motion: High-Speed & High-Current Servo Solution (Roadwind)

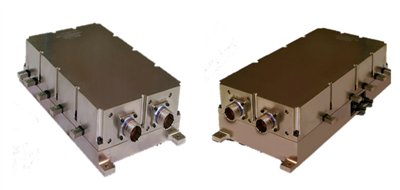

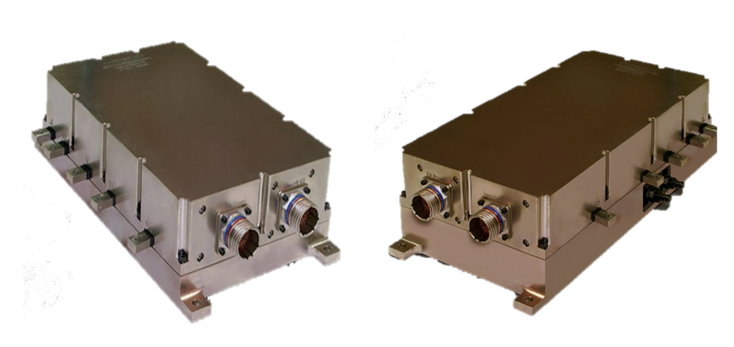

High-Speed & High-Current Servo Solution (Roadwind)

Request for Price, Lead time, and quantity



Roadwind operates at 12V to 150V, -40 degree to 71 degree, and is ideal for ground defense, aerospace autonomous vehicles, racing, and specialized industrial applications

Price: (Members Only)


Availability: Subject to availability

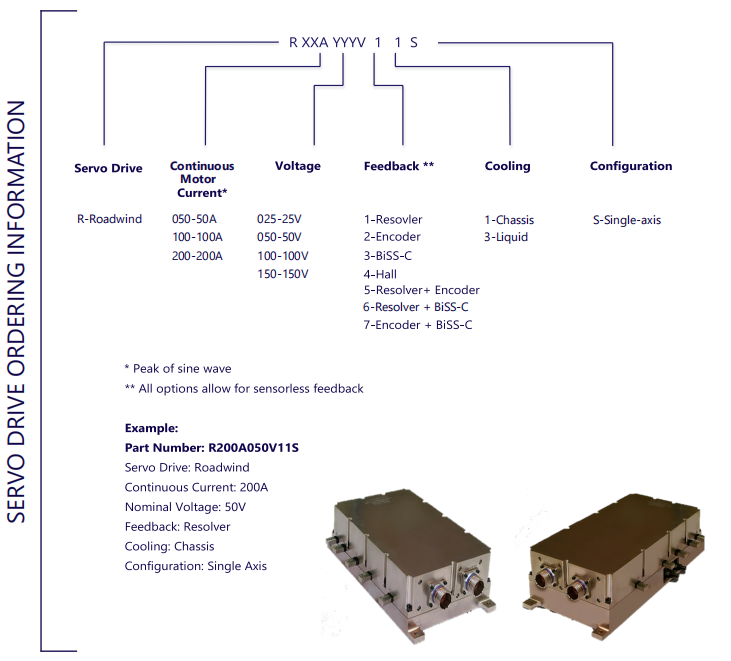

Order #: RXXAYYYV11S


Model*:


.
Description Ordering Information Specifications and Drawings


ESI Motion: High-Speed & High-Current Servo Solution ( Roadwind)
High-speed servo applications often require a unique set of capabilities that are beyond what’s available in most of today’s drives. Fortunately, ESI’s Roadwind line of drives is designed for exactly this area, offering unmatched power density, speed ratings, and packaged in ESI Motion’s ruggedized casing.

On the cutting edge of servo technology, the Roadwind series satisfies the most speed-hungry applications, Roadwind operates at 12V to 150V, -40degree to 71degree and is ideal for ground defense, aerospace autonomous vehicles, racing and specialized industrial applications. The fully-integrated Roadwind system combines all crucial functions into one compact ruggedized case.

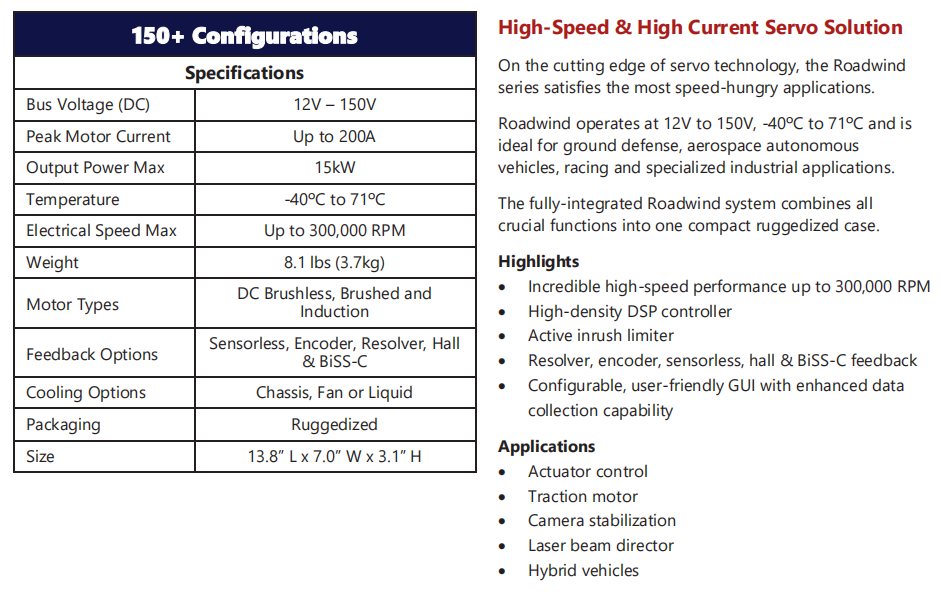

Specifications:

BUS VOLTAGE (DC)

12V – 150V

PEAK MOTOR CURRENT

Up to 200A

OUTPUT POWER MAX

15kW

TEMPERATURE

-40ºC to 71ºC

ELECTRICAL SPEED MAX

Up to 300,000 RPM

WEIGHT

8.1 lbs (3.7kg)

FEEDBACK OPTIONS

Sensor less, Encoder, Resolver, Hall & BiSS-C

COOLING OPTIONS

Chassis, Fan or Liquid

SIZE

13.8” L x 7.0” W x 3.1” H
