ESI Motion: Highly Capable Ultralight Servo Drive ( Wolverine)
Highly Capable Ultralight Servo Drive(Wolverine)

Request for Price, Lead time, and quantity

Bus Voltage (DC) 10V to 610V, Peak Current up to 65A, Output Power 12kW, Maximum Electrical Speed 75,000 RPM, Supports Communication Interface: RS-422, CAN, Motor Types: DC brushless, brushed and induction, Motor Feedback Types: sensorless, encoder, resolver, hall and BiSS-C

Price: (Members Only)


Availability: Subject to availability

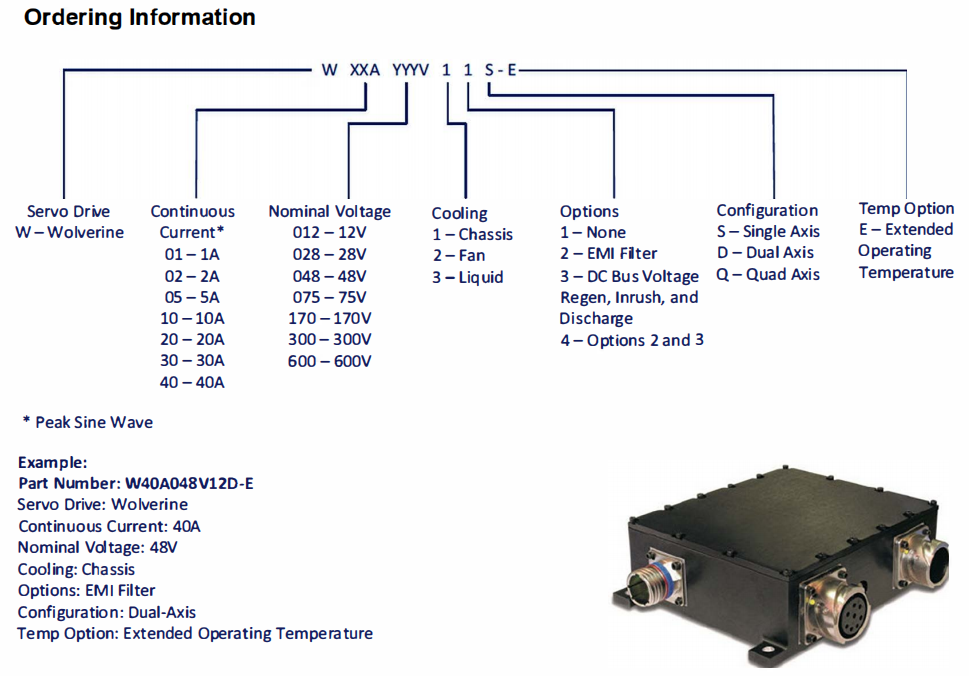

Order #: WXXAYYYVXXX-E


Model*:


.

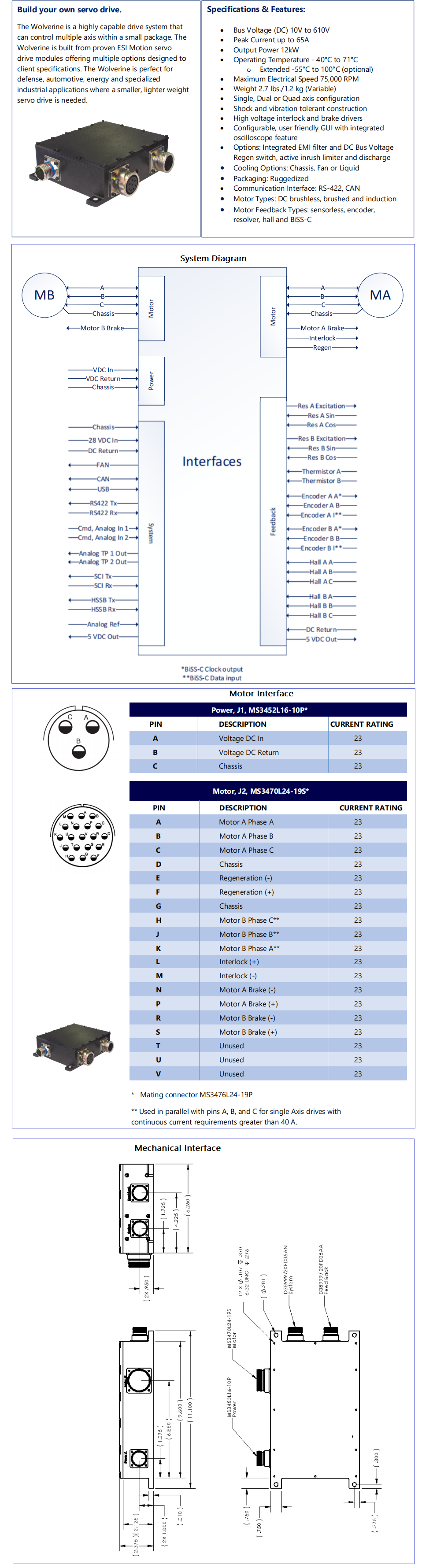

Description Ordering Information Specifications and Drawings


ESI Motion: Highly Capable Ultralight Servo Drive(Wolverine)

The Wolverine is a highly capable drive system that has the ability to control multiple axes within a small package. The Wolverine is built from proven ESI servo drive modules offering multiple options designed to client specifications. The Wolverine is perfect for defence, automotive, energy and specialized industrial applications where a smaller, lighter weight servo drive is needed.
The Wolverine incorporates our rugged controller and power driver modules into a single, versatile unit. With multiple feedback options and extreme operating range, this servo controller is designed specifically for defence, automotive. System that prioritize and speed are all candidates for the Wolverine, This servo design allows projects to retain maximum mobility, agility, and pinpoint accuracy even in the most demanding and punishing of environments.
The Wolverine Servo Drive is a semi-custom, low cost alternative that incorporates our rugged controller and servo drive modules into a small package. The following describes both the electrical and physical interfaces for the Wolverine Servo Drive. Included in this document is information necessary to integrate the Wolverine Servo Drive with other system components.

Networking has been emphasized in the Wolverine Servo Drive. The Wolverine Servo Drive can be connected to the following two types of networks:

• RS-422

• Controller Area Network (CAN)

Both networks are ideal for real-time embedded networking. They have been proven to be stable and robust as well as flexible. The Wolverine Servo Drive can easily be modified through software to accept commands and report feedback without hardware modification.

Specifications:

Bus Voltage (DC) 10V to 610V

Shock and vibration tolerant construction

Peak Current up to 65A

High voltage interlock and brake drivers

Output Power 12kW

Options: Integrated EMI filter and DC Bus Voltage

Operating Temperature - 40°C to 71 °C

Cooling Options: Chassis, Fan or Liquid

Extended -SS°C to 100°C (optional)

Packaging: Ruggedized

Maximum Electrical Speed 75,000 RPM

Communication Interface: RS-422, CAN

Weight 2.7 lbs./1.2 kg (Variable)

Motor Types: DC brushless, brushed and induction

Single, Dual or Quad axis configuration

Motor Feedback Types: sensor
