Home > Brands > LS Mecapion > Servo Drives >

LS Mecapion: L7NHB EtherCat Servo Drive,AC380-480V
L7NHB EtherCat Servo Drive,AC380-480V

Request Quantity Discount Over 5pcs

Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: L7NHB-ETHERCAT-DRIVE


Model No.:


.

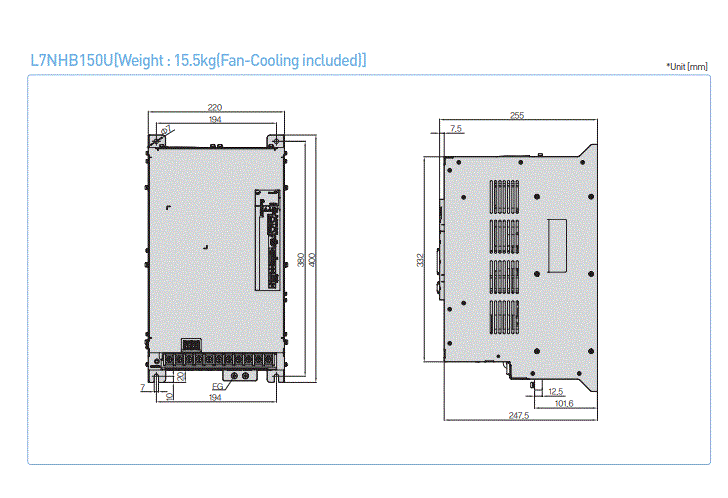

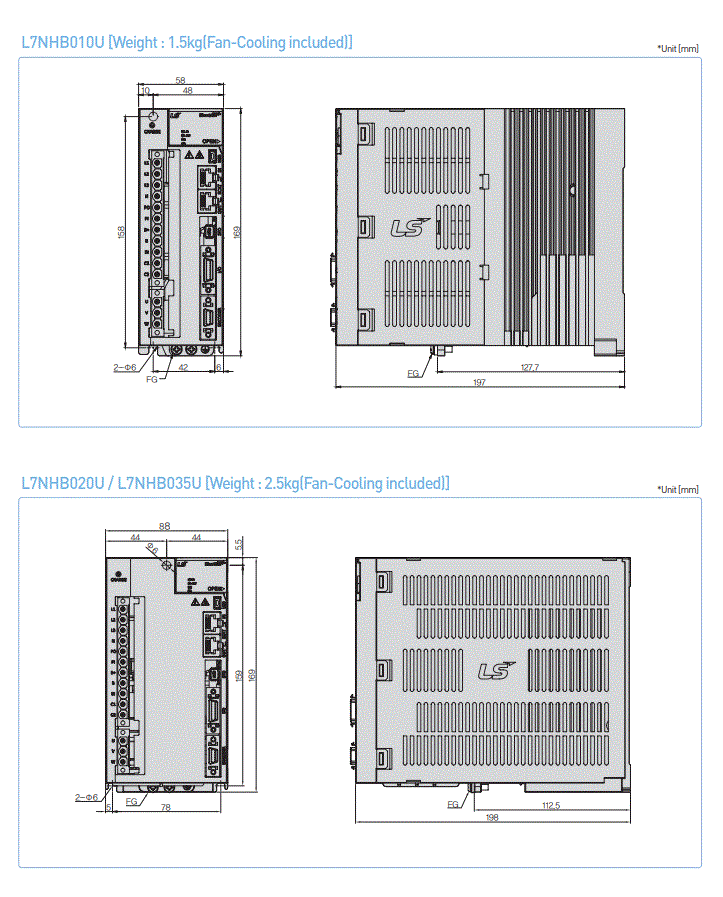

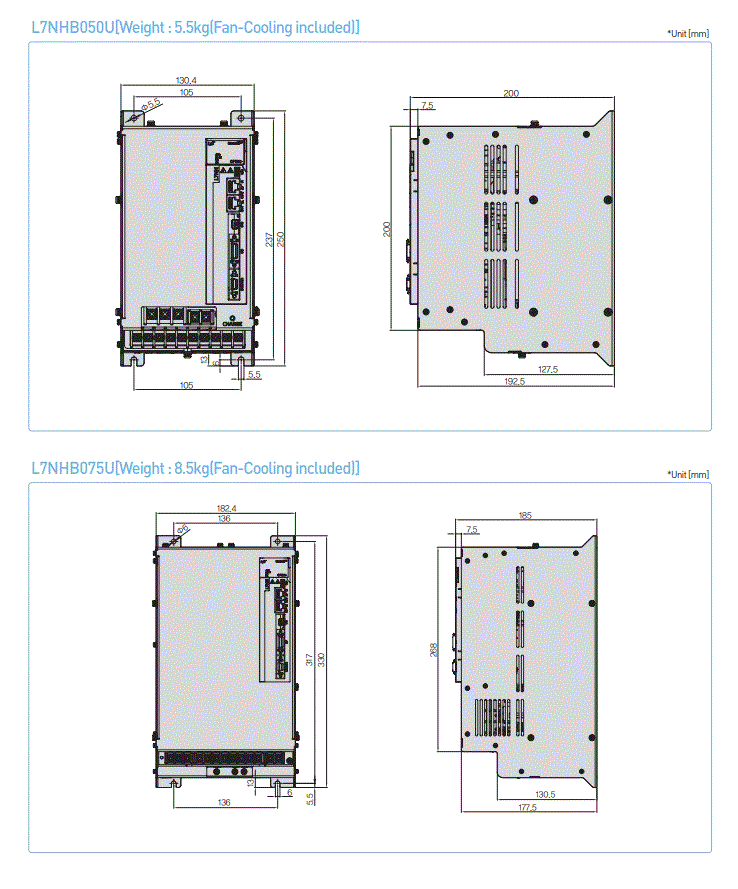

Description Ordering Information Specifications and Drawings


LS Mecapion: L7NHB Servo Drive

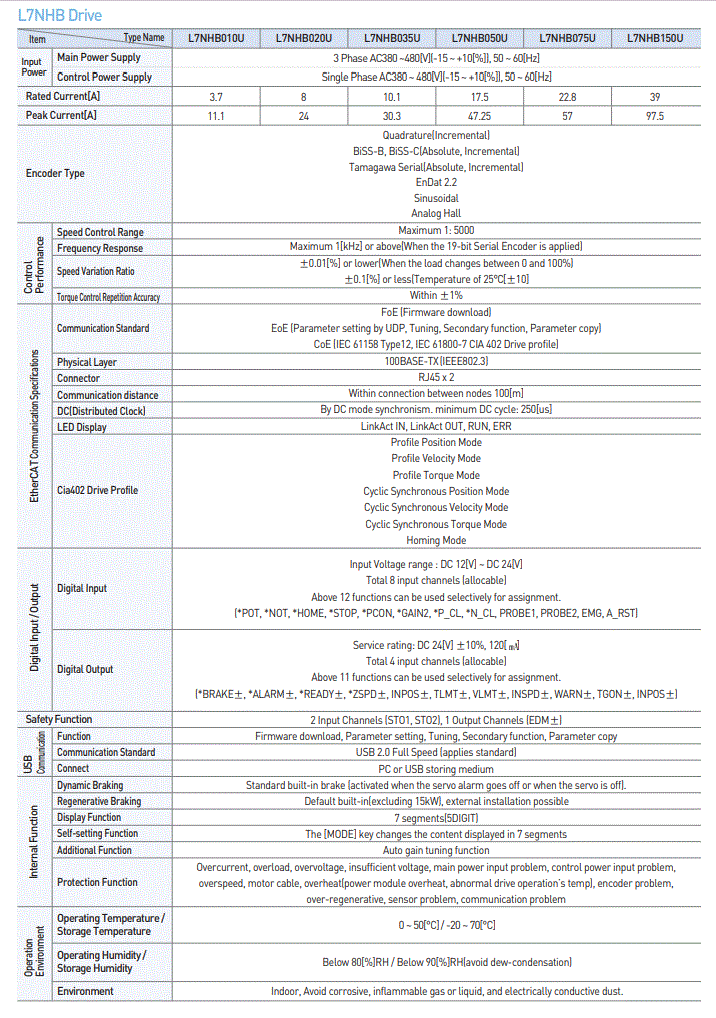

Specifications:
L7NHB

  • Input Power: AC 380[V]~480[V]

  • Capacity: 1[kW]~15[kW]

  • Rated Current: 3.7[A]~39[A]

  • Encoder: Quadrature(Incremental) , BiSS-B and BiSS-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental), EnDat 2.2, Sinusoidal, Analog Hall

  • Communication Type:FoE (Firmware download) , EoE (Parameter setting by UDP, Tuning, Secondary function, Parameter copy), CoE (IEC 61158 Type12, IEC 61800-7 CIA 402 Drive profile)

  • Cia402 Drive Profile: Profile Position Mode Profile Velocity Mode Profile Torque Mode Cyclic Synchronous Position Mode Cyclic Synchronous Velocity Mode Cyclic Synchronous Torque Mode Homing Mode

    L7NHB Series Price List With Description

    SeriesModelOld ModelDescriptionUnit Price(USD)

    L7NH Drive

    L7NHB010U

    XDL-L7NHB010UE

    3P-400V, 1.0KW,3.7A

    $852.50

    L7NH Drive

    L7NHB020U

    XDL-L7NHB020UE

    3P-400V, 2.0KW,8.0A

    $1120.50

    L7NH Drive

    L7NHB035U

    XDL-L7NHB035UE

    3P-400V, 3.5KW,10.1A

    $1267.50

    L7NH Drive

    L7NHB050U

    XDL-L7NHB050UE

    3P-400V, 15.0KW,17.5A

    $1698.00

    L7NH Drive

    L7NHB075U

    XDL-L7NHB075UE

    3P-400V, 7.5KW,22.8A

    $1987.00

    L7NH Drive

    L7NHB150U

    XDL-L7NHB150UE

    3P-400V, 15.0KW,39.0A

    $3316.50


    Cables and Connectors Accessory purchase link


    Motors Purchase link
L7NH Training
L7NH Training
L7NH Training 3
L7NH Training 4
