LS Mecapion: Low voltage Servo Motor with Absolute Encoder Size: 40 Flange ~ 60 Flange Capacity: 100[W] ~ 300[W] Rated Torque: 0.32[N·m] ~ 0.95[N·m] Rated Speed: 3000[rpm] Encoder: Serial 18bit Feature: Improved insulation in the interior molding
MODELS and DESCRIPTION: APMC-FAL01AM8N-8 100w,40mm Flange, 18bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.32Nm,rated current 2.71A
APMC-FBL01AMK-8 100w,60mm Flange, 19bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.32Nm,rated current 2.5A
APMC-FBL02AMK-8 200w,60mm Flange, 19bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.64Nm,rated current 5.54A
APMC-FBL03AMK-8 300w,60mm Flange, 19bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.95Nm,rated current 6.79A
APMC-FAL01AM8N2-8 100w,40mm Flange, 18bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.32Nm,rated current 2.71A, with brake
APMC-FBL01AMK2-8 100w,60mm Flange, 19bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.32Nm,rated current 2.5A, with brake
PMC-FBL02AMK2-8 200w,60mm Flange, 19bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.64Nm,rated current 5.54A, with brake
APMC-FBL03AMK2-8 300w,60mm Flange, 19bits Biss-C muti-turn absolute encoder, 20-80VDC power range,rated speed 3000rpm,rated torque 0.95Nm,rated current 6.79A, with brake

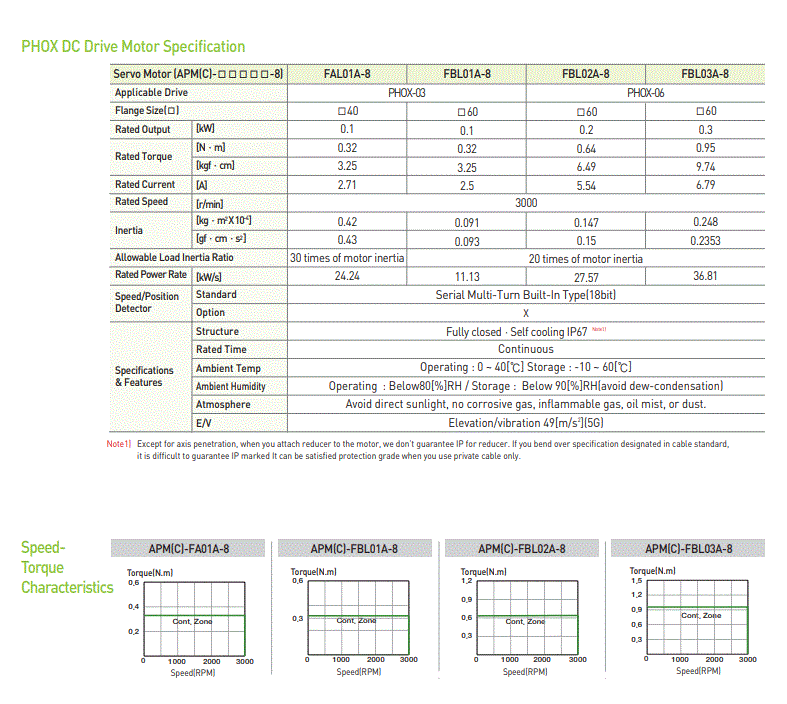

Servo Motor Characteris![](/v/vspfiles/assets/images/LS APM F SERIES DATA11.GIF)

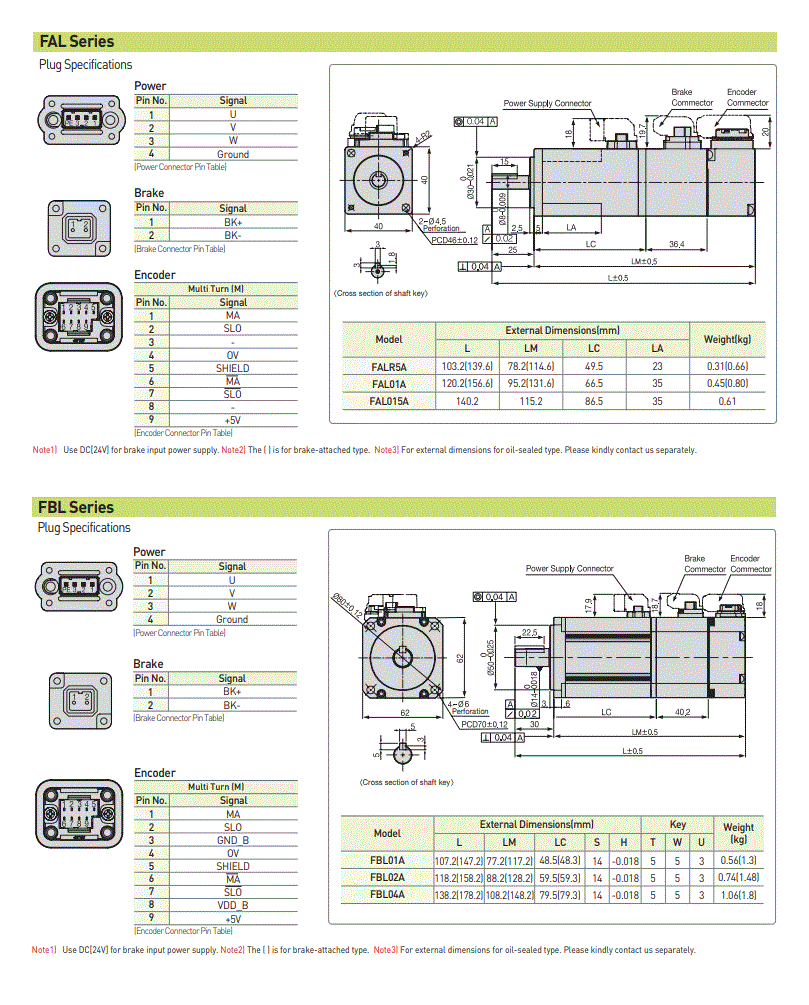

![](/v/vspfiles/assets/images/LS APM F SERIES DATA12.GIF)
|
|
