LS Mecapion: Brushless Servo Motor (APMC-FCL08AMK)
LS Mecapion: Brushless Servo Motor (APMC-FCL08AMK)


Price: (Members Only)


Availability: Lead time is 4-6 weeks.
Order #: APMC-FCL08AMK
Qty:

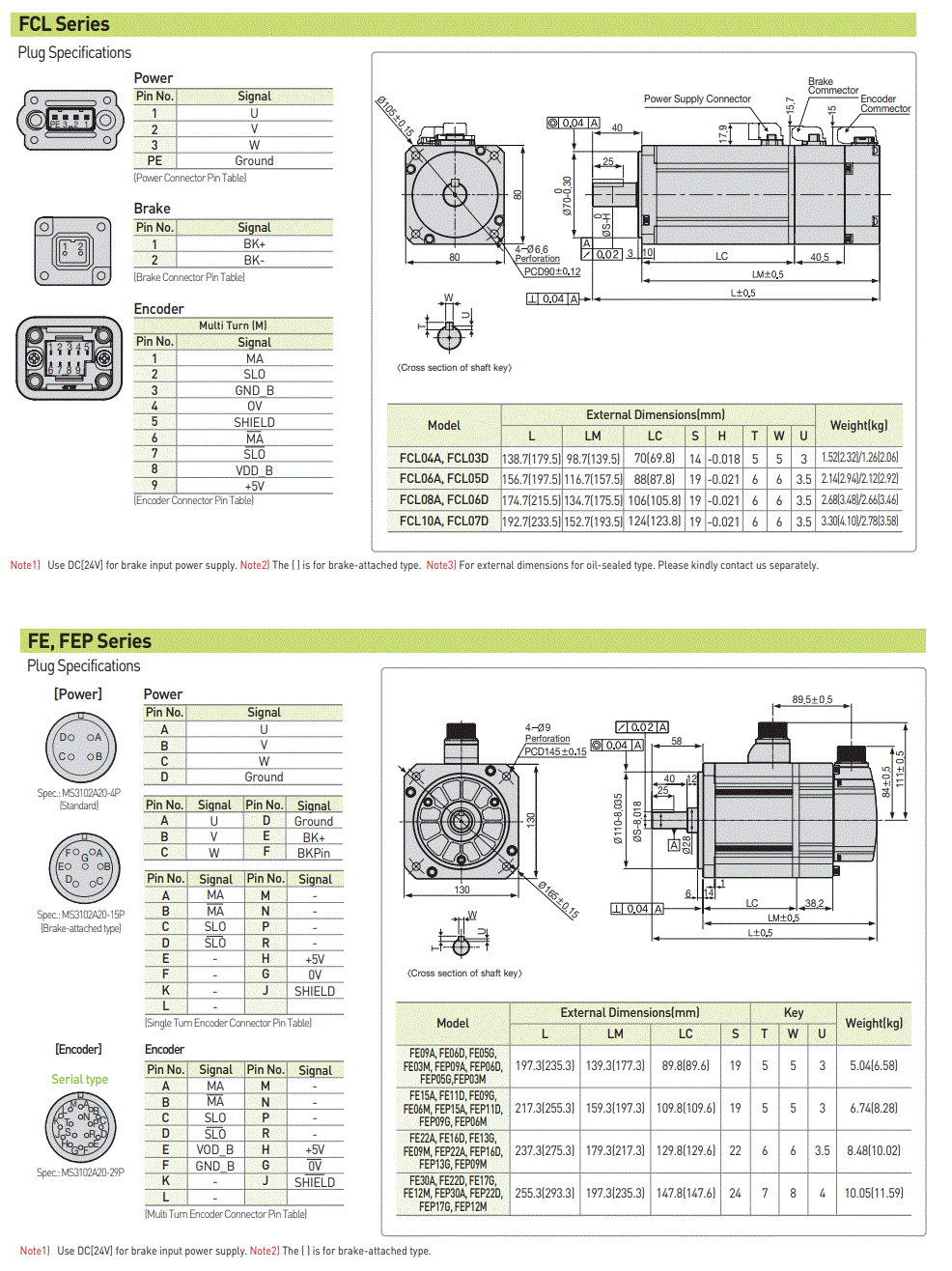

Description Ordering Information Specifications and Drawings


LS Mecapion: Brushless Servo Motor (APMC-FCL08AMK)

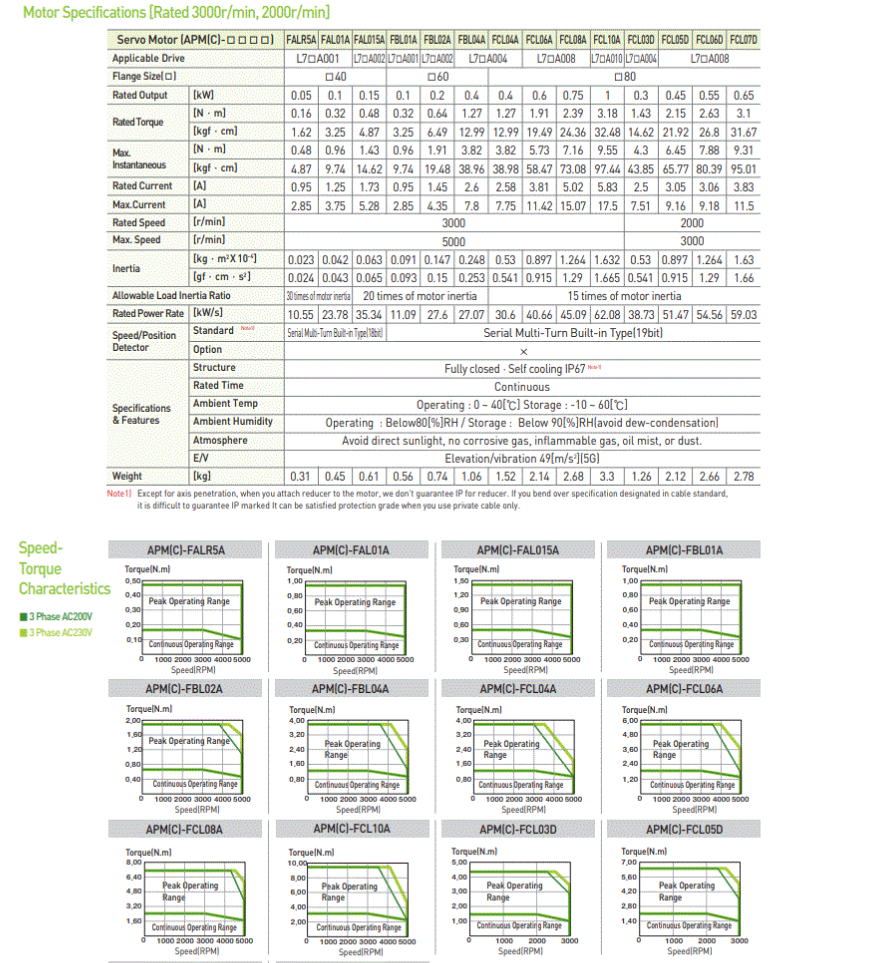

Specifications:

· Flange Size: 80 mm

· Rated power: 0.75 kW

· Torque: 2.39Nm

· Rated/Max current: 5.02/15.07 A

· Rated/Max rpm: 3000/5000 [rpm]

· Speed, Position transducer: Serial type 19 Bit

· Weight: 2.7 Kg
