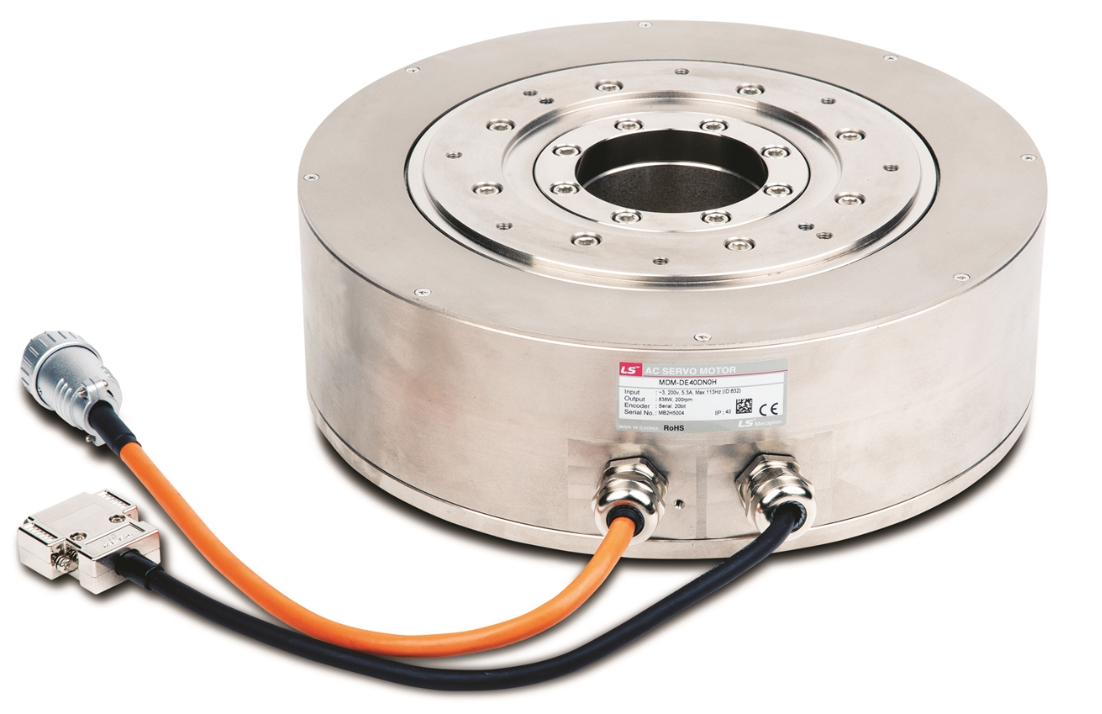

LS Mecapion: Direct Drive Motor (MDM-DE40DN0H)
LS Mecapion: Direct Drive Motor (MDM-DE40DN0H)


Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: MDM-DE40DN0H
Qty:

Description Ordering Information Specifications and Drawings


LS Mecapion: Direct Drive Motor (MDM Series)

Direct drive motors offer industry-leading performance, zero maintenance, clean mechanical assembly, improved accuracy, higher throughput, better reliability, and smooth, quiet operation to suit a wide variety of machine design needs.

LS Mecapion Direct Drive Rotary (DDR) motors offer high performance and zero maintenance in a precision servo solution. These motors combine large diameter, short length and a high number of magnetic poles to provide outstanding torque density, while eliminating the need for gearboxes, timing belts and other transmission components.

Specifications:

  • Size : Ø135 ~ Ø360.
  • Capacity : 63[W] ~ 2.51[kW].
  • Rated Torque : 3[N·m] ~ 160[N·m].
  • Rated Speed : 100[rpm] ~ 300[rpm].
  • Encoder : Serial 20bit.
  • Feature : Low Speed & High Torque.
  • Application : Semiconductor Equipment, Stage etc.


MDM Series Motors List

DDR Motor

Part Number

Power Voltage Input

VAC

Flange

Diameter


mm

DESCRIPTION

List Unit Price


USD

POWER

W

Rated Torque
Nm

Rated
Speed
rpm

ENCODER

MDM-DB03DN0H

3P-220V

□ 135

63

3

200

20 BIT

$2,460.00

MDM-DB06DN0H

3P-220V

□ 135

126

6

200

20 BIT

$2,310.00

MDM-DB09DN0H

3P-220V

□ 135

188

9

200

20 BIT

$2,372.50

MDM-DC06DN0H

3P-220V

□ 175

126

6

200

20 BIT

$2,646.50

MDM-DC12DN0H

3P-220V

□ 175

251

12

200

20 BIT

$2,825.00

MDM-DC18DN0H

3P-220V

□ 175

377

18

200

20 BIT

$2,910.00

MDM-DD12DN0H

3P-220V

□ 230

251

12

200

20 BIT

$3,383.00

MDM-DD22DN0H

3P-220V

□ 230

461

22

200

20 BIT

$3,481.00

MDM-DD34DN0H

3P-220V

□ 290

712

34

200

20 BIT

$3,792.00

MDM-DE40DN0H

3P-220V

□ 290

838

40

200

20 BIT

$4,353.50

MDM-DE60DN0H

3P-220V

□ 290

1257

60

200

20 BIT

$4,470.00

MDM-DFA1GN0H

3P-220V

□ 360

1728

110

150

20 BIT

$8,270.00

MDM-DFA6GN0H

3P-220V

□ 360

2513

160

150

20 BIT

$8,481.50


DDR Motors Models:
MDM-DB03DN0H
MDM-DB06DN0HMDM-DB09DN0HMDM-DC06DN0HMDM-DC12DN0H
MDM-DC18DN0HMDM-DD12DN0HMDM-DD22DN0HMDM-DD34DN0HMDM-DE40DN0H
MDM-DE60DN0HMDM-DFA1GN0HMDM-DFA6GN0H

Applicable Drives List

DDR Motor

Part Number

Applicable Drive

Pulse and Analog Command

All in one EtherCat communication command

Indexer Function Type

(Drive with Controller)

Model

List Price

USD

Model

List Price

USD

Model

List Price

USD

MDM-DB03DN0H

L7SA001B

516.99

L7NHA001U

591.00

L7PA001U

546.00

MDM-DB06DN0H

L7SA002B

516.99

L7NHA002U

595.00

L7PA002U

548.00

MDM-DB09DN0H

L7SA004B

558.80

L7NHA004U

602.00

L7PA004U

556.00

MDM-DC06DN0H

L7SA002B

516.99

L7NHA002U

595.00

L7PA002U

548.00

MDM-DC12DN0H

L7SA004B

558.80

L7NHA004U

602.00

L7PA004U

556.00

MDM-DC18DN0H

L7SA008B

610.49

L7NHA008U

721.00

L7PA008U

676.00

MDM-DD12DN0H

L7SA004B

558.80

L7NHA004U

602.00

L7PA004U

556.00

MDM-DD22DN0H

L7SA008B

610.49

L7NHA008U

721.00

L7PA008U

676.00

MDM-DD34DN0H

L7SA010B

693.00

L7NHA010U

727,00

L7PA010U

680.00

MDM-DE40DN0H

L7SA010B

693.00

L7NHA010U

727.00

L7PA010U

680.00

MDM-DE60DN0H

L7SA020B

819.49

L7NHA020U

980.00

L7PA020U

986.00

MDM-DFA1GN0H

L7SA020B

819.49

L7NHA020U

980.00

L7PA020U

986.00

MDM-DFA6GN0H

L7SA035B

901.99

L7NHA035U

1,003.00

L7PA035U

998.00

Models of applicable drive of the DDR motors:
L7SA001B, L7SA002B, L7SA004B, L7SA002B, L7SA004B, L7SA008B, L7SA004B, L7SA008B, L7SA010B, L7SA010B, L7SA020B, L7SA020B, L7SA035B, L7NHA001U, L7NHA002U, L7NHA004U, L7NHA002U, L7NHA004U, L7NHA008U, L7NHA004U, L7NHA008U, L7NHA010U, L7NHA010U, L7NHA020, L7NHA020U, L7NHA035, L7PA001U, L7PA002U, L7PA004U, L7PA002U, L7PA004U, L7PA008U, L7PA004U, L7PA008U, L7PA010U, L7PA010U, L7PA020U, L7PA020U, L7PA035U

Cables and Connectors

Group

Name

Part Number

CABLE Length(m)

Type

Applied Motor

Unit Cost

Signal

L7 Encoder
Cable

APCS-EN03ZS

3

Normal
(4P*0.2SQ)

All DD motor

$84.00

APCS-EN05ZS

5

$88.50

APCS-EN10ZS

10

$111.00

APCS-EN20ZS

20

$162.00

APCS-EF03ZS

3

Robotic
(4P*0.2SQ)

$117.00

APCS-EF05ZS

5

$147.00

APCS-EF10ZS

10

$223.50

APCS-EF20ZS

20

$379.50

L7 Encoder
Connector

APC-CN3NNA

-

3M(Drive Side)

$15.00

Power

L7 Power
Cable

APCS-PN03YS

3

Normal
(4C*1.5SQ)

DB03D/06D/09D
DC06D/12D/18D
DD12D/22D/34D
DE40D

$224.00

APCS-PN05YS

5

$303.00

APCS-PN10YS

10

$501.00

APCS-PN20YS

20

$903.00

L7 Power
Cable

APCS-PN03ZS

3

Normal
(4C*4.0SQ)

DE60D
DFA1G/A6G

$210.00

APCS-PN05ZS

5

$260.00

APCS-PN10ZS

10

$430.00

APCS-PN20ZS

20

$680.00

L7 Power
Cable

APCS-PF03YS

3

Robotic
(4C*1.5SQ)

DB03D/06D/09D
DC06D/12D/18D
DD12D/22D/34D
DE40D

$210.00

APCS-PF05YS

5

$245.00

APCS-PF10YS

10

$287.00

APCS-PF20YS

20

$430.00

L7 Power
Cable

APCS-PF03ZS

3

Robotic
(4C*4.0SQ)

DE60D
DFA1G/A6G

$210.00

APCS-PF05ZS

5

$260.00

APCS-PF10ZS

10

$287.00

APCS-PF20ZS

20

$430.00

Models of Cables and Connectors:
APCS-EN03ZS, APCS-EN05ZS, APCS-EN10ZS, APCS-EN20ZS, APCS-EF03ZS, APCS-EF05ZS, APCS-EF10ZS,
APCS-EF20ZS, APCS-CN3NNA, APCS-PN03YS, APCS-PN05YS, APCS-PN10YS, APCS-PN20YS, APCS-PN03ZS,
APCS-PN05ZS, APCS-PN10ZS, APCS-PN20ZS, APCS-PF03YS, APCS-PF05YS, APCS-PF10YS, APCS-PF20YS,
APCS-PF03ZS, APCS-PF05ZS, APCS-PF10ZS, APCS-PF20ZS
