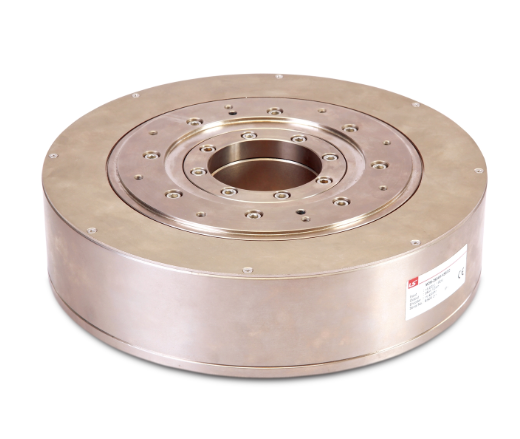

LS Mecapion: Direct Drive Motor (MDM Series)
Direct drive motors offer industry-leading performance,
zero maintenance, clean mechanical assembly, improved accuracy, higher
throughput, better reliability, and smooth, quiet operation to suit a wide
variety of machine design needs.
LS Mecapion Direct Drive Rotary (DDR) motors offer high
performance and zero maintenance in a precision servo solution. These motors
combine large diameter, short length and a high number of magnetic poles to
provide outstanding torque density, while eliminating the need for gearboxes, timing
belts and other transmission components.
Specifications:
- Size : Ø135 ~ Ø360.
-
Capacity : 63[W] ~ 2.51[kW].
-
Rated Torque : 3[N·m] ~ 160[N·m].
-
Rated Speed : 100[rpm] ~ 300[rpm].
-
Encoder : Serial 20bit.
-
Feature : Low Speed & High Torque.
-
Application : Semiconductor Equipment, Stage etc.
MDM Series Motors List
|
DDR Motor
Part Number
|
Power Voltage
Input
VAC
|
Flange
Diameter
mm
|
DESCRIPTION
|
List Unit
Price
USD
|
|
POWER
W
|
Rated Torque
Nm
|
Rated
Speed
rpm
|
ENCODER
|
|
MDM-DB03DN0H
|
3P-220V
|
□ 135
|
63
|
3
|
200
|
20 BIT
|
$2,460.00
|
|
MDM-DB06DN0H
|
3P-220V
|
□ 135
|
126
|
6
|
200
|
20 BIT
|
$2,310.00
|
|
MDM-DB09DN0H
|
3P-220V
|
□ 135
|
188
|
9
|
200
|
20 BIT
|
$2,372.50
|
|
MDM-DC06DN0H
|
3P-220V
|
□ 175
|
126
|
6
|
200
|
20 BIT
|
$2,646.50
|
|
MDM-DC12DN0H
|
3P-220V
|
□ 175
|
251
|
12
|
200
|
20 BIT
|
$2,825.00
|
|
MDM-DC18DN0H
|
3P-220V
|
□ 175
|
377
|
18
|
200
|
20 BIT
|
$2,910.00
|
|
MDM-DD12DN0H
|
3P-220V
|
□ 230
|
251
|
12
|
200
|
20 BIT
|
$3,383.00
|
|
MDM-DD22DN0H
|
3P-220V
|
□ 230
|
461
|
22
|
200
|
20 BIT
|
$3,481.00
|
|
MDM-DD34DN0H
|
3P-220V
|
□ 290
|
712
|
34
|
200
|
20 BIT
|
$3,792.00
|
|
MDM-DE40DN0H
|
3P-220V
|
□ 290
|
838
|
40
|
200
|
20 BIT
|
$4,353.50
|
|
MDM-DE60DN0H
|
3P-220V
|
□ 290
|
1257
|
60
|
200
|
20 BIT
|
$4,470.00
|
|
MDM-DFA1GN0H
|
3P-220V
|
□ 360
|
1728
|
110
|
150
|
20 BIT
|
$8,270.00
|
|
MDM-DFA6GN0H
|
3P-220V
|
□ 360
|
2513
|
160
|
150
|
20 BIT
|
$8,481.50
|
DDR Motors
Models:
MDM-DB03DN0H，MDM-DB06DN0H，MDM-DB09DN0H，MDM-DC06DN0H，MDM-DC12DN0H，
MDM-DC18DN0H，MDM-DD12DN0H，MDM-DD22DN0H，MDM-DD34DN0H，MDM-DE40DN0H，
MDM-DE60DN0H，MDM-DFA1GN0H，MDM-DFA6GN0H
Applicable Drives List
|
DDR Motor
Part Number
|
Applicable
Drive
|
|
Pulse and
Analog Command
|
All in one
EtherCat communication command
|
Indexer
Function Type
(Drive with
Controller)
|
|
Model
|
List Price
USD
|
Model
|
List Price
USD
|
Model
|
List Price
USD
|
|
MDM-DB03DN0H
|
L7SA001B
|
516.99
|
L7NHA001U
|
591.00
|
L7PA001U
|
546.00
|
|
MDM-DB06DN0H
|
L7SA002B
|
516.99
|
L7NHA002U
|
595.00
|
L7PA002U
|
548.00
|
|
MDM-DB09DN0H
|
L7SA004B
|
558.80
|
L7NHA004U
|
602.00
|
L7PA004U
|
556.00
|
|
MDM-DC06DN0H
|
L7SA002B
|
516.99
|
L7NHA002U
|
595.00
|
L7PA002U
|
548.00
|
|
MDM-DC12DN0H
|
L7SA004B
|
558.80
|
L7NHA004U
|
602.00
|
L7PA004U
|
556.00
|
|
MDM-DC18DN0H
|
L7SA008B
|
610.49
|
L7NHA008U
|
721.00
|
L7PA008U
|
676.00
|
|
MDM-DD12DN0H
|
L7SA004B
|
558.80
|
L7NHA004U
|
602.00
|
L7PA004U
|
556.00
|
|
MDM-DD22DN0H
|
L7SA008B
|
610.49
|
L7NHA008U
|
721.00
|
L7PA008U
|
676.00
|
|
MDM-DD34DN0H
|
L7SA010B
|
693.00
|
L7NHA010U
|
727,00
|
L7PA010U
|
680.00
|
|
MDM-DE40DN0H
|
L7SA010B
|
693.00
|
L7NHA010U
|
727.00
|
L7PA010U
|
680.00
|
|
MDM-DE60DN0H
|
L7SA020B
|
819.49
|
L7NHA020U
|
980.00
|
L7PA020U
|
986.00
|
|
MDM-DFA1GN0H
|
L7SA020B
|
819.49
|
L7NHA020U
|
980.00
|
L7PA020U
|
986.00
|
|
MDM-DFA6GN0H
|
L7SA035B
|
901.99
|
L7NHA035U
|
1,003.00
|
L7PA035U
|
998.00
|
Models of
applicable drive of the DDR motors:
L7SA001B, L7SA002B, L7SA004B, L7SA002B, L7SA004B,
L7SA008B, L7SA004B, L7SA008B, L7SA010B, L7SA010B, L7SA020B, L7SA020B, L7SA035B,
L7NHA001U, L7NHA002U, L7NHA004U, L7NHA002U, L7NHA004U, L7NHA008U, L7NHA004U, L7NHA008U, L7NHA010U, L7NHA010U, L7NHA020, L7NHA020U, L7NHA035, L7PA001U, L7PA002U, L7PA004U, L7PA002U, L7PA004U, L7PA008U, L7PA004U, L7PA008U, L7PA010U, L7PA010U, L7PA020U, L7PA020U, L7PA035U
Cables and Connectors
|
Group
|
Name
|
Part Number
|
CABLE
Length(m)
|
Type
|
Applied Motor
|
Unit Cost
|
|
|
|
Signal
|
L7 Encoder
Cable
|
APCS-EN03ZS
|
3
|
Normal
(4P*0.2SQ)
|
All DD motor
|
$84.00
|
|
|
APCS-EN05ZS
|
5
|
$88.50
|
|
|
APCS-EN10ZS
|
10
|
$111.00
|
|
|
APCS-EN20ZS
|
20
|
$162.00
|
|
|
APCS-EF03ZS
|
3
|
Robotic
(4P*0.2SQ)
|
$117.00
|
|
|
APCS-EF05ZS
|
5
|
$147.00
|
|
|
APCS-EF10ZS
|
10
|
$223.50
|
|
|
APCS-EF20ZS
|
20
|
$379.50
|
|
|
L7 Encoder
Connector
|
APC-CN3NNA
|
-
|
3M(Drive
Side)
|
$15.00
|
|
|
Power
|
L7 Power
Cable
|
APCS-PN03YS
|
3
|
Normal
(4C*1.5SQ)
|
DB03D/06D/09D
DC06D/12D/18D
DD12D/22D/34D
DE40D
|
$224.00
|
|
|
APCS-PN05YS
|
5
|
$303.00
|
|
|
APCS-PN10YS
|
10
|
$501.00
|
|
|
APCS-PN20YS
|
20
|
$903.00
|
|
|
L7 Power
Cable
|
APCS-PN03ZS
|
3
|
Normal
(4C*4.0SQ)
|
DE60D
DFA1G/A6G
|
$210.00
|
|
|
APCS-PN05ZS
|
5
|
$260.00
|
|
|
APCS-PN10ZS
|
10
|
$430.00
|
|
|
APCS-PN20ZS
|
20
|
$680.00
|
|
|
L7 Power
Cable
|
APCS-PF03YS
|
3
|
Robotic
(4C*1.5SQ)
|
DB03D/06D/09D
DC06D/12D/18D
DD12D/22D/34D
DE40D
|
$210.00
|
|
|
APCS-PF05YS
|
5
|
$245.00
|
|
|
APCS-PF10YS
|
10
|
$287.00
|
|
|
APCS-PF20YS
|
20
|
$430.00
|
|
|
L7 Power
Cable
|
APCS-PF03ZS
|
3
|
Robotic
(4C*4.0SQ)
|
DE60D
DFA1G/A6G
|
$210.00
|
|
|
APCS-PF05ZS
|
5
|
$260.00
|
|
|
APCS-PF10ZS
|
10
|
$287.00
|
|
|
APCS-PF20ZS
|
20
|
$430.00
|
|
Models of
Cables and Connectors:
APCS-EN03ZS, APCS-EN05ZS, APCS-EN10ZS, APCS-EN20ZS, APCS-EF03ZS, APCS-EF05ZS, APCS-EF10ZS,
APCS-EF20ZS, APCS-CN3NNA, APCS-PN03YS, APCS-PN05YS, APCS-PN10YS, APCS-PN20YS, APCS-PN03ZS,
APCS-PN05ZS, APCS-PN10ZS, APCS-PN20ZS, APCS-PF03YS, APCS-PF05YS, APCS-PF10YS, APCS-PF20YS,
APCS-PF03ZS, APCS-PF05ZS, APCS-PF10ZS, APCS-PF20ZS
