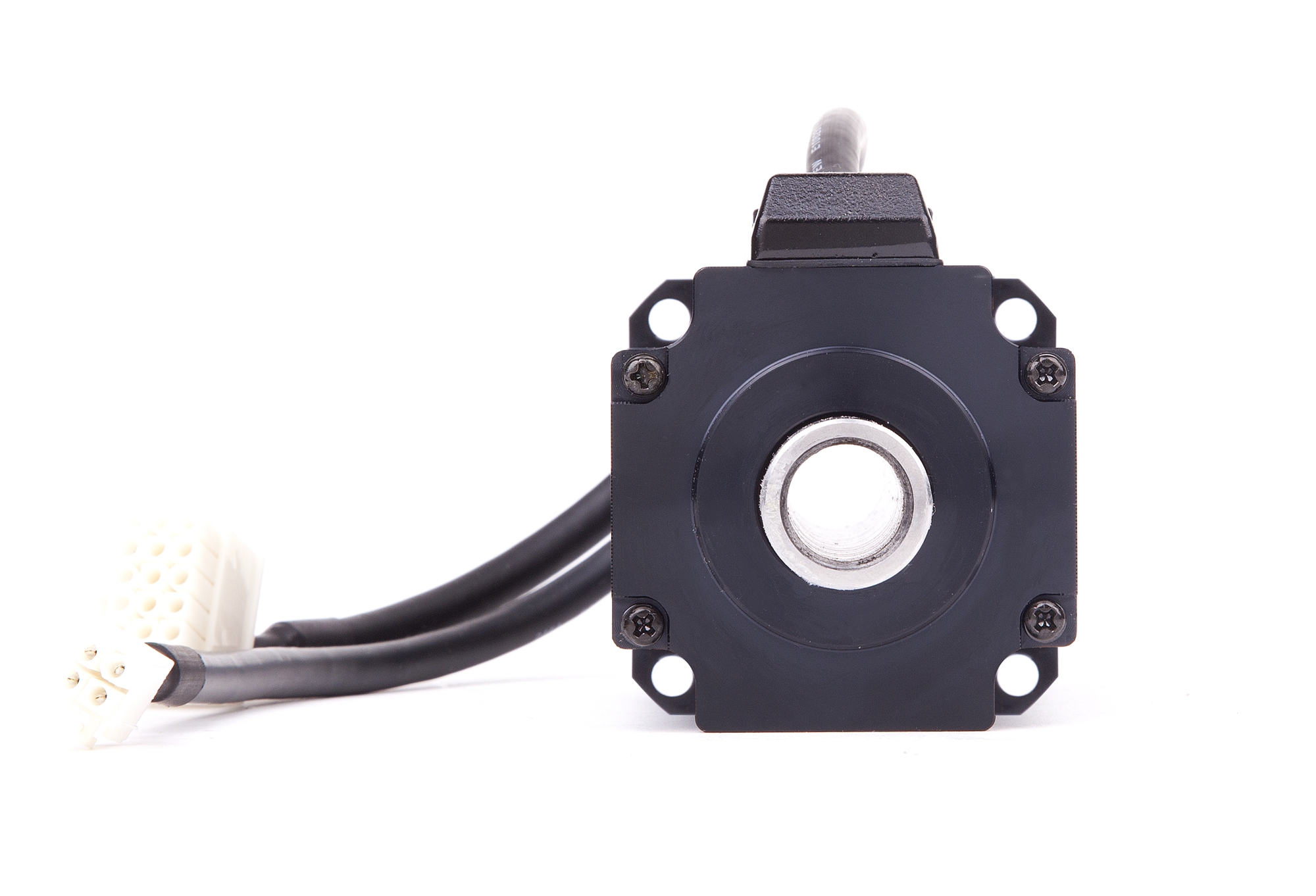

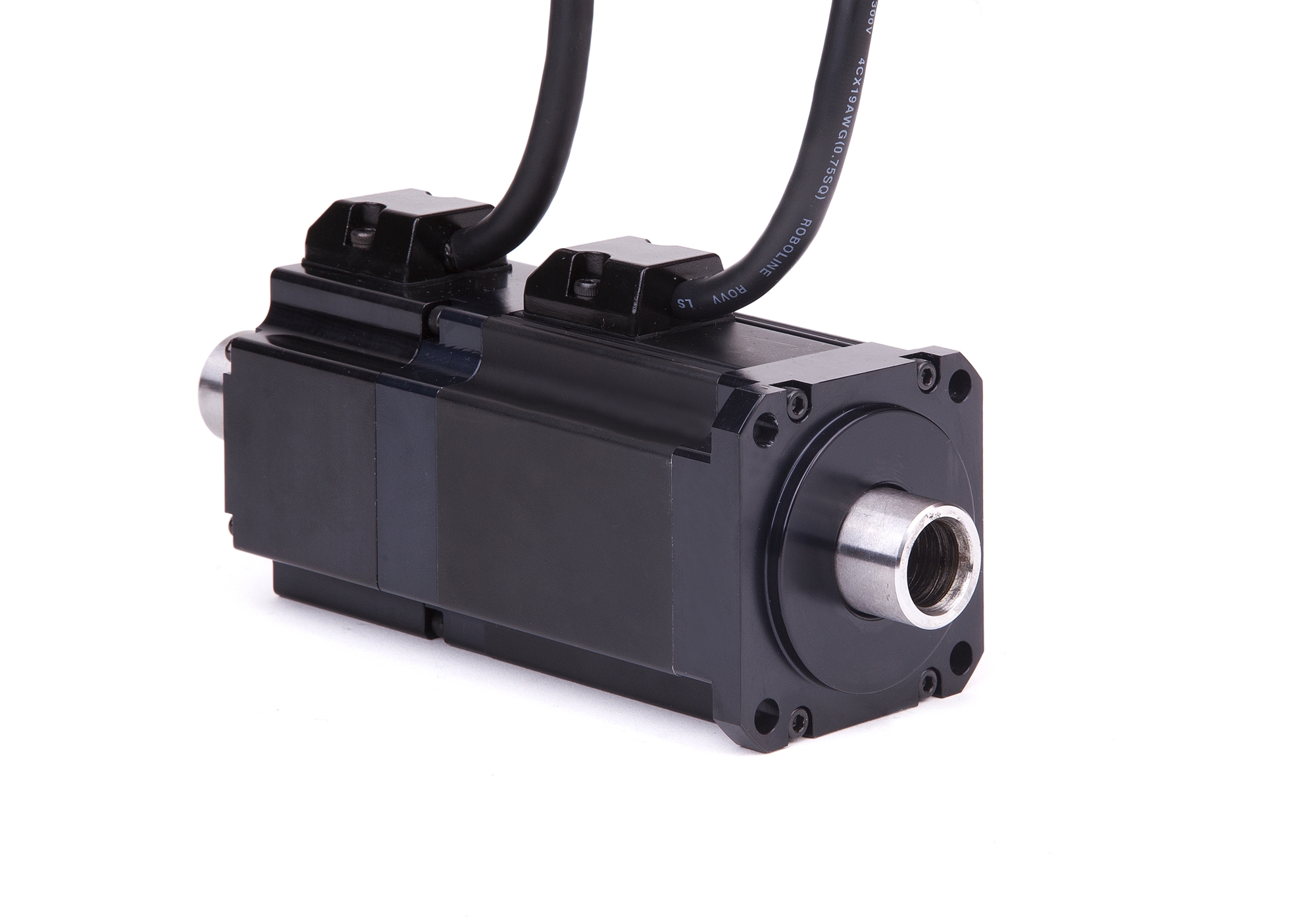

LS Mecapion: Hollow Shaft Servo Motor (APM-HB04AAH)
LS Mecapion: Hollow Shaft Servo Motor (APM-HB04AAH)

Alternate View


Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: APM-HB04AAH
Qty:

Description Specifications and Drawings


LS Mecapion: Hollow Shaft Servo Motor (APM-HB04A)

Specifications:

  • Flange Size: 62

  • Rated power: 0.4kW

  • Rated/Max torque: 1.27/3.8[N.m]

  • Rated/Max rpm: 3000/5000[rpm]

  • Speed, Position transducer: 1024[P/R]

  • Weight: 1.6kg

Model No.: APM-HB04AAH
