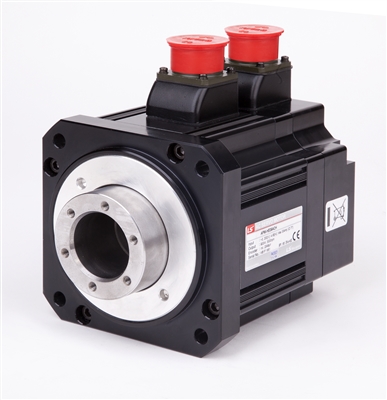

LS Mecapion: Hollow Shaft Servo Motor (APM-HE15ACH)
LS Mecapion: Hollow Shaft Servo Motor (APM-HE15ACH)



Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: APM-HE15ACH
Qty:

Description Specifications and Drawings


      LS Mecapion: Hollow Shaft Servo Motor
      (
      APM-HE15ACH)

      Specifications:

      • Flange Size: 130mm

      • Rated power: 1.5kW

      • Rated/Max torque: 4.77/14.32[N.m]

      • Rated/Max rpm: 3000/5000[rpm]

      • Speed, Position transducer: 2048[P/R]

      • Weight: 7.54kg

      Model No.: APM-HE15ACH



      LS Mecapion: L7P Servo Drive L7PA008U
      Supporting Drive
      Model:L7PA020U-EM Buy Now
      List Price:$793.00
      Specification:

      • Input Power: AC 220[V]~230[V]

      • Capacity: 2.0[kW]

      • Rated Current: 13.5[A]

      • Encoder: Incremental, Biss-B,Biss-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental),EnDat2.2

      • Communication Type: RS-422(ANSI/TIA/EIA-422) / USB2.0(HID)

      • Control Mode: Velocity, Position, Torque
        Feature: Pulse-in/Index mode
