LS Mecapion: L7NHA EtherCat Servo Drive, AC220 ~230V
LS Mecapion: L7NHA Servo Drive

Request coupon discount over qty 5

Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: L7NHA-ETHERCAT-DRIVE


Model No.:


Qty:

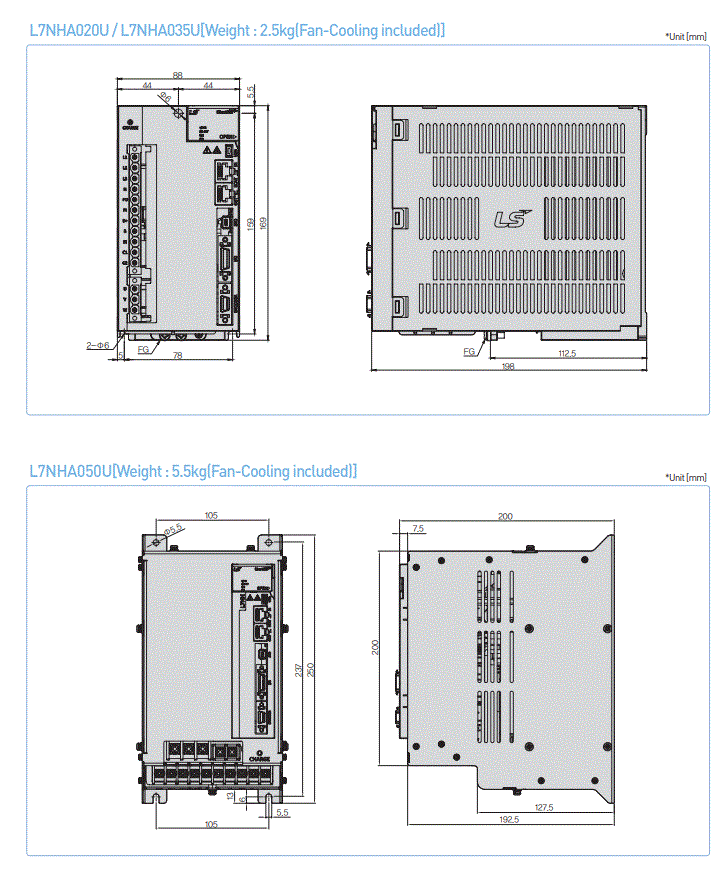

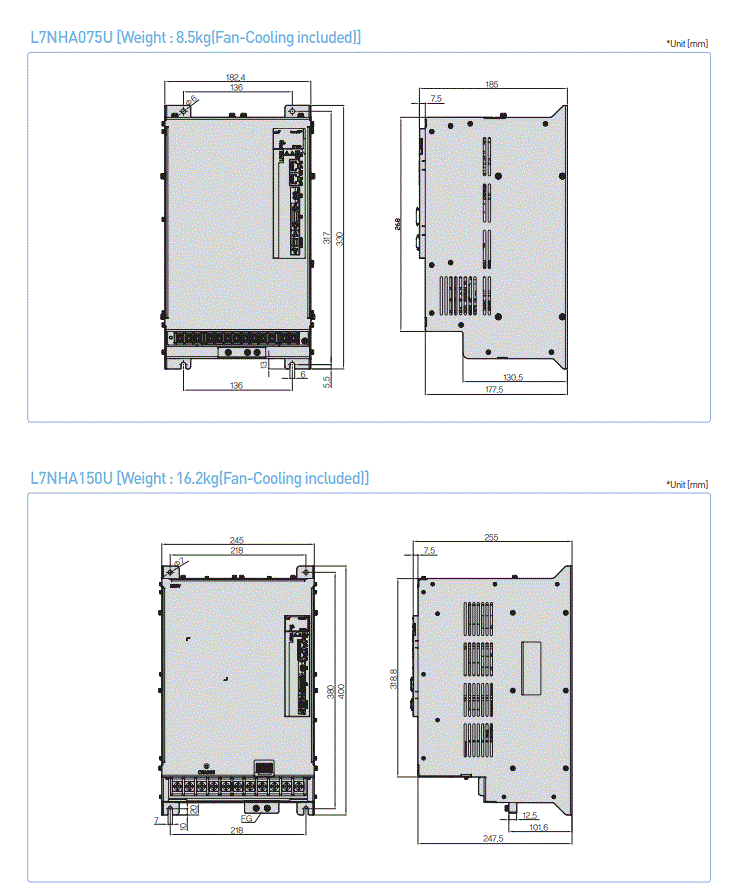

Description Ordering Information Specifications and Drawings


LS Mecapion: L7NHA Servo Drive

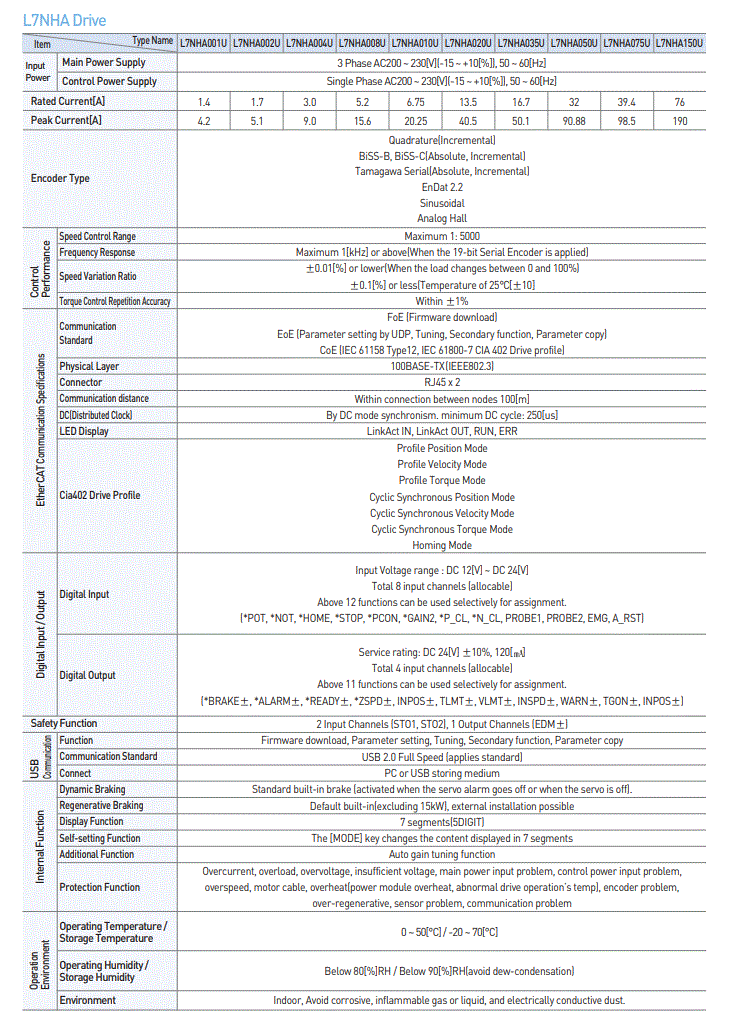

Specifications:

L7NHA

  • Input Power: 3 Phase AC220 ~230[V](-15 ~ +10[%]), 50 ~ 60[Hz]

  • Capacity: 100[W]~15[kW]

  • Rated Current: 1.4[A]~76[A]

  • Encoder: Quadrature(Incremental) , BiSS-B and BiSS-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental), EnDat 2.2, Sinusoidal, Analog Hall

  • Communication Type:FoE (Firmware download) , EoE (Parameter setting by UDP, Tuning, Secondary function, Parameter copy), CoE (IEC 61158 Type12, IEC 61800-7 CIA 402 Drive profile)

  • Cia402 Drive Profile: Profile Position Mode Profile Velocity Mode Profile Torque Mode Cyclic Synchronous Position Mode Cyclic Synchronous Velocity Mode Cyclic Synchronous Torque Mode Homing Mode


L7NHA Series Price List With Description

SeriesModelOld ModelDescriptionUnit Price(USD)

3P 200V

L7NH Drive

L7NHA001U

XDL-L7NHA001UE

3P-220V, 100W, 1.4A

$619.00

3P 200V

L7NH Drive

L7MHA002U

XDL-L7NHA002UE

3P-220V, 200W, 1.7A

$626.46

3P 200V

L7NH Drive

L7NHA004U

XDL-L7NHA004UE

3P-220V, 400W, 3.0A

$633.17

3P 200V

L7NH Drive

L7NHA008U

XDL-L7NHA008UE

3P-220V, 800W, 5.2A

$760.50

3P 200V

L7NH Drive

L7NHA010U

XDL-L7NHA010UE

3P-220V, 1.0KW, 6.7A

$798.50

3P 200V

L7NH Drive

L7NHA020U

XDL-L7NHA020UE

3P-220V, 2.0KW, 13.5A

$1100.00

3P 200V

L7NH Drive

L7NHA035U

XDL-L7NHA035UE

3P-220V, 3.5KW, 16.7A

$1322.50

3P 200V

L7NH Drive

L7NHA050U

XDL-L7NHA050UE

3P-220V, 5.0KW, 32.0A

$1987.50

3P 200V

L7NH Drive

L7NHA075U

XDL-L7NHA075UE

3P-220V, 7.5KW, 39.40A

$2536.50

3P 200V

L7NH Drive

L7NHA150U

XDL-L7NHA150UE

3P-220V, 15.0KW, 76.0A

$4567.50
