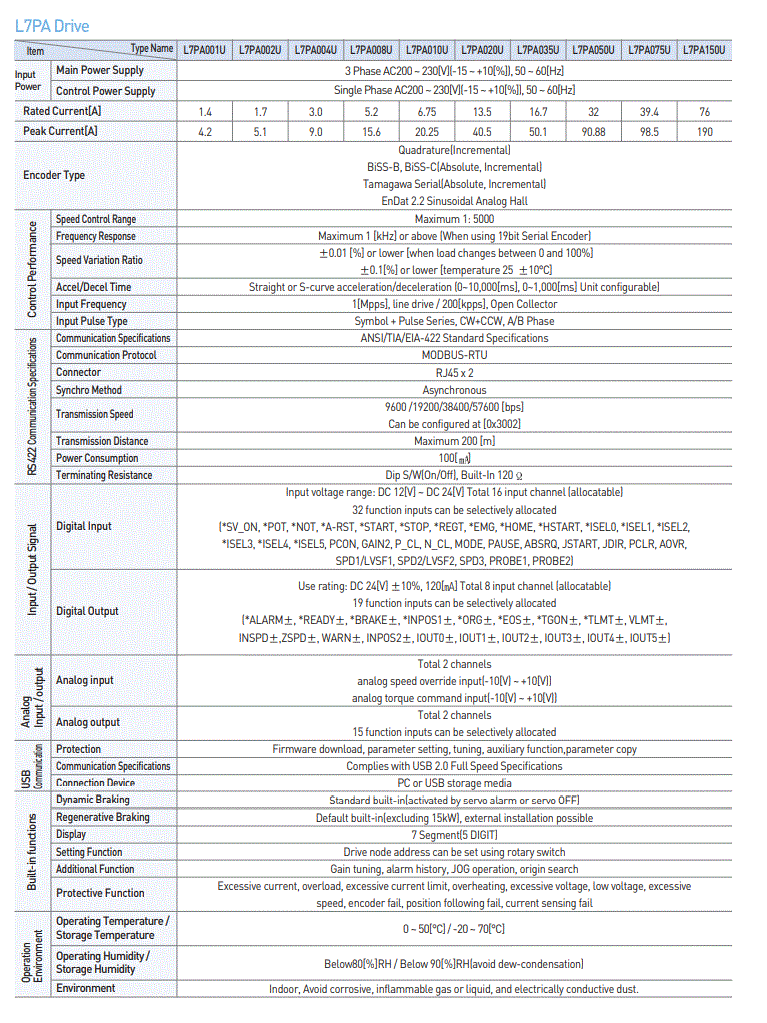

LS Mecapion: L7PA (Indexing) Servo Drive Input Power: AC 220[V]~230[V] Capacity: 100[W]~15[kW] Rated Current: 1.4[A]~76[A] Encoder: Incremental, Biss-B,Biss-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental),EnDat2.2 Communication Type: RS-422(ANSI/TIA/EIA-422) / USB2.0(HID) Control Mode: Velocity, Position, Torque Feature: Pulse-in/Index mode
L7PA Series Modelsďź
|
E-MotionSupply
Part No.
|
Mft
Model
No.
|
Description
|
List Price
|
|
L7PA001U-EM
|
L7PA001U
|
3P-220V,
100W, 1.4A
|
$573.00
|
|
L7PA002U-EM
|
L7PA002U
|
3P-220V,
200W, 1.7A
|
$574.50
|
|
L7PA004U-EM
|
L7PA004U
|
3P-220V,
400W, 3.0A
|
$578.50
|
|
L7PA008U-EM
|
L7PA008U
|
3P-220V,
800W, 5.2A
|
$638.00
|
|
L7PA010U-EM
|
L7PA010U
|
3P-220V,
1.0KW, 6.7A
|
$640.50
|
|
L7PA020U-EM
|
L7PA020U
|
3P-220V,
2.0KW, 13.5A
|
$793.00
|
|
L7PA035U-EM
|
L7PA035U
|
3P-220V,
3.5KW, 16.7A
|
$878.00
|
|
L7PA050U-EM
|
L7PA050U
|
3P-220V,
5.0KW, 32.0A
|
$1215.00
|
|
L7PA075U-EM
|
L7PA075U
|
3P-220V,
7.5KW, 39.40A
|
$1,595.00
|
|
L7PA150U-EM
|
L7PA150U
|
3P-220V,
15.0KW, 76.0A
|
$2,154.00
|
Cables and Connectors Accessory purchase linkMotors Purchase link
|
|
|
