LS Mecapion: L7PB Index Servo Drive
LS Mecapion: L7PB Index Servo Drive

Request Discount Coupon for Over Qty5

Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: L7PB


Model No.:


Qty:

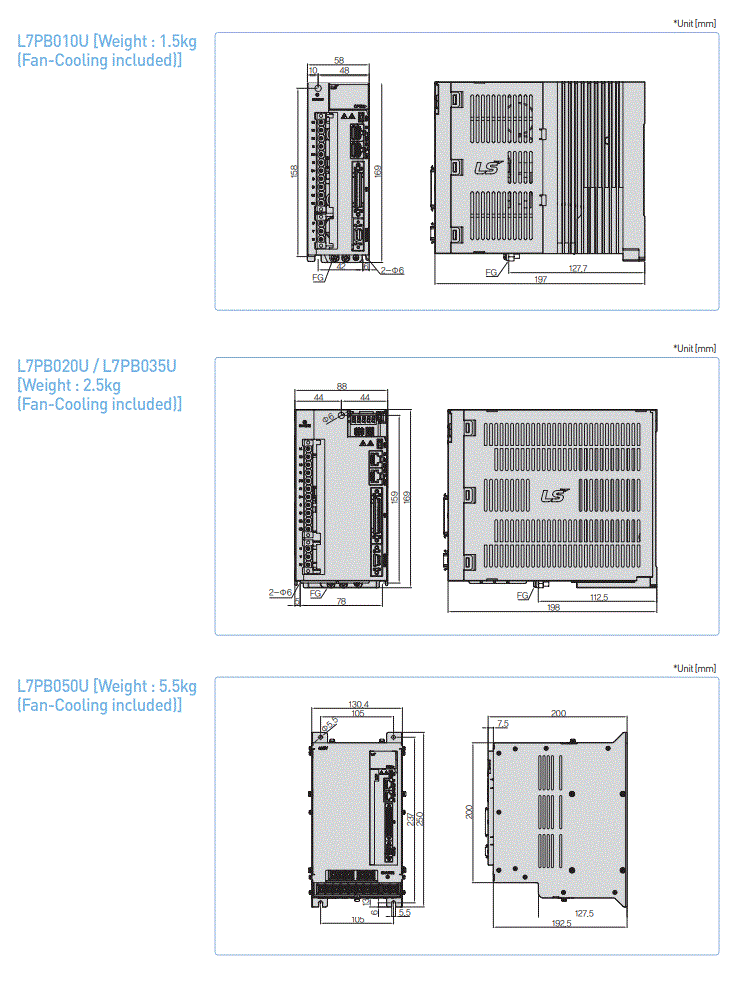

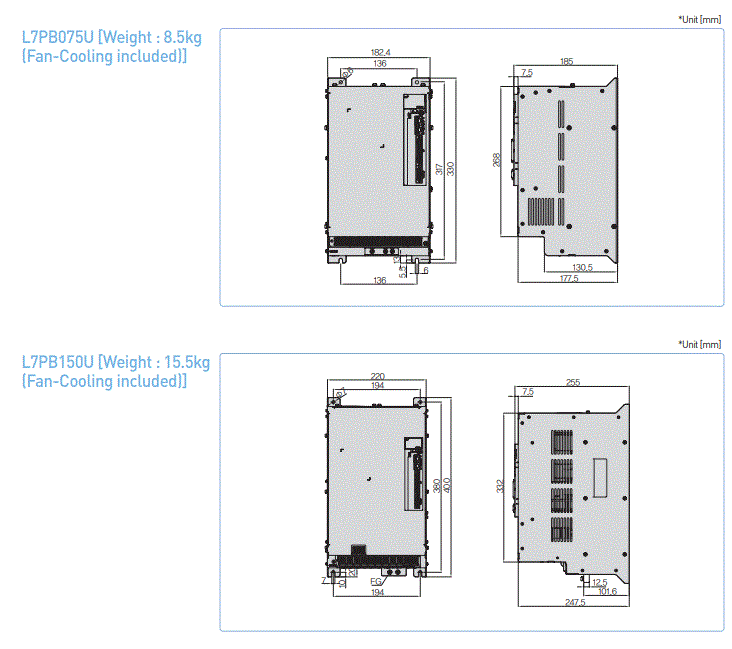

Description Ordering Information Specifications and Drawings


LS Mecapion: L7PB (Indexing) Servo Drive

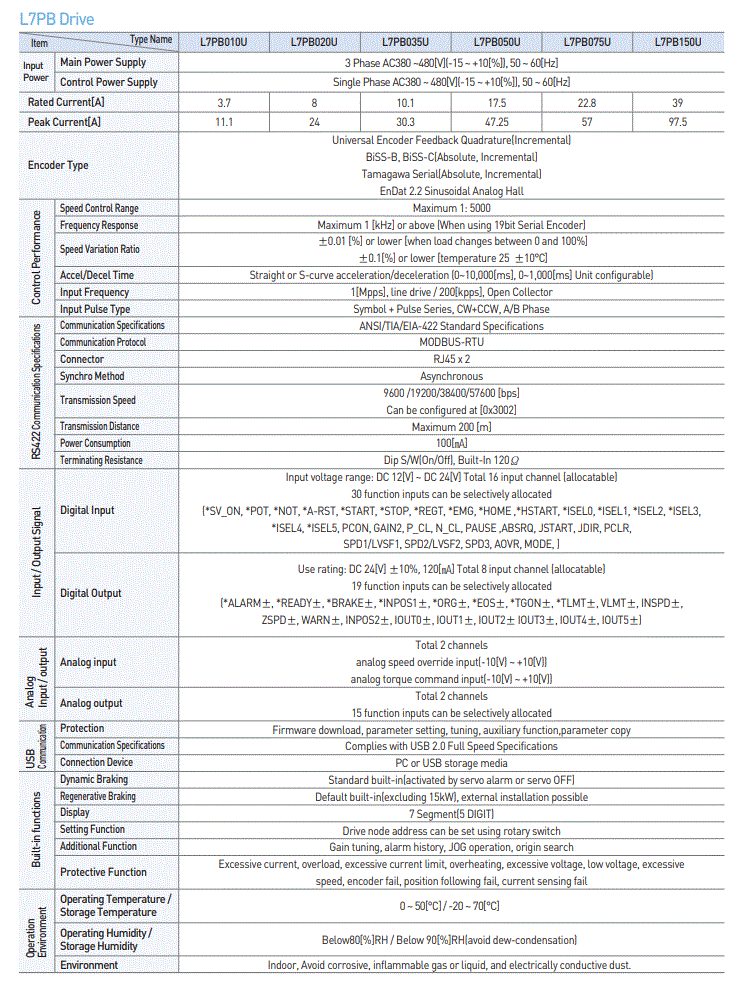

Specifications:

  • Input Power: AC 380[V]~480[V]

  • Capacity: 1000[W]~15[kW]

  • Rated Current: 3.7[A]~39[A]

  • Encoder: Incremental, Biss-B and Biss-C(Absolute, Incremental), Tamagawa Serial(Absolute, Incremental),EnDat2.2

  • Communication Type: RS-422(ANSI/TIA/EIA-422) / USB2.0(HID)

  • Control Mode: Velocity, Position, Torque

  • Feature: Pulse-in/Index mode

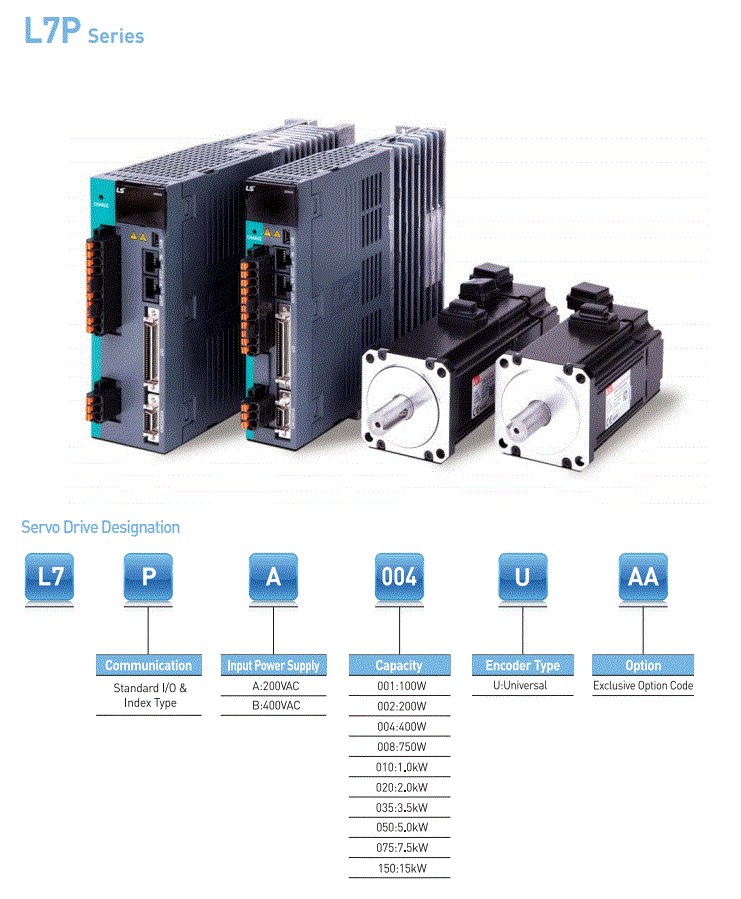

    L7PB Series Models


    E-MotionSupply Model Manufacture Model Description Unit Price
    USD
    L7PB010U-EM

    L7PB010U

    3P-220V, 1.0KW, 6.7A

    $806.50

    L7PB0 20U-EM

    L7PB020U

    3P-220V, 2.0KW, 13.5A

    $1,064.00

    L7PB035U-EM

    L7PB035U

    3P-220V, 3.5KW, 16.7A

    $1,080.00

    L7PB050U-EM

    L7PB050U

    3P-220V, 5.0KW, 32.0A

    $1,663.00

    L7PB075U-EM

    L7PB075U

    3P-220V, 7.5KW, 39.40A

    $1,918.00

    L7PB150U-EM

    L7PB150U

    3P-220V, 15.0KW, 76.0A

    $3,193.00


Cables and Connectors Accessory purchase link

Motors Purchase link
Support Links
L7P-Catalog
