LS Mecapion: L7CA Servo Drive AC200V Series
LS Mecapion: L7SA Servo Drive

Request discount coupon over Qty5

Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: L7CA-


Model No.:


Qty:

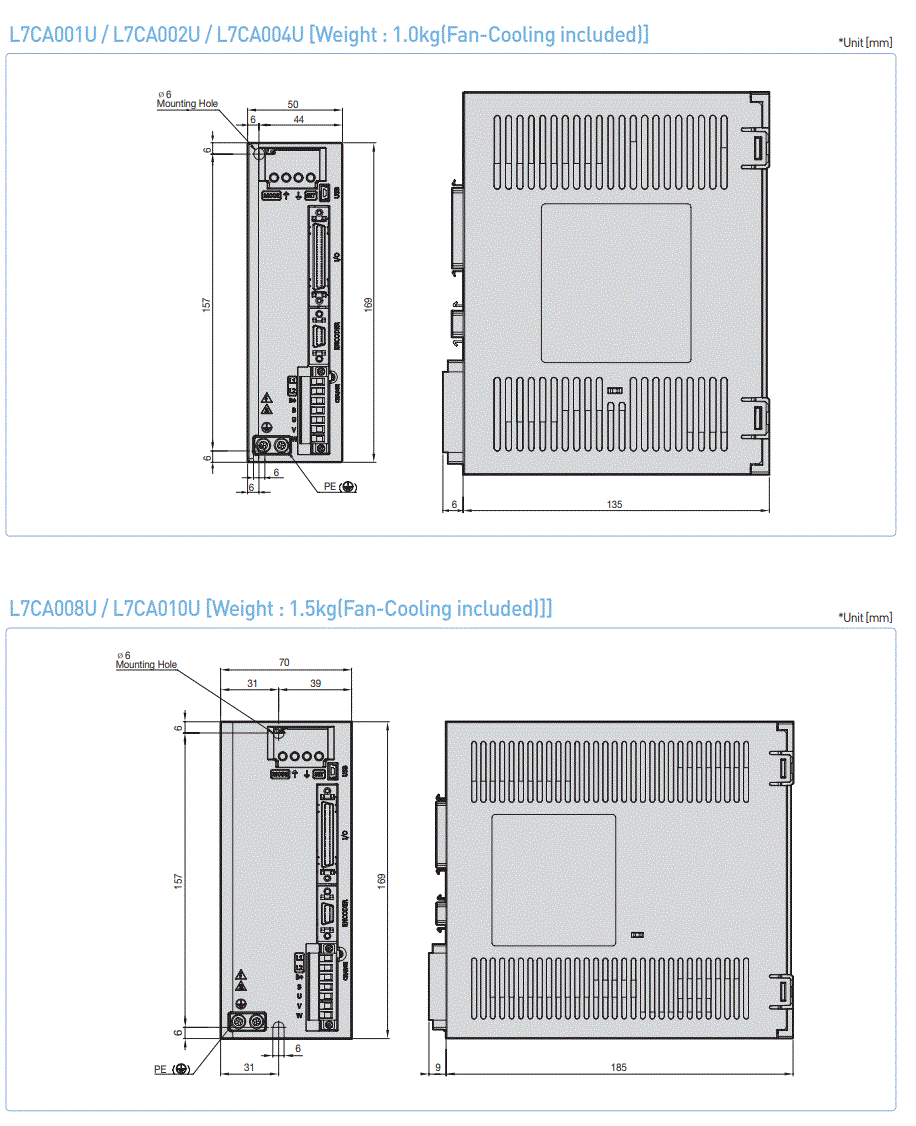

Description Ordering Information Specifications and Drawings

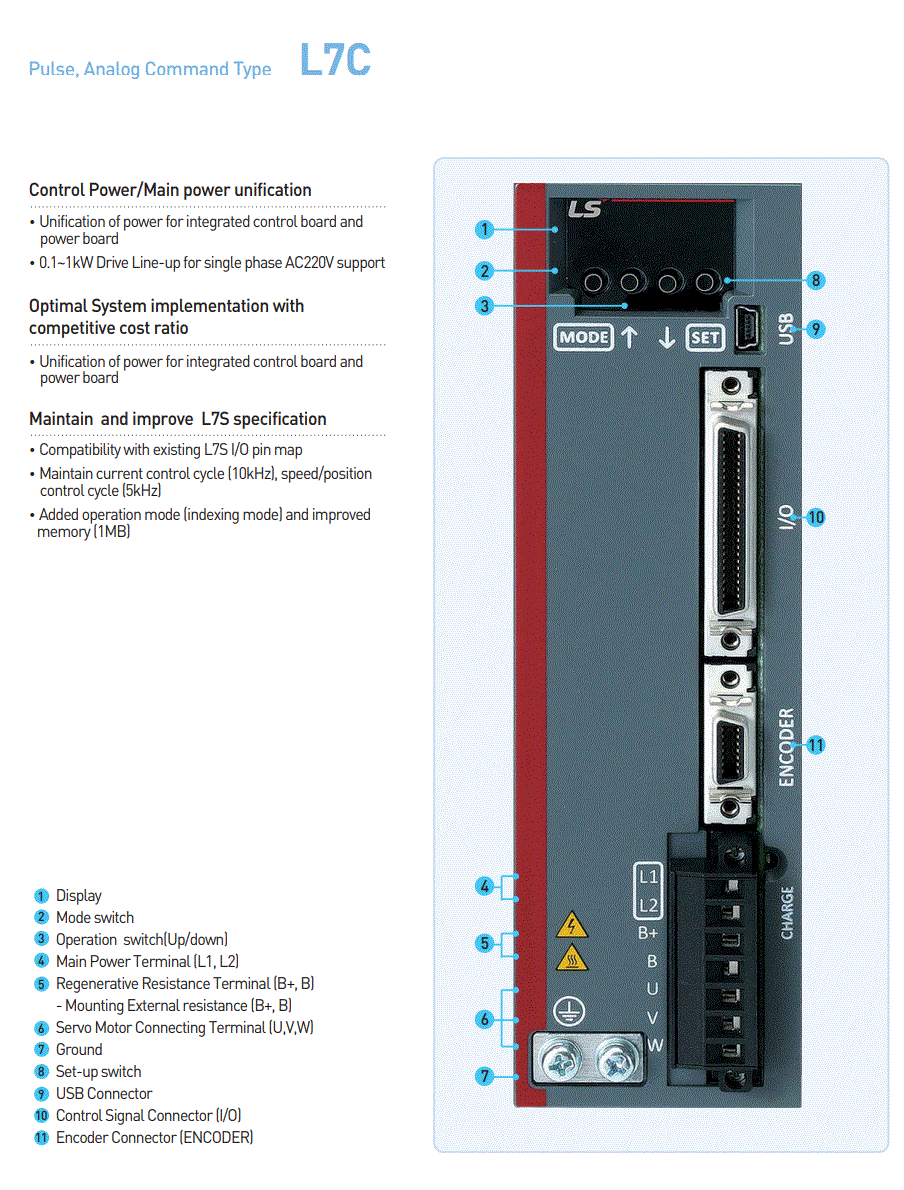

LS Mecapion: L7CA Servo Drive-Pulse, Analog Command Type

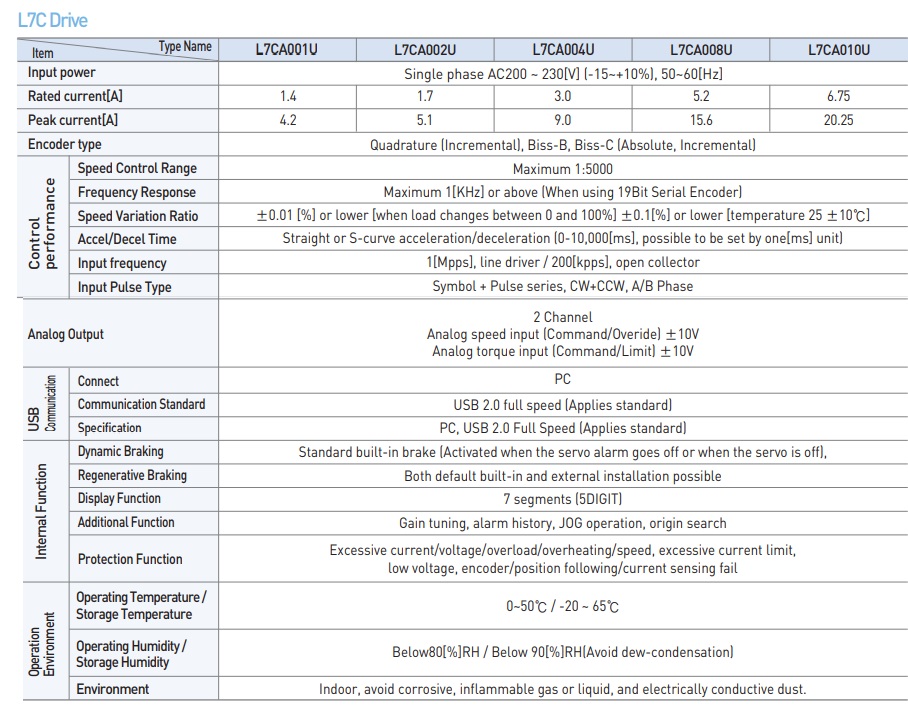

Specifications:

  • Power Rang:100w-1.0Kw

  • Main power supply: Single phase AC200 ~ 230[V] (-15~+10%), 50~60[Hz]

  • Rated current: 1.4[A]-6.75[A]

  • Peak current: 4.2[A]-20.25[A]

  • Encoder type: Incremental encoder, 19Bit BISS Serial encoder

  • Frequency response: Max 1kHz


L7SC Series
List Price

INPUT

Part Number

DESCRIPTION

Unit Price(USD)

1P 220V

L7CA001U

1P-220V, 100W, 1.4A

$428.00

1P 220V

L7CA002U

1P-220V, 200W, 1.7A

$428.00

1P 220V

L7CA004U

1P-220V, 400W, 3.0A

$433.00

1P 220V

L7CA008U

1P-220V, 800W, 5.2A

$489.00


Cables and Connectors Accessory purchase link

Motors Purchase link
