LS Mecapion: L7SB Servo Drive AC400V Series
LS Mecapion: L7SB Servo Drive  AC400V Series

Request Discount Coupon Over Qty5

Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: L7SB-


Model No.:


Qty:
Description Ordering Information Specifications and Drawings

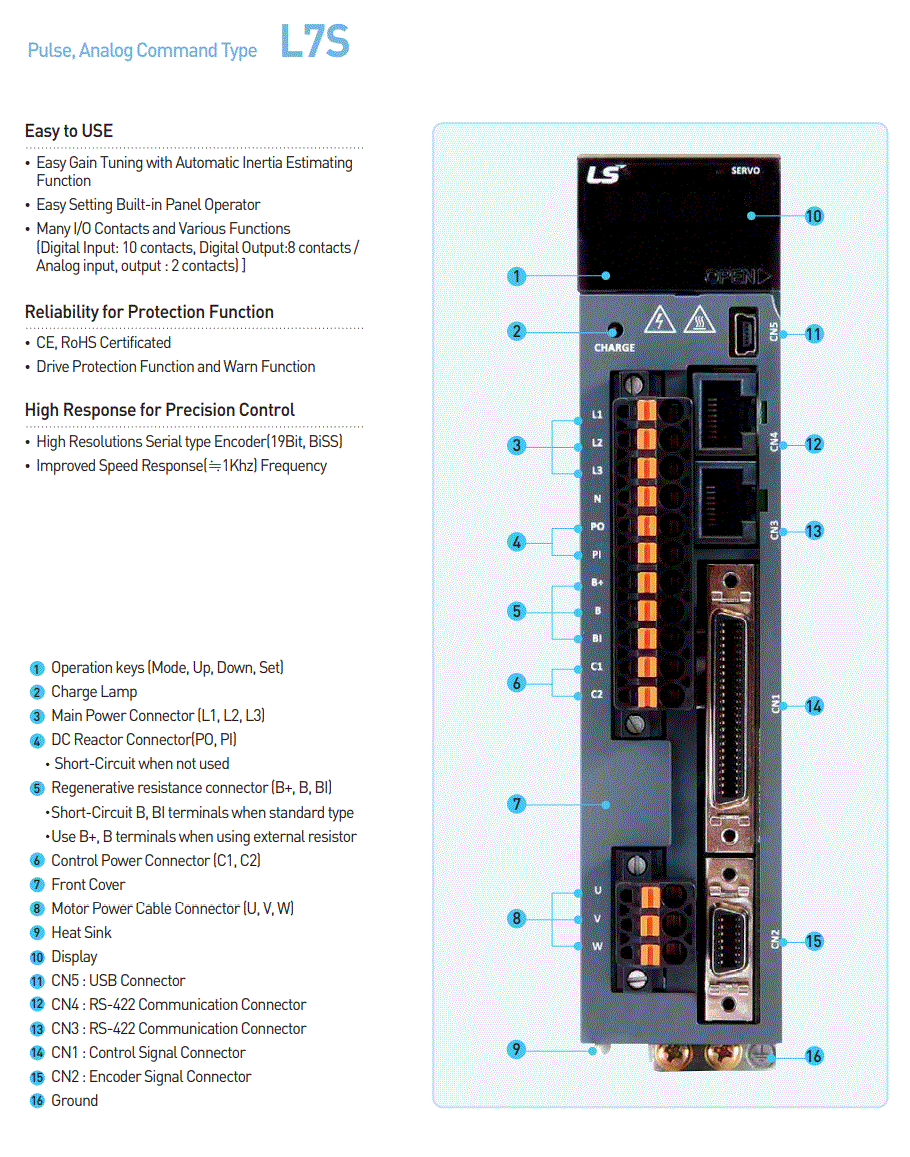

LS Mecapion: L7SB Servo Drive

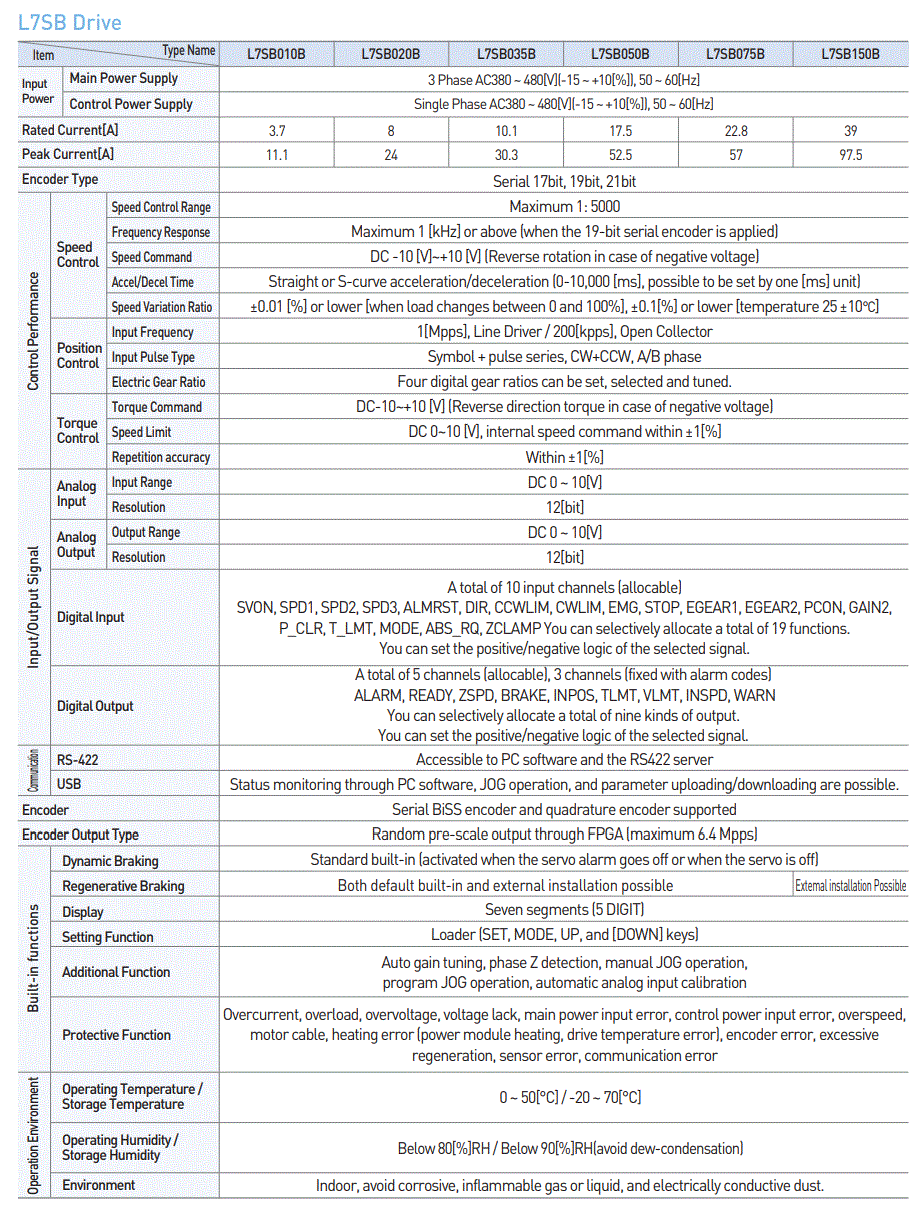

Specifications:

  • Main power supply: 3 Phase AC380 ~ 480[V]
  • Rated Current : 3.7[A]~39[A]
  • Encoder type: Incremental encoder, 19Bit Biss Serial encoder

  • Communication : RS-422 / USB2.0(HID)
  • Capacity : 1[kW]~15[kW]


L7SB Servo Drive List Price

Model

Old Model

Description

Unit Price(USD

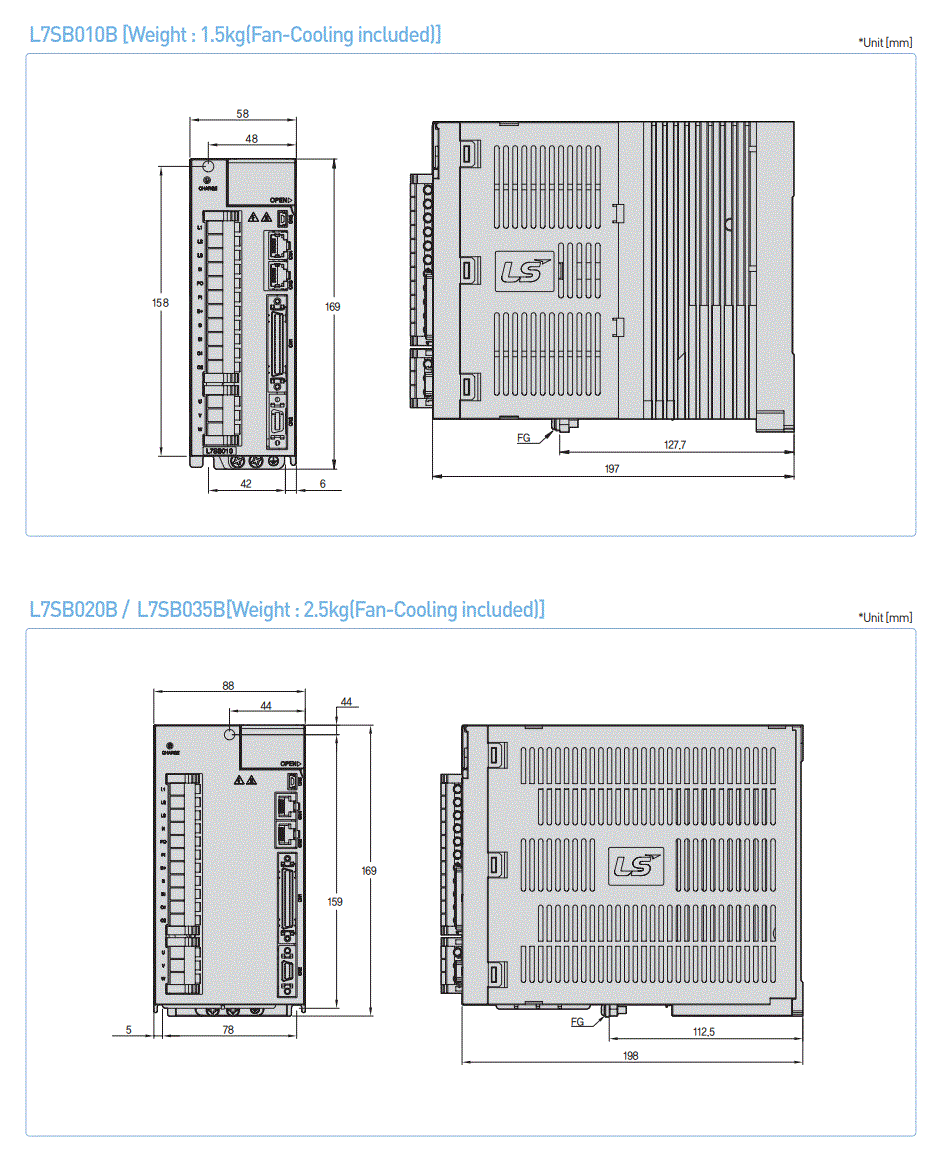

L7SB010B

XDL-L7SB010BE

3P-400V, 1.0KW,3.7A

$772.00

L7SB020B

XDL-L7SB020BE

3P-400V, 2.0KW,8.0A

$1,030.00

L7SB035B

XDL-L7SB035BE

3P-400V, 3.5KW,10.1A

$1,046.00

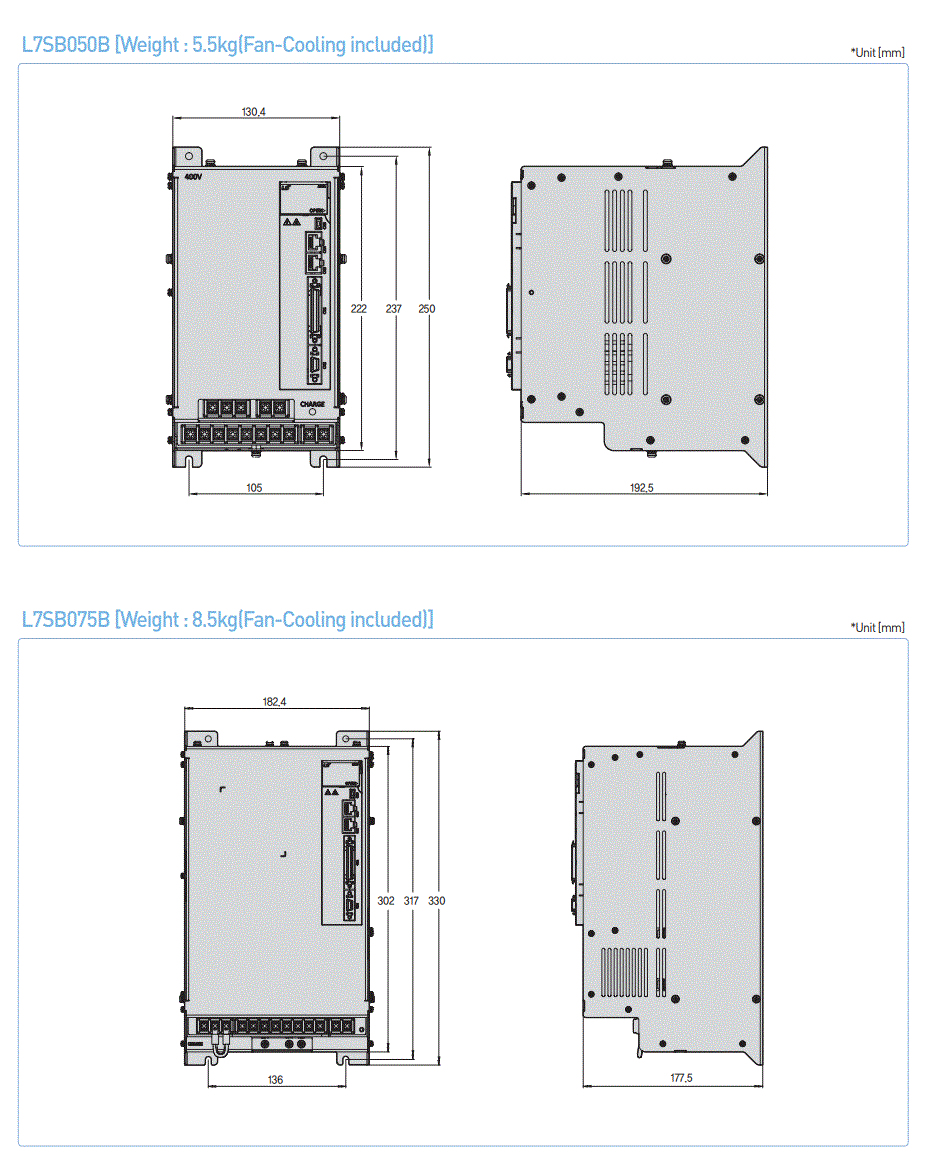

L7SB050B

XDL-L7SB050BE

3P-400V, 15.0KW,17.5A

$1,645.00

L7SB075B

XDL-L7SB075BE

3P-400V, 7.5KW,22.8A

$1,885.00

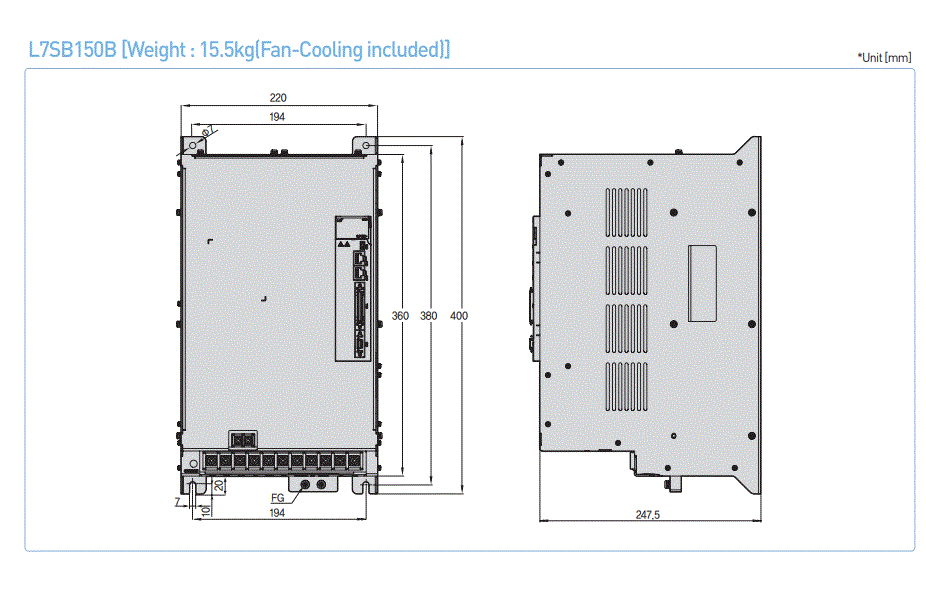

L7SB150B

XDL-L7SB150BE

3P-400V, 15.0KW,39.0A

$3,162.00


Cables and Connectors Accessory purchase link

Motors Purchase link
