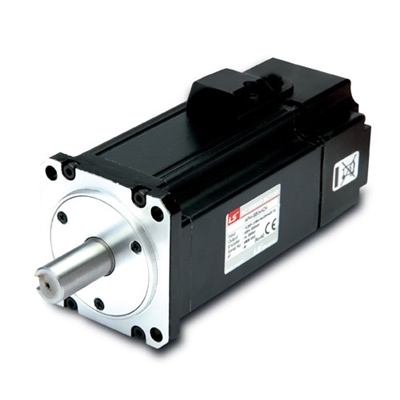

LS Mecapion: Solid Shaft Servo Motor (APM-SB04A)
LS Mecapion: Solid Shaft Servo Motor (APM-SB04A)



Price: (Members Only)

Quantity in Stock:1

Order #: APM-SB04A


Model No.:

Qty:
Description Ordering Information Specifications and Drawings


LS Mecapion: Solid Shaft Servo Motor (APM-SB04A)

Specifications:

  • Flange Size: 60

  • Rated power: 0.4kW

  • Rated/Max torque: 1.274/3.822[N.m]

  • Rated/Max rpm: 3000/5000[rpm]

  • Speed, Position transducer: 2500[P/R]

  • Weight: 1.58 kg

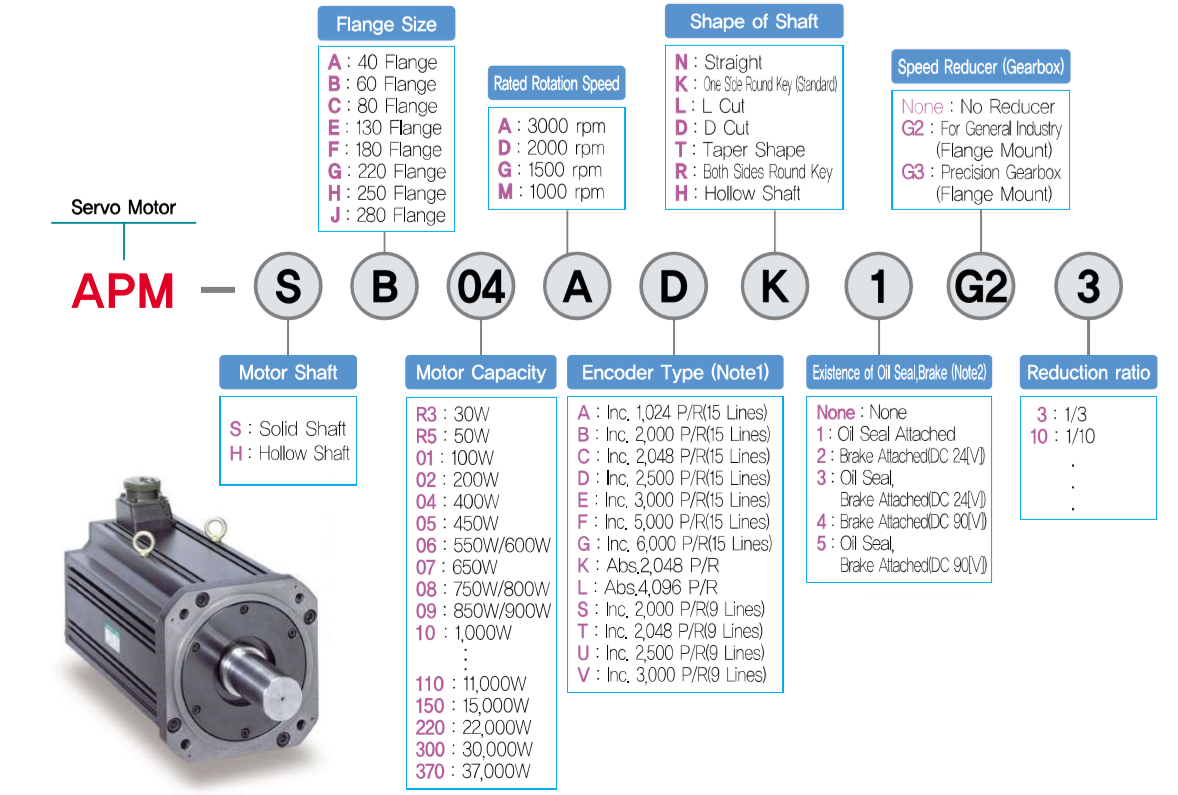

Model No.: APM-SB04ADK, APM-SB04ADK2, APM-SB04ADK3
