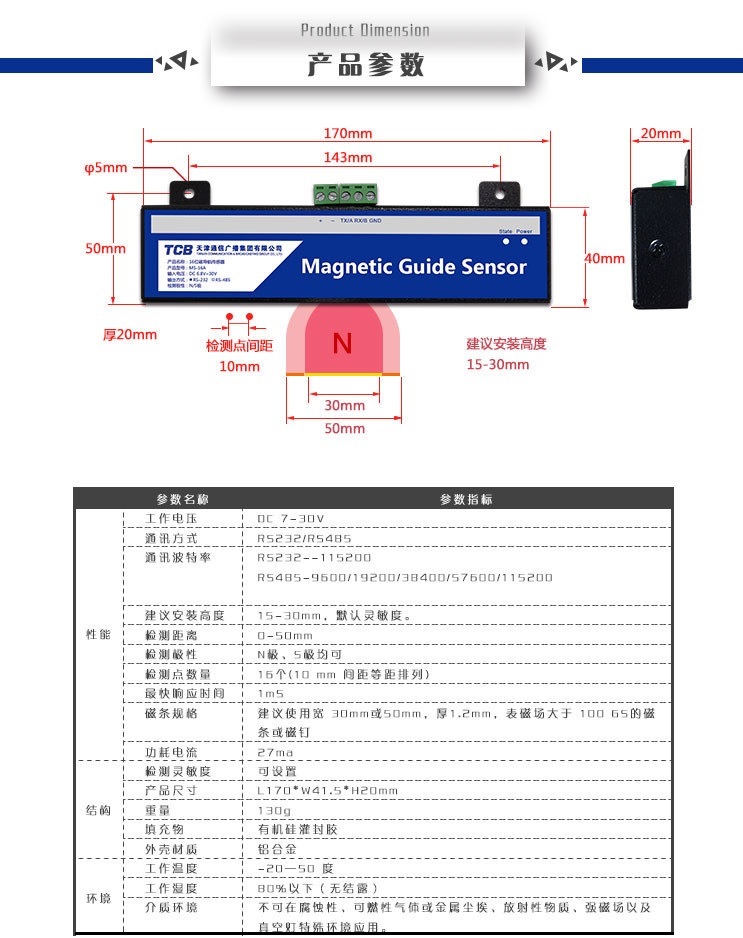

Specifications and Drawings

LUGE Magnetic Guide Sensor
MS-16A-E
The MS-16A economical magnetic navigation sensor independently developed by Tongguang Group uses common RS232 or RS485 interfaces, RS232 supports one-answer and one-answer, automatic reporting communication mode free switching, RS485 uses Modbus RTU standard protocol, compatible with N/S Polar magnetic strips, magnetic nails and magnetic tapes, with an average of 16 Hall sampling points distributed inside the 10mm interval, using imported high-end devices, temperature drift, magnetic saturation, stability, and other performance indicators are located in the same category, able to detect above the magnetic strip A weak magnetic field change below 100 Gauss. Widely used in magnetic navigation mode automatic guidance AGV, AGC, food delivery robot, welcome robot, trackless mobile shelves, trackless inspection vehicles, logistics picking and other industries, three-year warranty.

Accessories

Navigation magnetic strip

(placed)

CCF-N30

Sticking magnetic strip 30MM wide / N pole / ordinary glue

CCF-S30

Sticking magnetic strip 30MM wide / S pole / ordinary glue

CCF-N50

Sticking magnetic strip 50MM wide / N pole / ordinary glue

CCF-S50

Sticking magnetic strip 50MM wide / S pole / ordinary glue

Navigation magnetic strip

(Placement / 3M glue)

CCF-3M-N30
Sticking magnetic strip 30MM wide / N pole / 3M glue

CCF-3M-S30

Sticking magnetic strip 30MM wide / S pole / 3M glue

CCF-3M-N50

Sticking magnetic strip 50MM wide / N pole / 3M glue

CCF-3M-S50

Sticking magnetic strip 50MM wide / S pole / 3M glue

Navigation magnetic strip

(buried)

CCF-N0610

6*10/N pole

CCF-S0610

6*10/S pole

CCF-N1010
10*10/N pole

CCF-S1010

10*10/S pole
