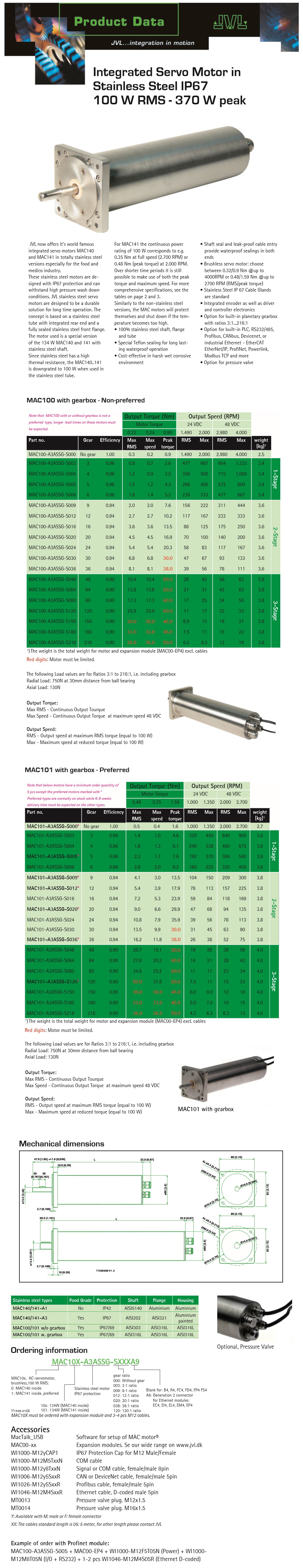

JVL: Integrated Servo Motors (MAC100/MAC101 Series) Stainless Steel IP67 | 100 W RMS - 370 W peak JVL now offers it’s world-famous integrated servo motors MAC140 and MAC141 in totally stainless steel versions especially for the food and medico industry. These stainless steel motors are designed with IP67 protection and can withstand high- pressure wash down conditions. JVL stainless steel servo motors are designed to be a durable solution for long time operation. The concept is based on a stainless steel tube with an integrated rear end and a fully sealed stainless steel front flange. The motor used is a special version of the 134 W MAC140 and 141 with stainless steel shaft. Since stainless steel has a high thermal resistance, the MAC140..141 is downgraded to 100 W when used in the stainless steel tube. For MAC141 the continuous power rating of 100 W corresponds to e.g. 0.35 Nm at full speed (2.700 RPM) or 0.48 Nm (peak torque) at 2.000 RPM. Over shorter time periods it is still possible to make use of both the peak torque and maximum speed. For more comprehensive specifications, see the tables on page 2 and 3. Similarly to the non-stainless steel versions, the MAC motors will protect themselves and shut down if the temperature becomes too high. 100% stainless steel shaft, flange, and tube Special Teflon sealing for long-lasting waterproof operation Cost-effective in a harsh wet corrosive environment Shaft seal and leak-proof cable entry provide waterproof sealing in both ends Brushless servo motor: choose between 0.32/0.9 Nm up to 4000RPM or 0.48/1.59 Nm up to 2700 RPM (RMS/peak torque) Stainless Steel IP 67 Cable Glands are standard An Integrated encoder as well as driver and controller electronics Option for built-in planetary gearbox with ratios 3:1...216:1 Option for built-in PLC, RS232/485, Profibus, CANbus, DeviceNet, or industrial Ethernet - EtherCAT EtherNet/IP, ProfiNet, Powerlink, Modbus TCP and more Option for the pressure valve
Model No.: MAC100-A3ASSG-S000, MAC100-A3ASSG-S003, MAC100-A3ASSG-S004, MAC100-A3ASSG-S005, MAC100-A3ASSG-S006, MAC100-A3ASSG-S009, MAC100-A3ASSG-S012, MAC100-A3ASSG-S016, MAC100-A3ASSG-S020, MAC100-A3ASSG-S024, MAC100-A3ASSG-S030, MAC100-A3ASSG-S036, MAC100-A3ASSG-S048, MAC100-A3ASSG-S064, MAC100-A3ASSG-S080, MAC100-A3ASSG-S120, MAC100-A3ASSG-S150, MAC100-A3ASSG-S180, MAC100-A3ASSG-S216, MAC101-A3ASSG-S000, MAC101-A3ASSG-S003, MAC101-A3ASSG-S004, MAC101-A3ASSG-S005, MAC101-A3ASSG-S006, MAC101-A3ASSG-S009, MAC101-A3ASSG-S012, MAC101-A3ASSG-S016, MAC101-A3ASSG-S020, MAC101-A3ASSG-S024, MAC101-A3ASSG-S030, MAC101-A3ASSG-S036, MAC101-A3ASSG-S048, MAC101-A3ASSG-S064, MAC101-A3ASSG-S080, MAC101-A3ASSG-S120, MAC101-A3ASSG-S150, MAC101-A3ASSG-S180, MAC101-A3ASSG-S216
|
|
|
 |
|
 |
|
