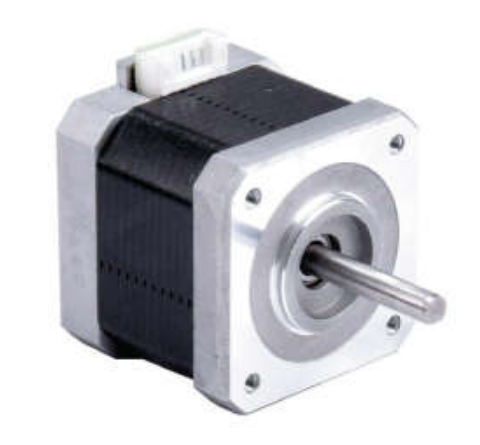

MOONS': NEMA 17 High Precision Hybrid Stepper Motor MS17HA2P4100

A stepper motor is an Open-loop control element which converts electrical pulse signals into angular or linear displacements, By controlling the sequence, frequency and quantity of electrical pulses working on the motor coils, we can achieve the control for the velocity, rotation, and rotation angle of a stepper motor. Matching with a linear motion executive module or gear box device, will satisfying more complicated and precise linear motion controlling demands.

Due to our professional technology and experience in designing, developing, manufacturing, and marketing of stepper motors, MOONS' supplies abundant stepper motor products series, with different phases and step angle for your selection. Each of the series has its unique advantages and characteristics, in order to meet the demands of different customers and different applications.

MOONS' Step Motor Advantage

Included are a number of improvements in performance and value:

  • Many refinements that increase torque by an average of 20%

  • Complete range of sizes: 8, 11, 14, 16, 17, 23, 24, 34, 42

  • Size 17 and larger 2 phase motors are UL recognized

  • 0.9 degree 2 phase motors, and 3 phase motors for extra smooth, quiet, performance

  • PowerPlus technology: for maximum efficiency and performance at all speeds

  • Lower inertia rotors provide faster acceleration

  • High voltage insulation for use with high voltage, high-performance drives

  • Low loss stators have better high-speed performance

  • Standard windings with high fill for more torque

High Accuracy Hybrid Stepper Motors

Because the step angle is only half of the 1.8 °stepper motor, the 0.9 °stepper motor has a higher resolution and smoother operation. The driver of 0.9 °stepper motor and of 1.8 °stepper motor is exactly the same. An example of a good application for 0.9°motors is security cameras.0.9 °stepper motor can make the camera operating smoothly and accurately, which avoid the situations that causing the camera shaking that results in the image blur.

Specifications

  • Frame Size: NEMA 17

  • Step Angle: 0.9°

  • Holding Torque: 190 mN•m~550 mN•m

  • Low vibration; Low noise

  • Higher motor efficiency

  • Optimal copper factor

  • Smooth precise movement & Running quiet

Electrical Specifications

  • Phase: 2

  • Steps/ Revolution: 400

  • Step Angle: 0.9°

  • Step Accuracy: ±5%

  • Insulation Class: B, 130℃

  • Insulation Resistance: 100 MegOhms

  • Axial Load: 25N (5.6 Lbs.) Push, 65N (15 Lbs.) Pull

  • Radial Load: 30N (6.5 Lbs.) At Flat Center

  • Operating Temp.: -20℃~50℃

  • IP Rating: IP 40

  • Approvals: RoHS


Model No.:
MS17HA2P4040, MS17HA2P4100, MS17HA2P4150, MS17HA2P4200, MS17HA2P6040, MS17HA2P6085, MS17HA2P6130, MS17HA4P4040, MS17HA4P4100, MS17HA4P4150, MS17HA4P4200, MS17HA4P6038, MS17HA4P6085, MS17HA4P6120, MS17HA6P4050, MS17HA6P4100, MS17HA6P4150, MS17HA6P4200, MS17HA6P6040, MS17HA6P6080, MS17HA6P6130, MS17HA6P6200


MS17HA2P4100

Stepper motor, High accuracy, High efficiency, High reliability, 2-phase, 0.9°, NEMA17

● High Resolution,Low Noise
● High Torque,Low Vibration
● High Efficiency
● Available options for Wire Harness, Flexible Coupling, Damper
