Parker: Round Frame Three-Phase Induction Motors MR2P00181BR1T110000
Parker: Round Frame Three-Phase Induction Motors (MR Series) MR2P00181BR1T110000

Alternate View


Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MR2P00181BR1T110000


MR motor Model*:


.

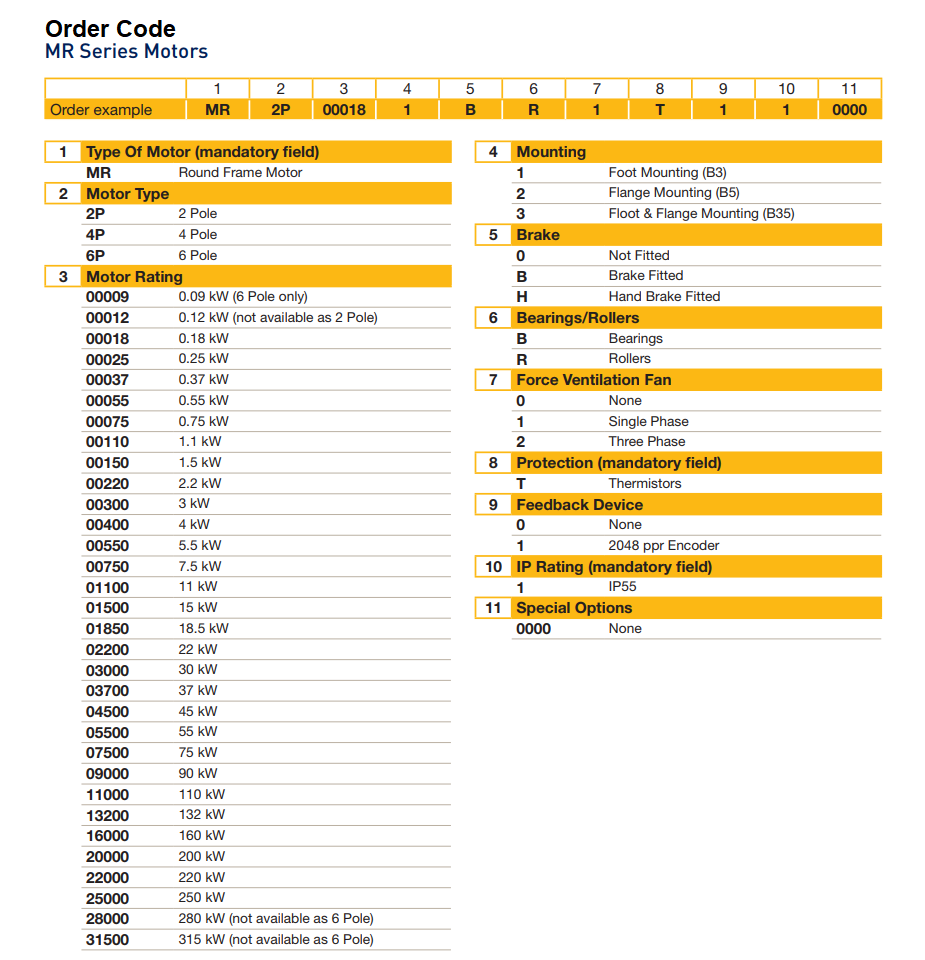

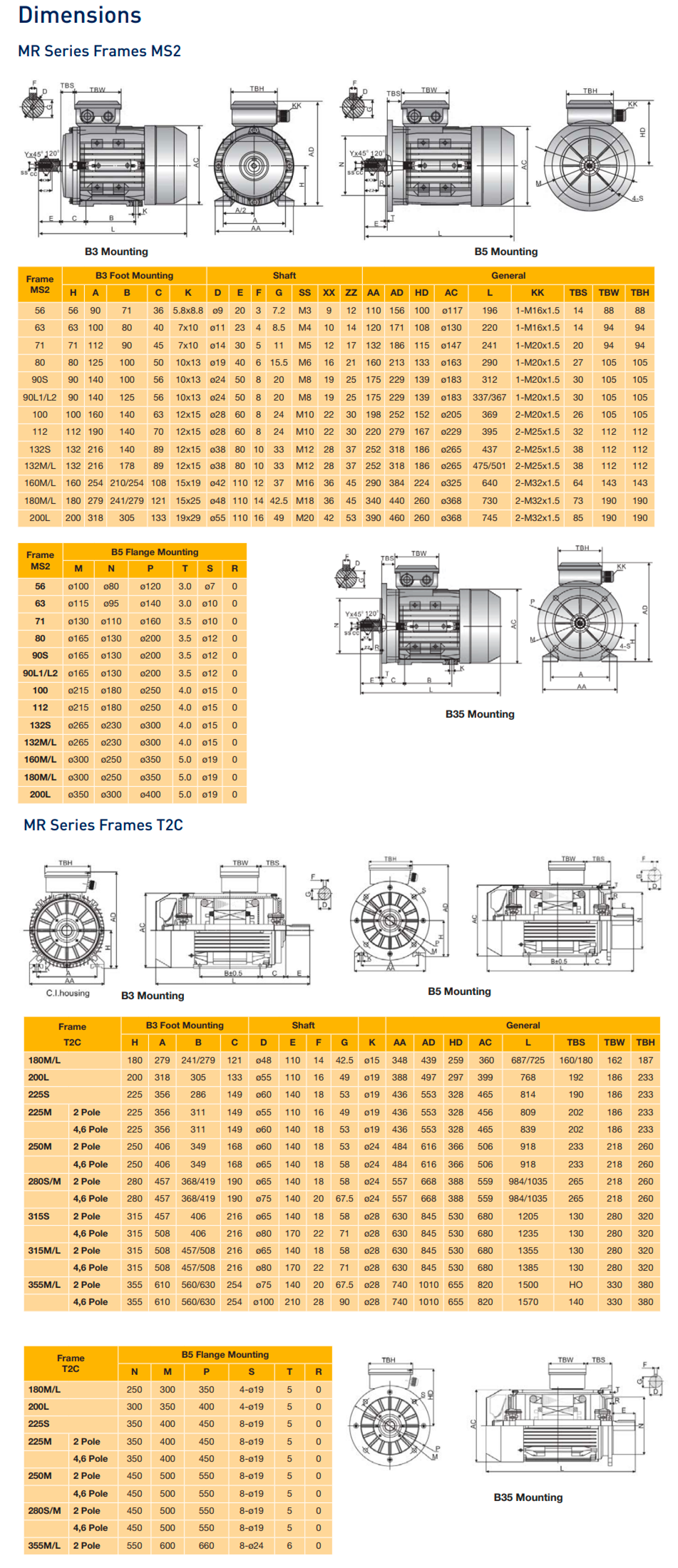

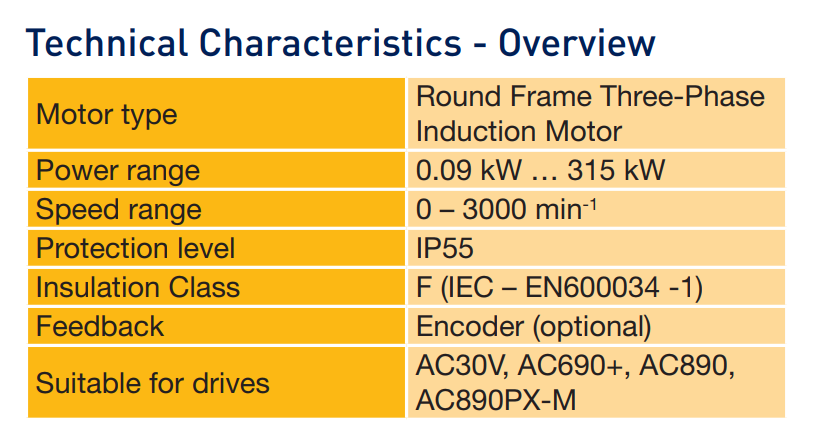

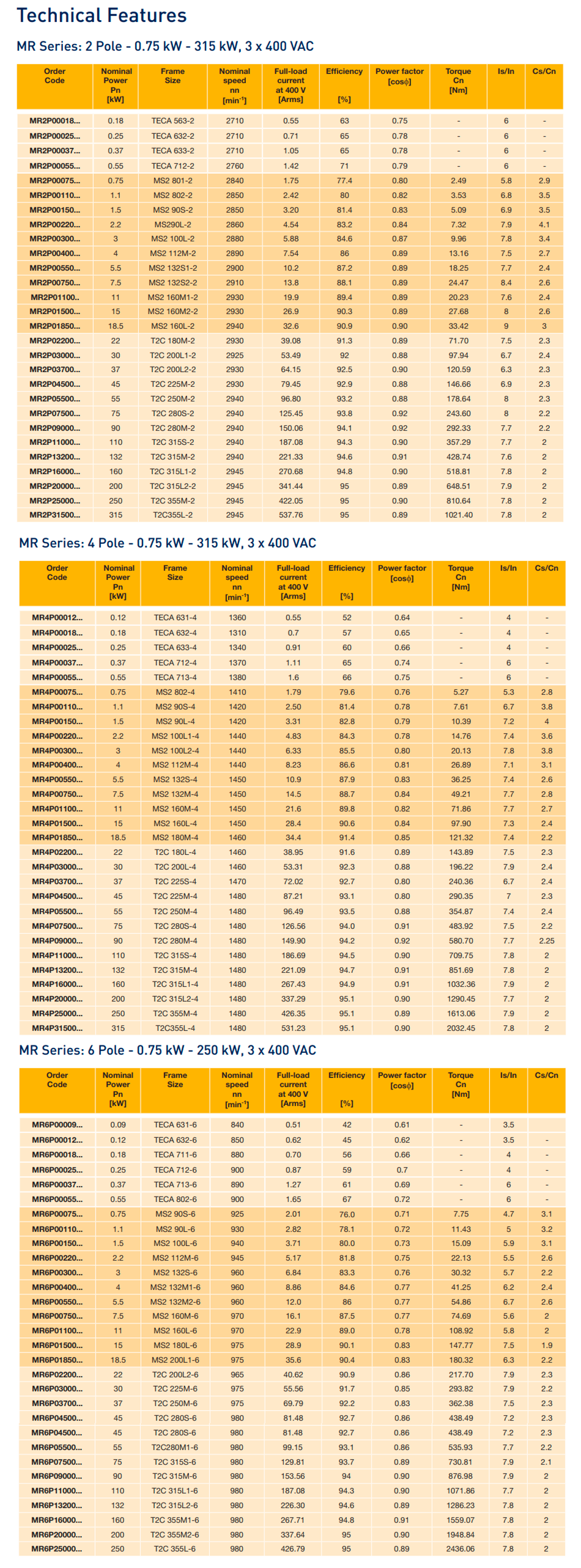

Description Ordering Information Specifications and Drawings


Parker: Round Frame Three-Phase Induction Motors (MR Series) MR2P00181BR1T110000

These IE2 efficiency round frame three-phase induction motors are suitable for use with the entire range of Parker variable speed AC drives.
Featuring a durable rigid construction, these motors are specially engineered for use in heavy industrial applications.
Featuring axial, In-Line force ventilation fan and optional 2048 ppr encoder, the round frame MR Series motor is suitable for general purpose open or closed-loop control applications, with maximum speeds up to 3000 /min.

For higher dynamic performance, such as that required in printing or test rig applications, the MS series square frame vector motor should be considered.

Features:
Light aluminium body up to and including 160 frame size. Cast iron construction over 160 frame
• IP55 Protection as minimum
• Foot, flange, or foot and flange mounting options
• Insulation Class F (IEC - EN60034 -1)
• Auxiliary cooling fan allowing low-speed operation
• 3x PTC thermistors embedded in motor stator as standard
• Holding brake or brake with hand release (Option)
• 2048 ppr encoder (Option)
• 2,4, or 6 poles (Option)






  • MR motor Model: MR2P000091BR1T110000, MR2P000121BR1T110000, MR2P000181BR1T110000, MR4P000091BR1T110000, MR4P000121BR1T110000, MR4P000181BR1T110000, MR6P000091BR1T110000, MR6P000121BR1T110000, MR6P000181BR1T110000


Downloads:

MR Round Frame Asynchronous Motor Catalog
