MYCOM: 2 Phase Hi-Torque Stepper Motor PF445-01A

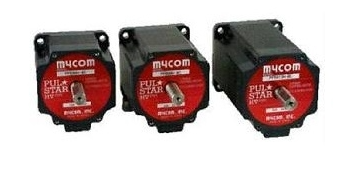

MYCOM 2 Phase Stepper Motor


Price: (Members Only)


Availability: 2 in the warehouse
Order #: PF445-01A
Qty:

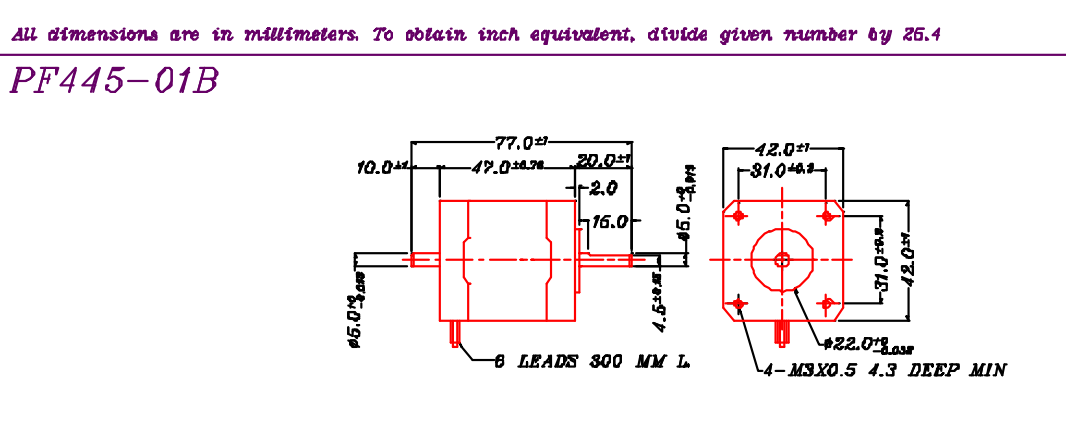

Description Specifications and Drawings


MYCOM: 2 Phase Stepper Motor PF445-01A

(Hi-Torque)

Features

  • 2 Phase Stepper Motor ( ** CE approved )

  • Six leads for various wiring configurations

  • Wide selection range to suit various applications

  • 1.1~66 Kgcm Max. Holding Torque

  • Compact size for high Torque performance

  • Highly cost effective

  • Conformed to CE standard (for PCE range)

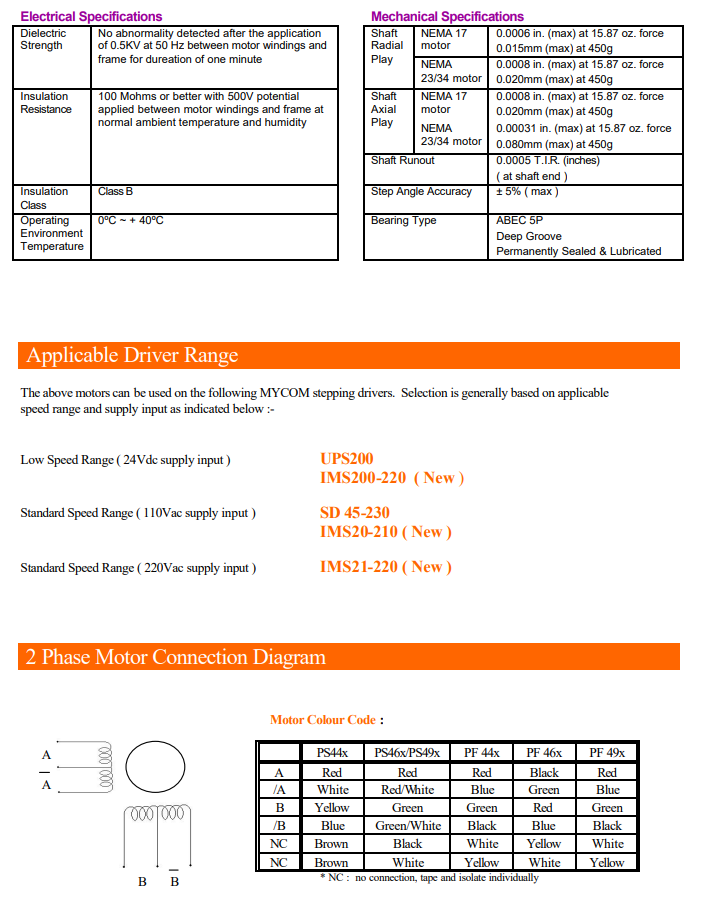

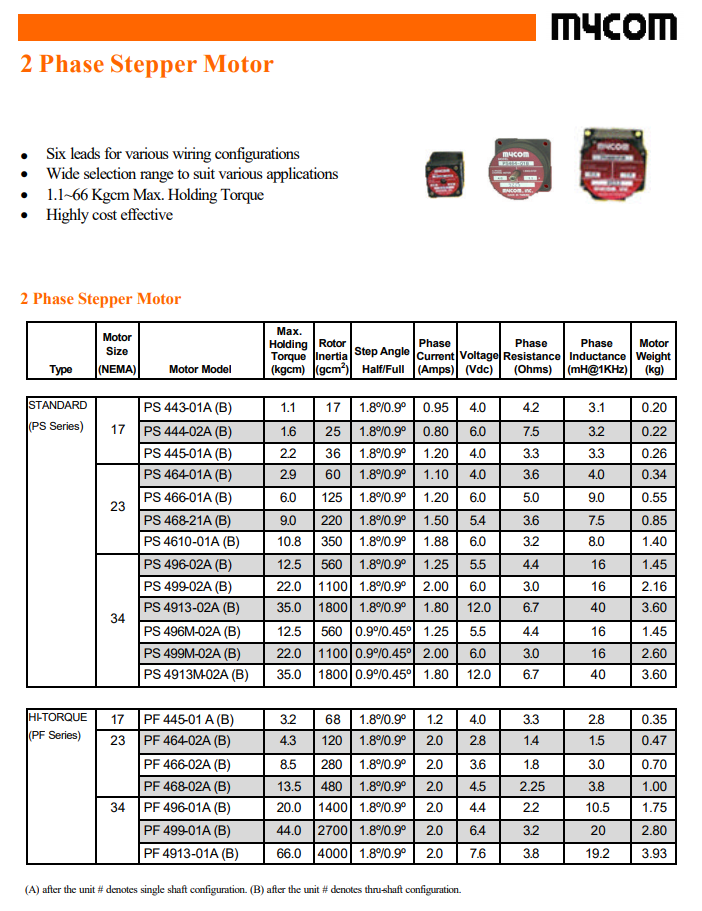

2 Phase Stepper Motor PDF

Model Number: PF445-01A
