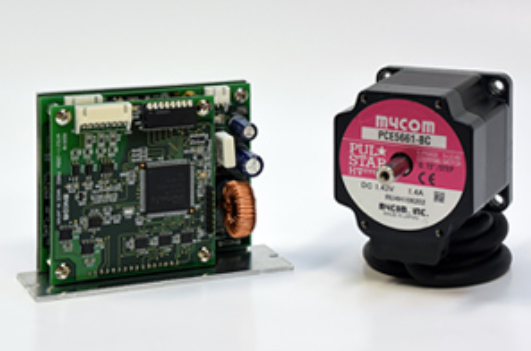

MYCOM: 5-phase stepping motor (ISD510 Series)
MYCOM: 5-phase stepping motor (ISD510 Series)



Price: (Members Only)


Availability: 1-2 weeks lead time
Order #: ISD510


Model No.:


Qty:
Description Specifications and Drawings

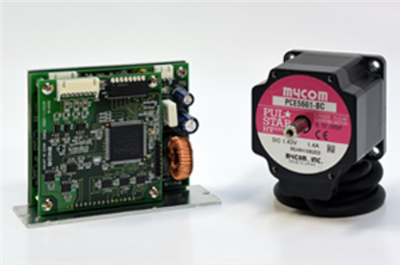

MYCOM: 5-phase Stepping Motor (ISD510 Series)

Power-supply: DC24V ± 10%
Features:

  • Supports not only the conventional star bipolar system but also the new Pentagon / Pentagon 5-phase stepping motor
  • Significant suppression of motor vibration
  • Microstep High resolution drive (up to 1/500)
  • Pulse input method switching
  • Drive current off function (CO)
  • Automatic current down function (A.CD)
  • Excitation origin signal (MONI) output
  • Wiring method switching
  • Current setting switching

Model No.: ISD 510-LA, ISD 510-CA
