Mitsubishi Servo Drive Unit-MDS-C1-V2-7045

MITSUBISHI Servo drive unit MDS-C1-V2-7045 fitted with MITSUBISHI HA Servo motors of CNC Machine-tools. The characteristics of this servo drive type MDS-C1-V2-7045 are:

Rated input :
-AC 200-230V 50/60Hz 0.2A / DC270-311V 65A (Input rating)

Rated output :
- 33A/28A (7.0kW/4.5kW)

This MITSUBISHI ELECTRIC MDS-C1-V2-7045 servo drive unit is ready to replace your defective drive and comes with a warranty.

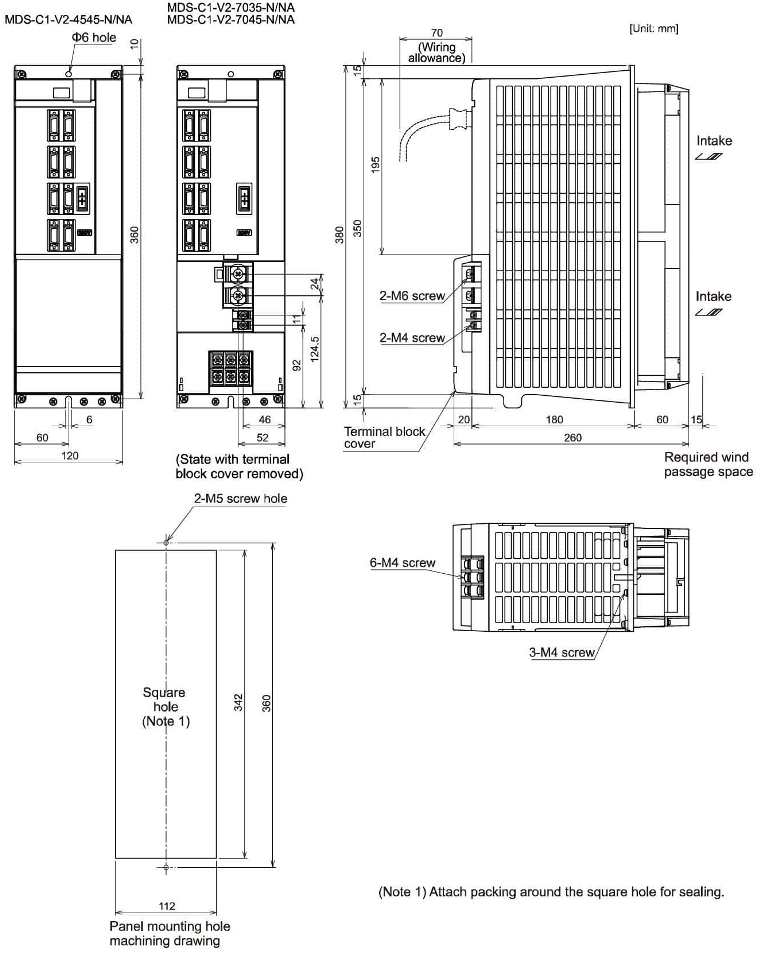

Each MITSUBISHI Electric MDS Servo drive unit is installed into a sealed cabinet structure as a standard. Consider each unit's heat radiation and wiring, and secure enough space for ventilation while referring to the drawing. MITSUBISHI ELECTRIC MDS-C1-V2-7045 MDSC1V27045

The MDS-C1-V1/V2 servo drive unit has a function to D/A output the various control data. The servo adjustment data required for setting the servo parameters to match the machine can be D/A output. Measure using a hi-coder, oscilloscope, etc.
With the MDS-C1-V1/V2 Series, control is possible with the standard servo (MDS-B-V1/V2) control mode and high-gain servo (MDS-B-V14/V24) control mode. When replacing an older model (MDS-B Series) with this series, the servo parameter settings are automatically recognized and the control mode is determined. Thus, the model can be changed from either a standard servo or high-gain servo without changing the servo parameters. When using the MDS-C1-V1/V2 unit and newly adjusting the machine, select the high-gain specifications. The high-gain specifications are set as the default.
