Mitsubishi Servo Drive Unit
Mitsubishi Servo Drive Unit-MDS-D-SVJ3-35

Alternate View
Call for Pricing

Price Quote Form

New.
Core Exchange: Option

Repair: Not offering at this time

Price: (Members Only)


Availability: Usually Ships in 2 to 3 Weeks
Order #: MDS-D-SVJ3-35
.

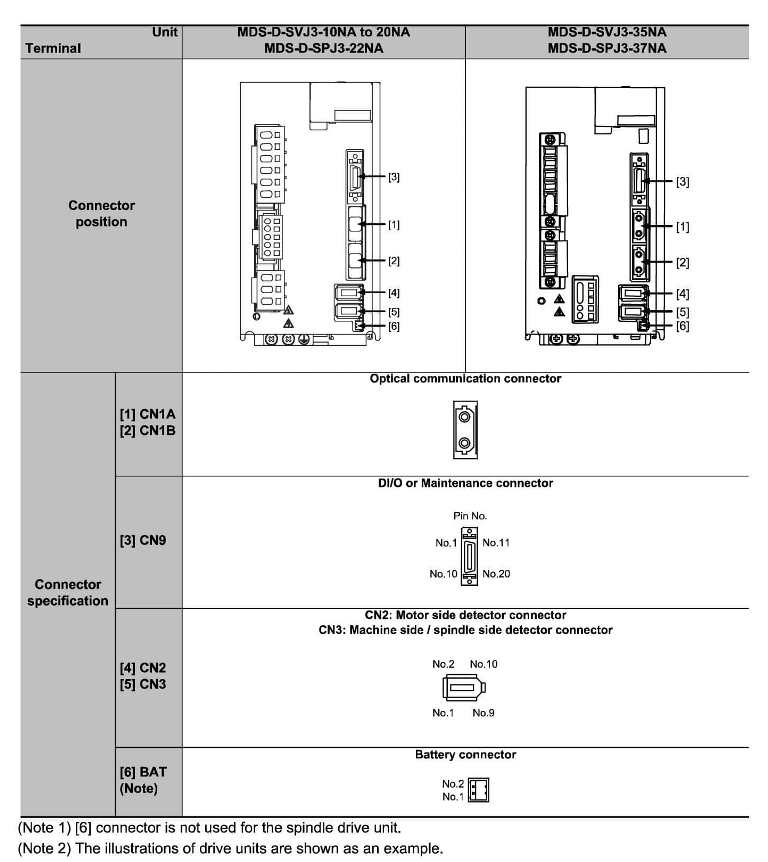

Description Ordering Information Specifications and Drawings


Mitsubishi Servo Drive Unit-MDS-D-SVJ3-35

The power of this servo drive is 3.5kW. The characteristics of this servo drive type MDS-D-SVJ3-35 are:

Rated input:
-3AC 200-230V 50/60Hz 16A (power board)
-AC 200-230V 50-/60Hz 0.2A (control board)

Rated output:
-3AC 170V 0-240Hz 17A

The MITSUBISHI ELECTRIC manual number is IB-1500158. This MITSUBISHI ELECTRIC MDS-D-SVJ3-35 servo drive unit is ready to replace your defective drive and comes with a warranty.

The servo control is all closed loop control using the encoder's feedback. "Full closed loop control" is the system that directly detects the machine position using a linear scale, whereas the general "semi-closed loop" is the one that detects the motor position.
