Mitsubishi Spindle Drive

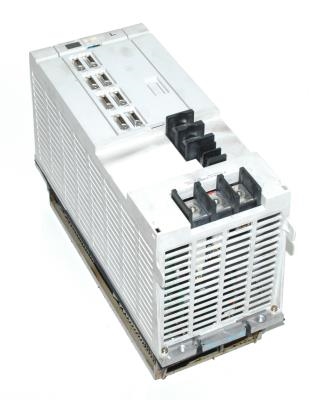

Mitsubishi Spindle Drive MDS-C1-SP-220

Alternate View
Call for Pricing

Price Quote Form

Refurbished
Core Exchange: Option

Repair: Not offering at this time
All our refurbished and repaired FANUC CNC products are thoroughly inspected and tested by certified repair technicians
Validity: 1 Year (Service Warranty).

Price: (Members Only)


Availability: Usually Ships in 2 to 3 Weeks
Order #: MDS-C1-SP-220
.

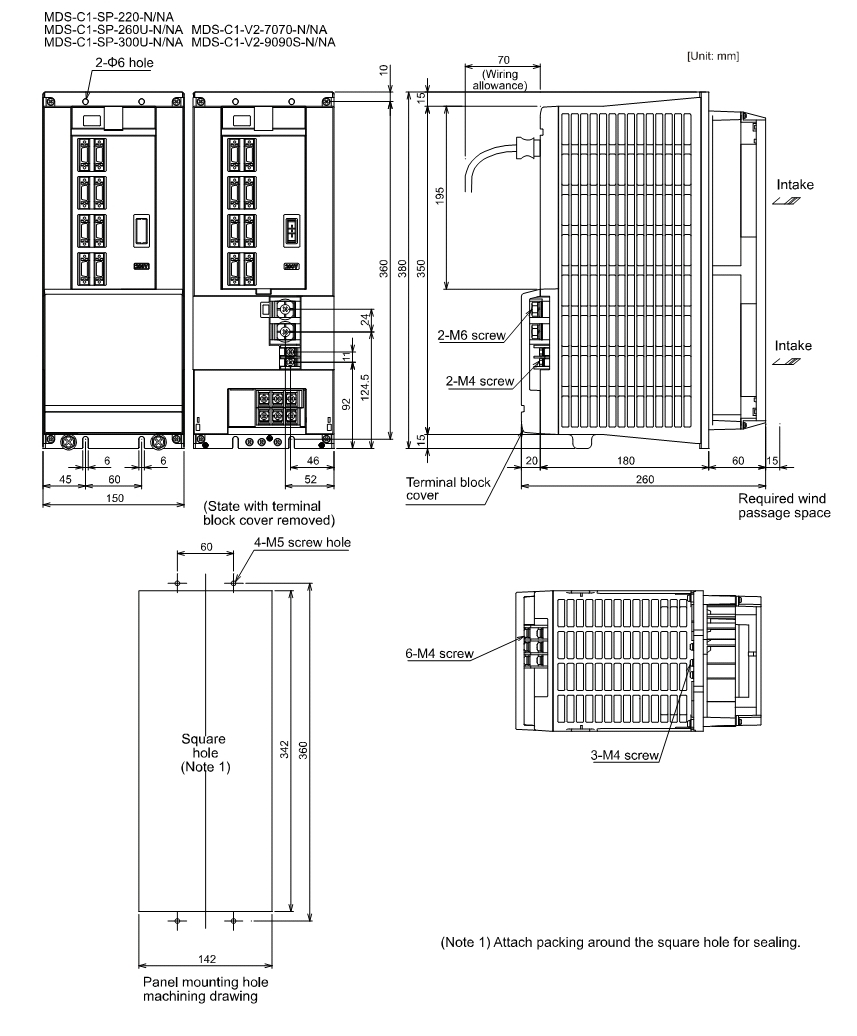

Description Specifications and Drawings


MITSUBISHI MDS-C1-SP-220 CNC Spindle drive unit.

MITSUBISHI Electric MDS-C1-SP-220 (MDSC1SP220)This is a MITSUBISHI Electric spindle drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor with a max output capacity of 22kW (79A rated output from the spindle drive unit).

MITSUBISHI Electric MDS-C1-SP-220 Rated input :

DC270-311V : 95A

AC200-230V : 0.2A

MITSUBISHI Electric MDS-C1-SP-220 Rated output : 3AC - 79A

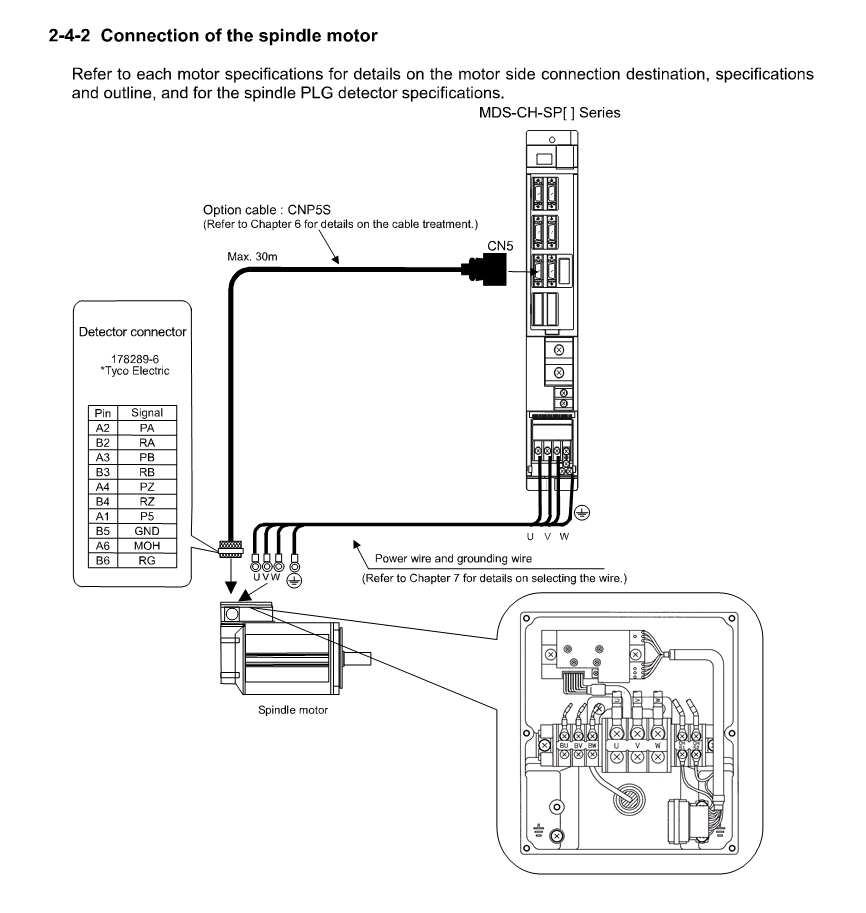

In systems wich use a MITSUBISHI Electric MDS-C1-SP-220 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output (190W). The power supply unit capacity is determined by the motor output, and the spindle drive unit capacity is determined by the motor characteristics
