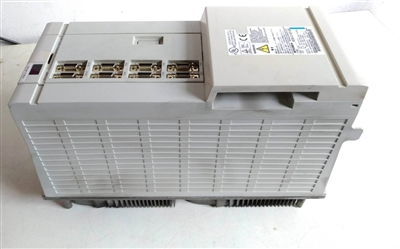

MITSUBISHI MDS-C1-SP-300 CNC Spindle
drive unit.
FEATURES:
The
Mitsubishi MDS-C1-SP-300 (MDSC1SP300) is a 30kW MDS series spindle drive. This
spindle drive has both an input and an output. The voltage is 155VAC for the
output and ranges from 270 to 311VDC for the input; and concerning the current,
the output’s is 130A and the input’s is 144A. The MDS-C1-SP-300 spindle drive
also has a power supply, whose voltage extends from 200 to 230VAC. The power
supplies frequency is 50/60Hz, and its current is 0.2A.
There are eight ports and three terminals on the MDS-C1-SP-300 spindle drive.
Ports CN9, CN6, CN7, and CN8 are all open ports upon this spindle drive. To
connect a spindle motor to this spindle drive, the encoder of the chosen
applicable spindle motor must attach using a cable to the CN5 port of the
spindle drive. Another connection must be made with the spindle motor by
linking it to the U, V, and W terminals. Accomplishing this, to link the
MDS-C1-SP-300 spindle drive to a servo drive, a linkage must be made between
its CN1A port with the CN1B port of the servo drive which can be of the
MDS-C1-V[] or MDS-C1-V[] series. Then, the servo drive may end the series of
connections by making a NC (No Connection). Then, the port next to the CN1A
port of the spindle drive is the CN1B port that can either link to a battery
module, or can terminate the series of connections by linking with a
terminator. Lastly, the MDS-C1-SP-300 spindle drive’s CN4 port can link to the
similar port of a power supply module.
The MDS-C1
Series incorporates a highly efficient heat dissipating structure, so the depth
of the fin section is smaller than the MDS-A/B Series. Units with an
"S" at the end of the type have a smaller unit width than the MDS-A/B
Series. When designing the control panel with these unit outline dimensions, it
may not be possible to mount the conventional drive unit.
MITSUBISHI
Electric MDS-C1-SP-300 (MDSC1SP300) This is a MITSUBISHI Electric spindle
drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor
with a max output capacity of 30kW (130A rated output from the spindle drive
unit).
MITSUBISHI
Electric MDS-C1-SP-300 Rated input :
DC270-311V : 144A
AC200-230V : 0.2A
MITSUBISHI
Electric MDS-C1-SP-300 Rated output : 3AC - 130A
In systems which
use a MITSUBISHI Electric MDS-C1-SP-300 Spindle drive unit, the
spindle drive unit must be placed next to the power supply as shown in the
connection manuals. Each units generates some heat, so leave a space on the top
and bottom when installing other equipment or parts. The heating value for the
spindle drive unit for during continuous rated output (190W). Buy MITSUBISHI
Spindle drive unit MDS-C1-SP-300 online.
The power supply unit capacity is determined by the
motor output, and the spindle drive unit capacity is determined by the motor
characteristics
