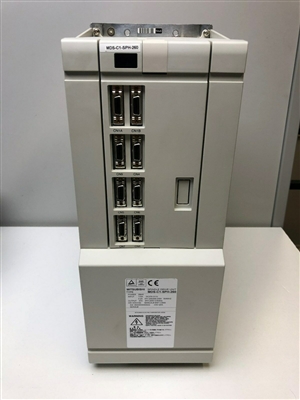

MITSUBISHI MDS-C1-SPH-260CNC Spindle
drive unit.
MITSUBISHI
MDS-C1-SP-H260 This is a spindle drive unit MITSUBISHI MDS-C1-SPH-260 type MDS that
permits a CNC Machine-tools to drive a MITSUBISHI AC Spindle motor with a max
output capacity of 26kW (97A rated output from the spindle drive
unit). The characteristics of this spindle drive unit MITSUBISHI MELDAS
MDS-C1-SPH-260 are the following:
Input: 115A
DC270-311V
0.2A 1PH 200/200-230V
50/60Hz
Output: 97A
3PH 200V 0-833Hz
Power: 26kW
In systems
which use a MITSUBISHI Electric MDS-C1-SPH-260 Spindle drive
unit, the spindle drive unit must be placed next to the power supply

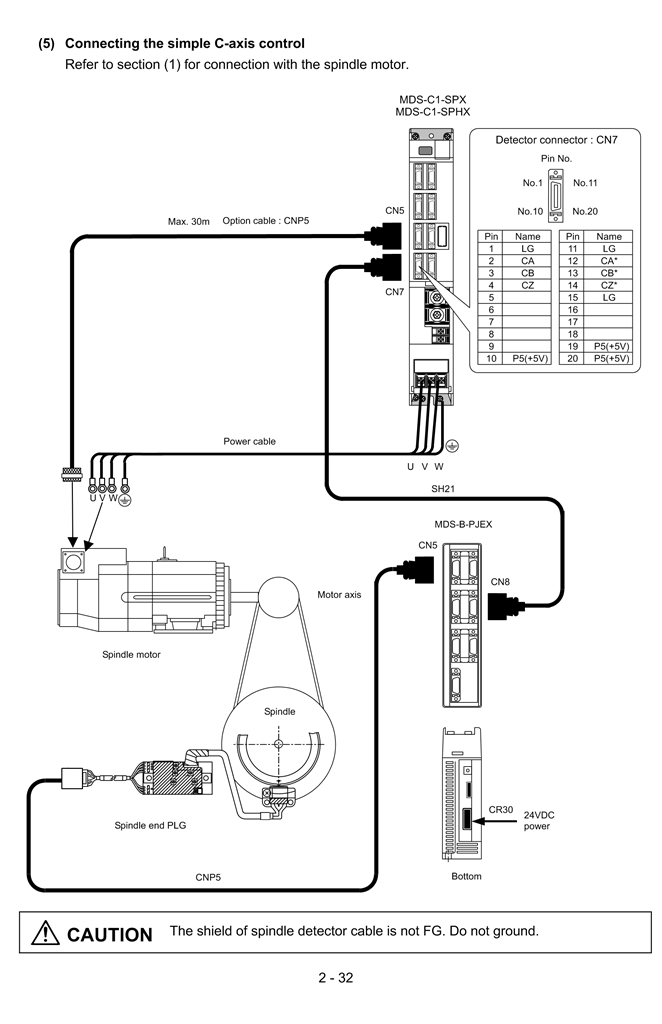

MDS-C1-CV-* as shown in the connection manuals. Each units generates some heat,
so leave a space on the top and bottom when installing other equipment or
parts. The heating value for the spindle drive unit for during continuous rated
output (190W). The power supply unit capacity is determined by the motor
output, and the spindle drive unit capacity is determined by the motor
characteristics
Features of
the MDS-C1-SP spindle system.
(1) The
converter that was conventionally built into the spindle controller has been
installed in the unit (MDS-C1-SP), and can be used commonly with the other axis
drive units. This allows great reductions in size and weight.
(2) The
speed response has been improved by using a high-speed CPU, and the cutting
performance and cutting precision during positioning control has been improved.
(3) A
high-speed orientation method that allows direct orientation from high-speeds
has been incorporated allowing smooth operations and minimum orientation times.
(4) All
spindle parameters can be set from the NC CRT screen thus enhancing the
operability.
