Mitsubishi Spindle Drive
Mitsubishi Spindle Drive MDS-CH-SP-260

Call for Pricing

Price Quote Form

Refurbished
Core Exchange: Option

Repair: Not offering at this time
All our refurbished and repaired FANUC CNC products are thoroughly inspected and tested by certified repair technicians
Validity: 1 Year (Service Warranty)..

Price: (Members Only)


Availability: Usually Ships in 2 to 3 Weeks
Order #: MDS-CH-SP-260
.

Description Specifications and Drawings

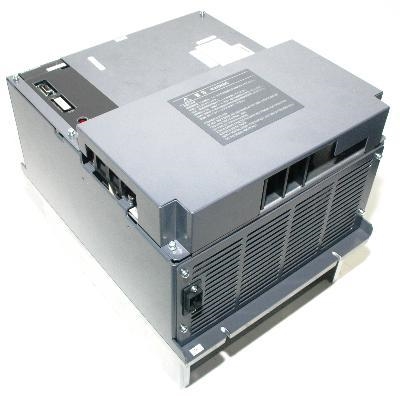

MITSUBISHI MDS-CH-SP-260 CNC Spindle drive unit.

Buy online your MITSUBISHI Electric Spindle drive unit type MITSUBISHI Electric MDS-CH-SP-260 (MDSCHSP260) for sale online. This is a MITSUBISHI Electric spindle drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor with a max output capacity of 26kW (60A rated output from the spindle drive unit).

MITSUBISHI Electric MDS-CH-SP-260 Rated input :

DC513-648V : 62A

AC380-480V : 0.1A

MITSUBISHI Electric MDS-CH-SP-260 Rated output :

3AC - 60A 340V

MITSUBISHI Spindle Drive Unit type High Voltage 400V series.

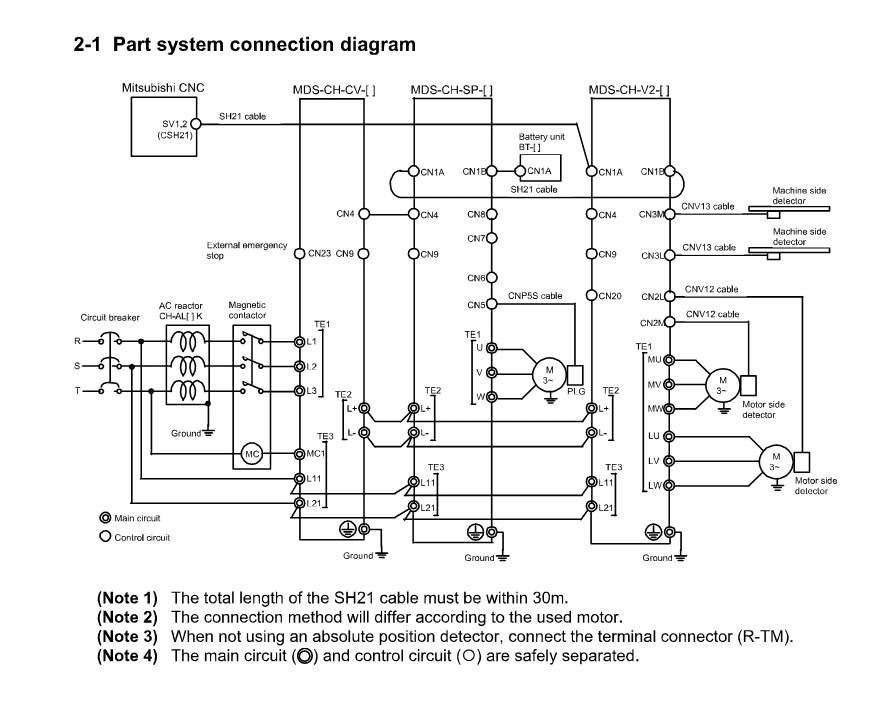

In systems which use a MITSUBISHI Electric MDS-CH-SP-260 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output (190W). Buy MITSUBISHI Spindle drive unit MDS-CH-SP-260 online.

The power supply unit capacity is determined by the motor output, and the spindle drive unit capacity is determined by the motor characteristics.
