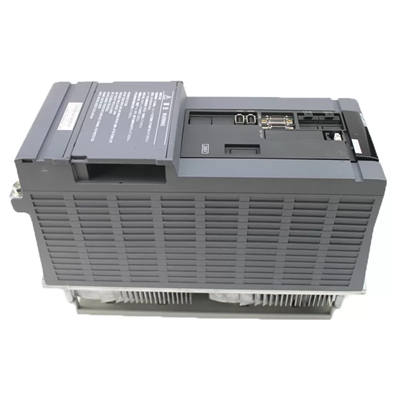

MITSUBISHI MDS-D-SP-640 CNC Spindle drive unit 640A

MITSUBISHI Electric spindle drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor with a max output capacity of 55kW (200 A rated output from the spindle drive unit).

MITSUBISHI Electric MDS-D-SP-640 Rated input :

DC270-311V : 210A

AC200-230V : 0.2A

MITSUBISHI Electric MDS-D-SP-640 Rated output : 3AC - 200A

In systems which use a MITSUBISHI Electric MDS-D-SP-640 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. cnc-shopping Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output (190W). Buy MITSUBISHI Spindle drive unit MDS-D-SP-640 online.

The power supply unit capacity is determined by the motor output, and the spindle drive unit capacity is determined by the motor characteristics..
