OMRON SCARA Robots Cobra Series
OMRON  SCARA Robots Cobra 450

Price Quote

Price: (Members Only)


Availability: Usually Ships in 2 to 4 Weeks
Order #: SCARA


Options:


Qty:
Description Specifications and Drawings


High-performance SCARA robot system for mechanical assembly, material handling, packaging, machine tending, screw driving and other applications that require fast and precise automation. Omron Adept Cobra Series robots deliver performance unmatched in the industry with the included SmartController™ motion controller.

  • ACE software deploys your applications through a user-friendly interface]
  • High-resolution, absolute encoders give you high accuracy, superior slow-speed following, and easy calibration
  • High-efficiency, low-inertia Harmonic Drives and a lightweight arm deliver maximum acceleration
  • 8 kHz servo update rate improves path following and control
  • Integrated 10/100 Base-T Ethernet TCP/IP to control the robot through a PC, PLC, or controller
  • Available options for cleanrooms and ESD to prevent static electricity during operation

Midrange Robot Series

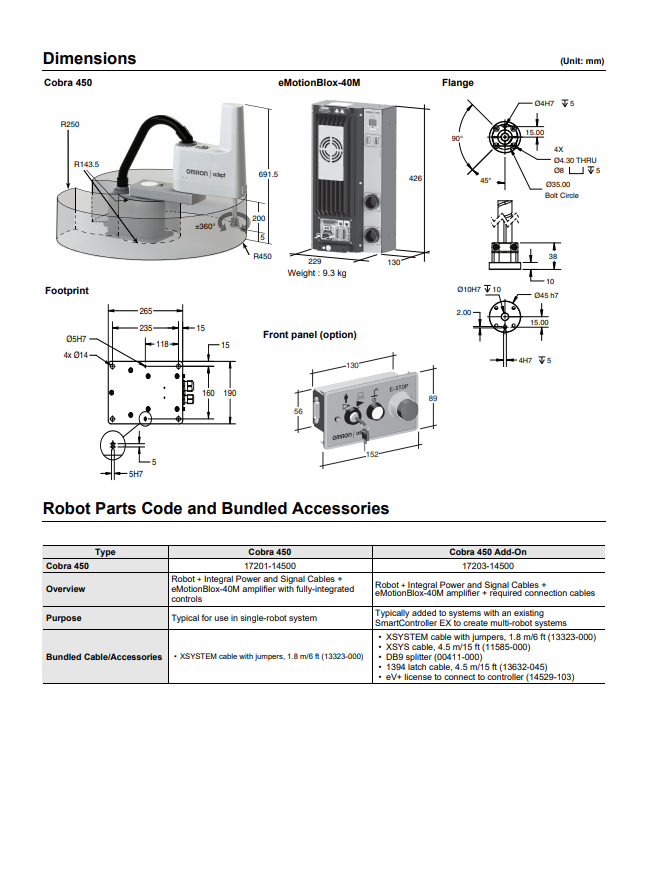

Cobra 450

  • Payload range: Rated - 2.0 kg, Maximum - 5 kg
  • Reach range: 450 mm (17.7”)
  • Number of Axis: 4

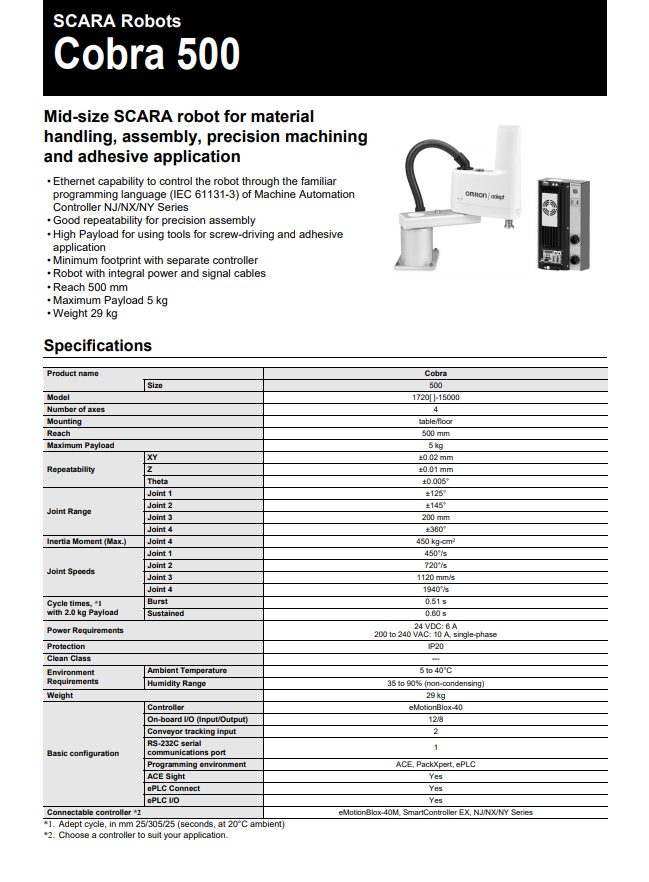

Cobra 500

  • Payload range: Rated - 2.0 kg, Maximum - 5 kg
  • Reach range: 500 mm (19.7”)
  • Number of Axis: 4

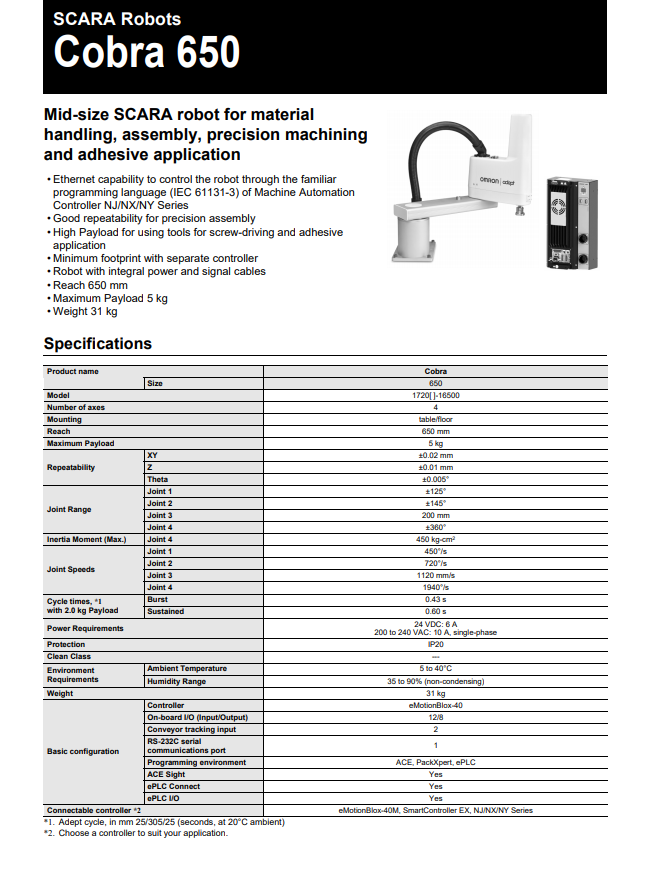

Cobra 650

  • Payload range: Rated - 2.0 kg, Maximum - 5 kg
  • Reach range: 650 mm ( 25.6”)
  • Number of Axis: 4

Adept Cobra
