FANUC: POWER MATE E CONTROL
POWER MATE E CONTROL, TYPE: A02B-0168-B012

Alternate View

Refurbished.
Core Exchange: Option

Repair: Not offering at this time
All our refurbished and repaired FANUC CNC products are thoroughly inspected and tested by certified repair technicians
Validity: 1 Year (Service Warranty).

Price: (Members Only)


Availability: Usually Ships in 2 to 3 Weeks
Order #: A02B-0168-B012
Qty:

Description Specifications and Drawings


FANUC: POWER MATE E CONTROL
Part Number: A02B-0168-B012
Product Series: A02B-0168

POWER MATE- E

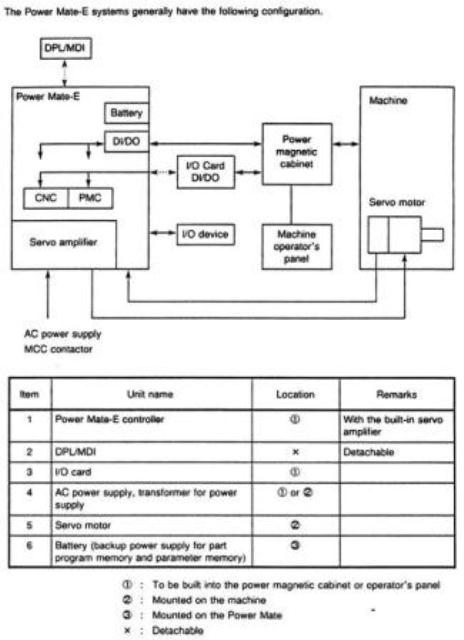

The combined control unit and servo amplifier can easily be built in the power magnetics cabinet on the machine.

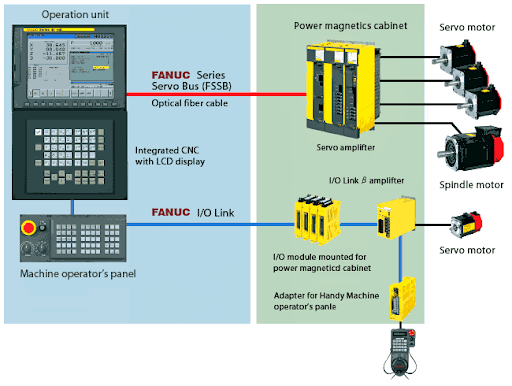

The incorporated slave function for the FANUC I/O Link enables the Power Mate-E to be controlled by other CNC units or cell controllers. Together with E series servo motors, the Power Mate-E controls peripheral units of machine tools, such as an automatic tool changer (ATC), turret, and loader.

Features:

· SERVO CONTROL

· 5 AMP

· 250 V

· POWER MATE E CONTROL

Special Note: PARAMETERS AND LADDER MUST BE LOADED
