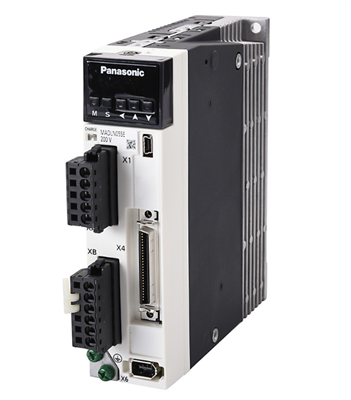

Panasonic: AC Servo Driver MINAS A6 Series MADLN05SG
Panasonic: AC Servo Driver MINAS A6 Family MADLN05SG

Alternate View

Price: (Members Only)


Availability: Usually Ships in 1 to 2 Weeks
Order #: MADLN05SG
Qty:

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Driver MADLN05SG

MINAS A6 Series, 200V


Panasonic's MINAS A6 family is the latest motion and drives which feature real-time auto-tuning, which greatly reduces damage to equipment due to vibration, noise, and jitter. The MINAS A6 family assures stable operation by suppressing effects of the load to a minimum using adaptive load control which is ideal for robot motions where workload changes from moment to moment, regardless of arm posture or position.


Features:

  • MINAS A6 Series, A Frame

  • Max. current rating: 6A

  • Single/3-phase

  • 200V, Load

  • RS485 Communication Type: Pulse train only/ MODBUS

  • Rated Output Power: 50/100W
